Epson EB-W06 Service Manual

EB-E01 series Disassembly and Assembly INTERNAL USE ONLY
SEIKO EPSON 136 Revision A

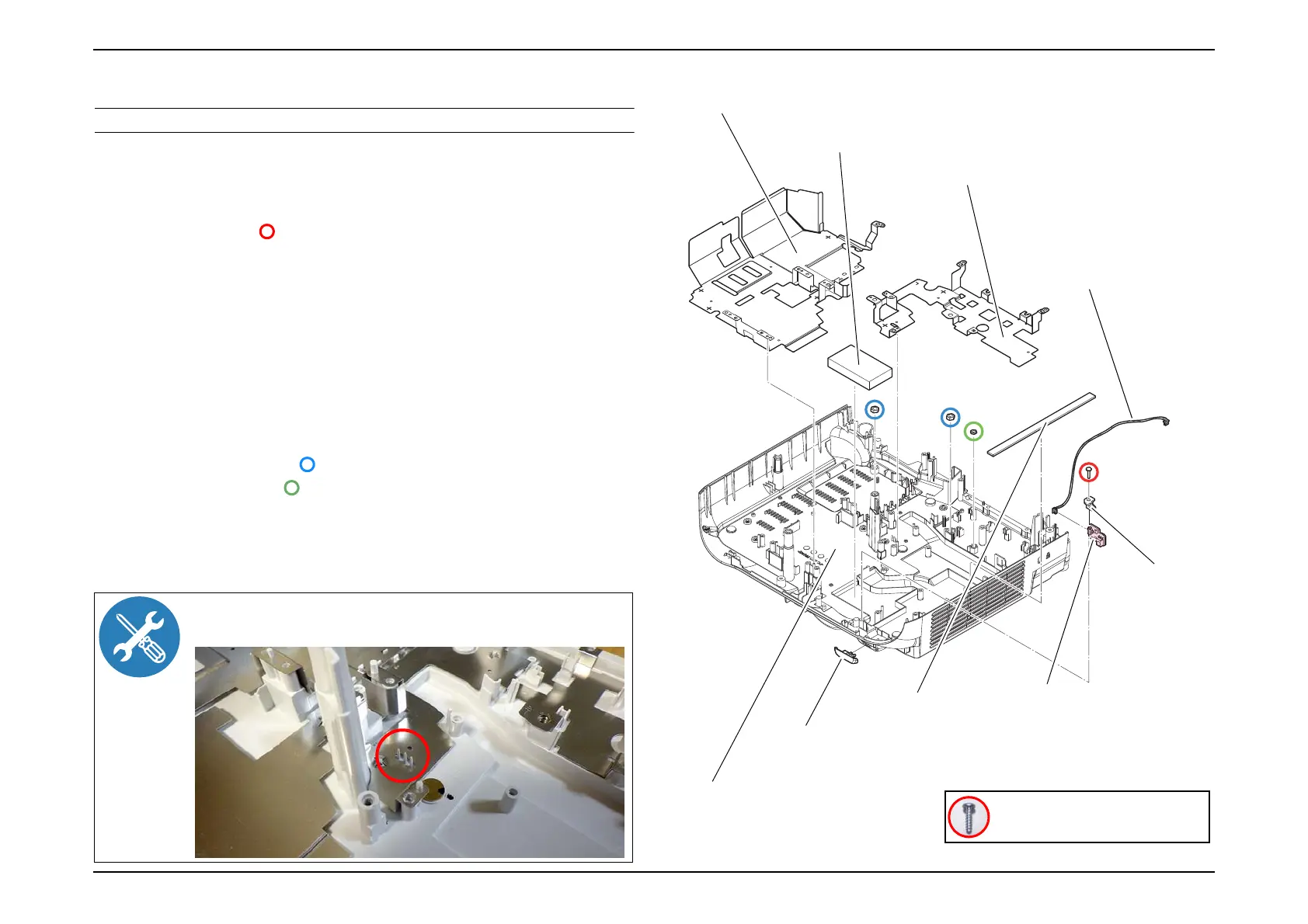

3.3.18 Lower Case/IR Board
DISASSEMBLY PROCEDURE
1. See Flowchart (p70) and remove all parts up to the component below from
the projector.
Filter Boards (p135)
2. Remove the screw ( ) and remove the following parts:
(EB-FH52/972/982W/992F)
 PS Holder
 IR Board
 RCF Cable
3. Remove the following parts from the "Lower Case".
 Lower Shield Plate A
 Lower Shield Plate B
 RC Filter
 6N-A,4,B/NI x2 pcs ( )
 H.N.-3,3,F/ZN-3C( )
EB-FH52/972/982W/992F only
 Lower Cushion Seal
 Lower Cushion
Be careful while routing as the parts shown in the figure
are easily breakable.
IR Board
RCF Cable
Lower Shield Plate A
Lower Shield Plate B
RC Filter
PS Holder
Lower Cushion Seal
Lower Case
Lower Cushion
C.B.P-TITE SCREW,2.5X10,F/ZN-3C

Epson EB-W06 Specifications

General

Contrast Ratio	16, 000:1
Weight	2.5 kg
Projection System	3LCD
Aspect Ratio	16:10
Projection Ratio	1.30 - 1.56:1
Screen Size	33 inches - 320 inches
Projection Lens F Number	1.49 - 1.72
Projection Lens Focal Length	16.9 - 20.28 mm
Projection Lens Focus	Manual
Security	Kensington lock, Password protection
3D	No
Resolution	WXGA (1280 x 800)
Brightness	3700 lumens
Lamp Life	12000 hours (Eco)
Keystone Correction	Vertical: ±30 degrees, Horizontal: ±30 degrees
Connectivity	HDMI, VGA, USB
LCD Panel	0.59-inch with MLA (D10)
Lamp	UHE, 210 W
Zoom	Factor: 1.2
Noise Level	37 dB (Normal)
Dimensions	302 x 237 x 82 mm (Width x Depth x Height)
Power Consumption	0.3 W (Standby)
