EB-E01 series Appendix INTERNAL USE ONLY
SEIKO EPSON 188 Revision A

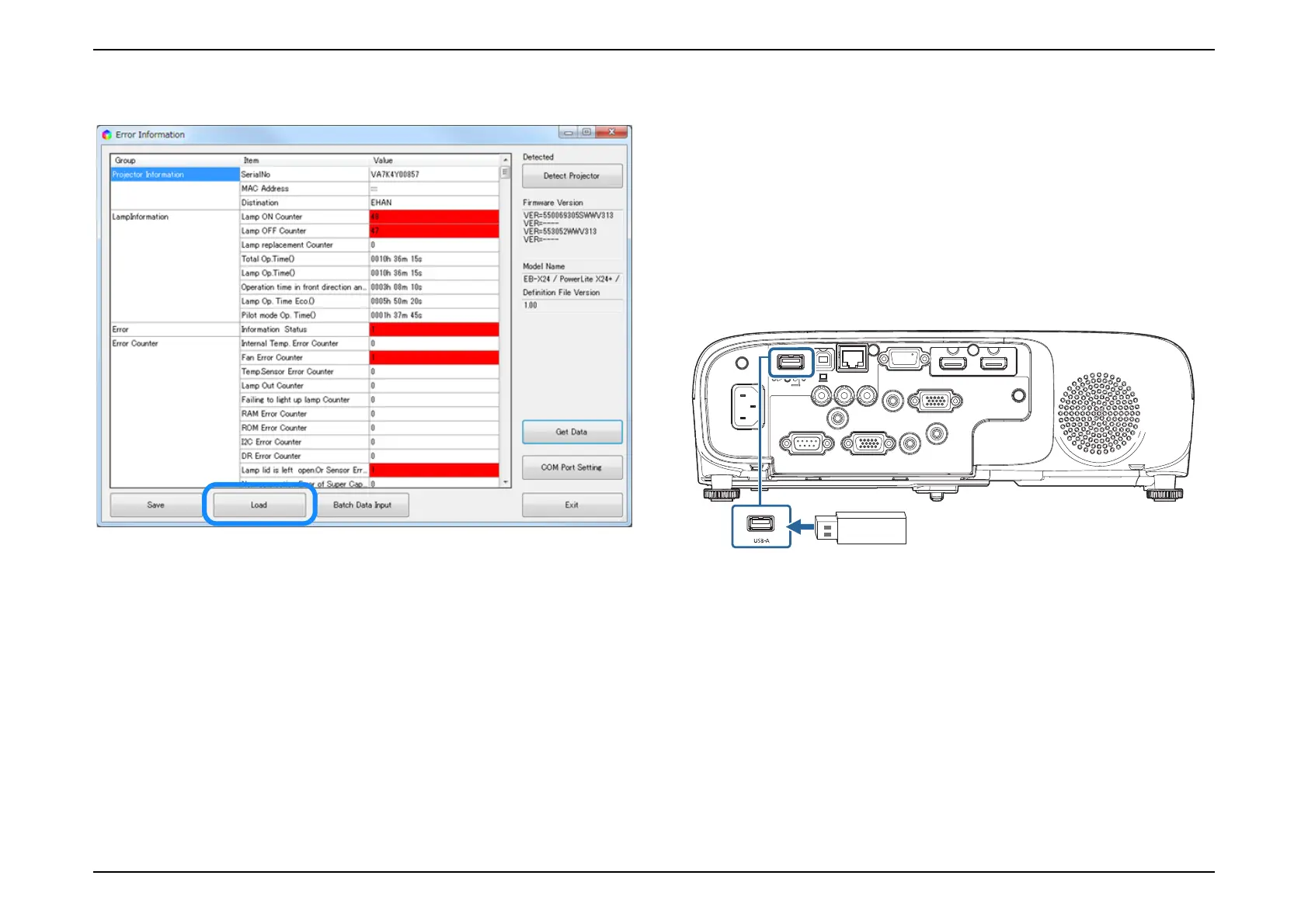

14. [Load] is clicked, you can read the preserved data from an arbitrary folder.
15. The sub screen closes when [Exit] is clicked, and the main screen is
displayed.
16. Close a main screen of a IPS tool and take out power cord of the body after
the confirmation.
4.1.2.3 Confirmation method using a USB memory
A data file of the body is preserved to a USB memory. The data in the USB
memory is confirmed using ISP Tool.
4.1.2.3.1 Acquisition method of data file
A data file of the body is preserved and acquired to a USB memory by the
following procedure.
1. Disconnect the power cord from the projector and check that all of the
indicators on the projector are off.
2. Connect a USB memory to the USB-A terminal of the projector.
3. Put power cord in the body while pressing the [Esc] button of the remote
controller.

Epson EB-W06 Specifications

General

Contrast Ratio	16, 000:1
Weight	2.5 kg
Projection System	3LCD
Aspect Ratio	16:10
Projection Ratio	1.30 - 1.56:1
Screen Size	33 inches - 320 inches
Projection Lens F Number	1.49 - 1.72
Projection Lens Focal Length	16.9 - 20.28 mm
Projection Lens Focus	Manual
Security	Kensington lock, Password protection
3D	No
Resolution	WXGA (1280 x 800)
Brightness	3700 lumens
Lamp Life	12000 hours (Eco)
Keystone Correction	Vertical: ±30 degrees, Horizontal: ±30 degrees
Connectivity	HDMI, VGA, USB
LCD Panel	0.59-inch with MLA (D10)
Lamp	UHE, 210 W
Zoom	Factor: 1.2
Noise Level	37 dB (Normal)
Dimensions	302 x 237 x 82 mm (Width x Depth x Height)
Power Consumption	0.3 W (Standby)
