Epson EB-W06 Service Manual

EB-E01 series Troubleshooting INTERNAL USE ONLY
SEIKO EPSON 54 Revision A

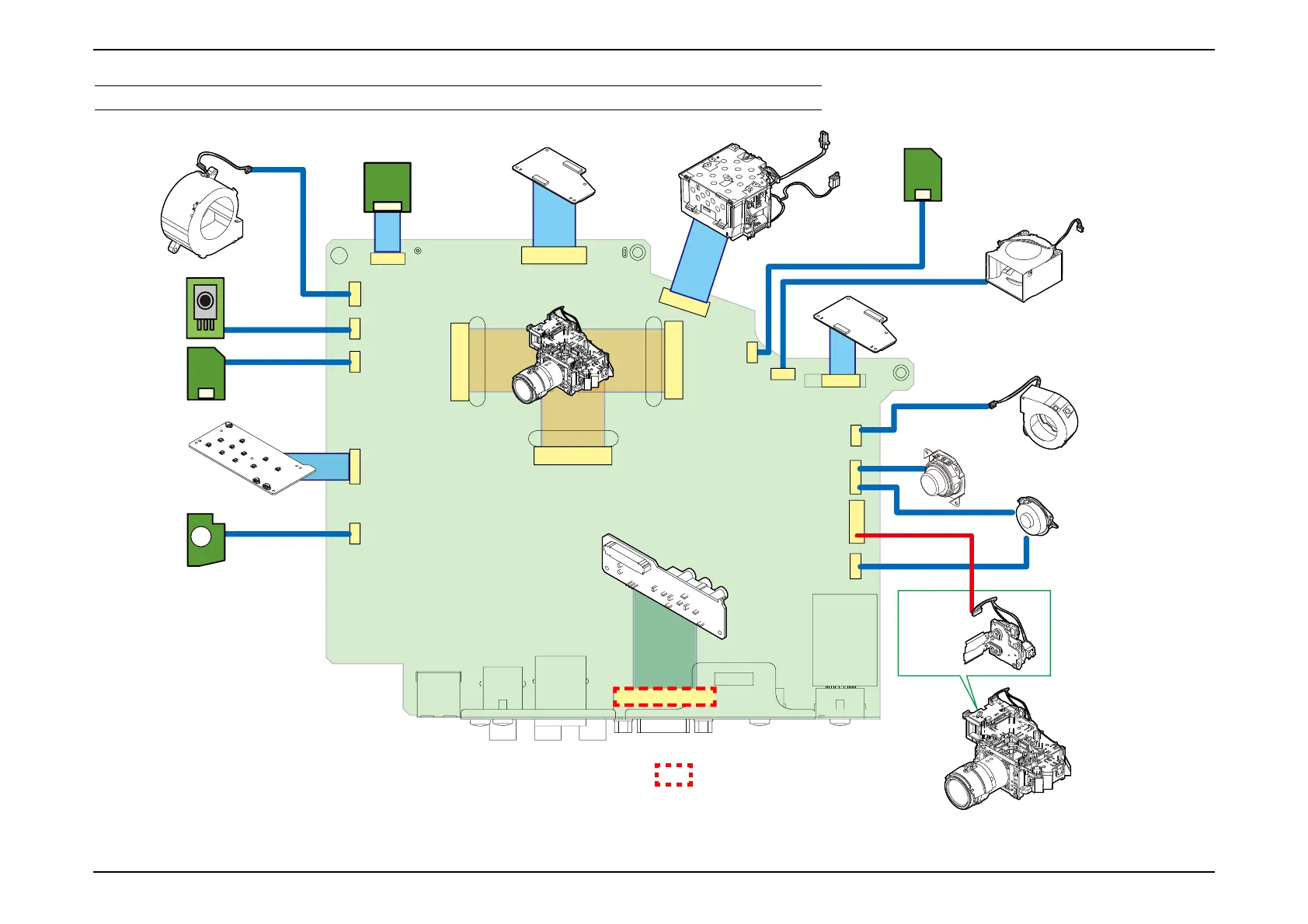

CONNECTION DIAGRAM BETWEEN BOARDS
MA
Board
Board-to-board
Air TH
RTC Board
SW Board
LMP TH
CN1600
CN1400
CN1405
CN1403
CN1602
CN501
CN3000
CN8800
CN701*
CN702*
CN8700 CN8900
CN2200
CN1603
CN500
CN1601
CN1604
IF Board
Speaker 5W*
EX Fan
WFD Board
PS Ballast Assy
WFD Board
P4Combo
Optical Engine
CN700*
Speaker 16W*
Lamp Fan
Auto Iris
Front IR
LV Fan
Indicates connector on the back side
* Speakers and connectors dif-
fer according to model.

Epson EB-W06 Specifications

General

Contrast Ratio	16, 000:1
Weight	2.5 kg
Projection System	3LCD
Aspect Ratio	16:10
Projection Ratio	1.30 - 1.56:1
Screen Size	33 inches - 320 inches
Projection Lens F Number	1.49 - 1.72
Projection Lens Focal Length	16.9 - 20.28 mm
Projection Lens Focus	Manual
Security	Kensington lock, Password protection
3D	No
Resolution	WXGA (1280 x 800)
Brightness	3700 lumens
Lamp Life	12000 hours (Eco)
Keystone Correction	Vertical: ±30 degrees, Horizontal: ±30 degrees
Connectivity	HDMI, VGA, USB
LCD Panel	0.59-inch with MLA (D10)
Lamp	UHE, 210 W
Zoom	Factor: 1.2
Noise Level	37 dB (Normal)
Dimensions	302 x 237 x 82 mm (Width x Depth x Height)
Power Consumption	0.3 W (Standby)
