Epson EB-W06 Service Manual

EB-E01 series Disassembly and Assembly INTERNAL USE ONLY
SEIKO EPSON 165 Revision A

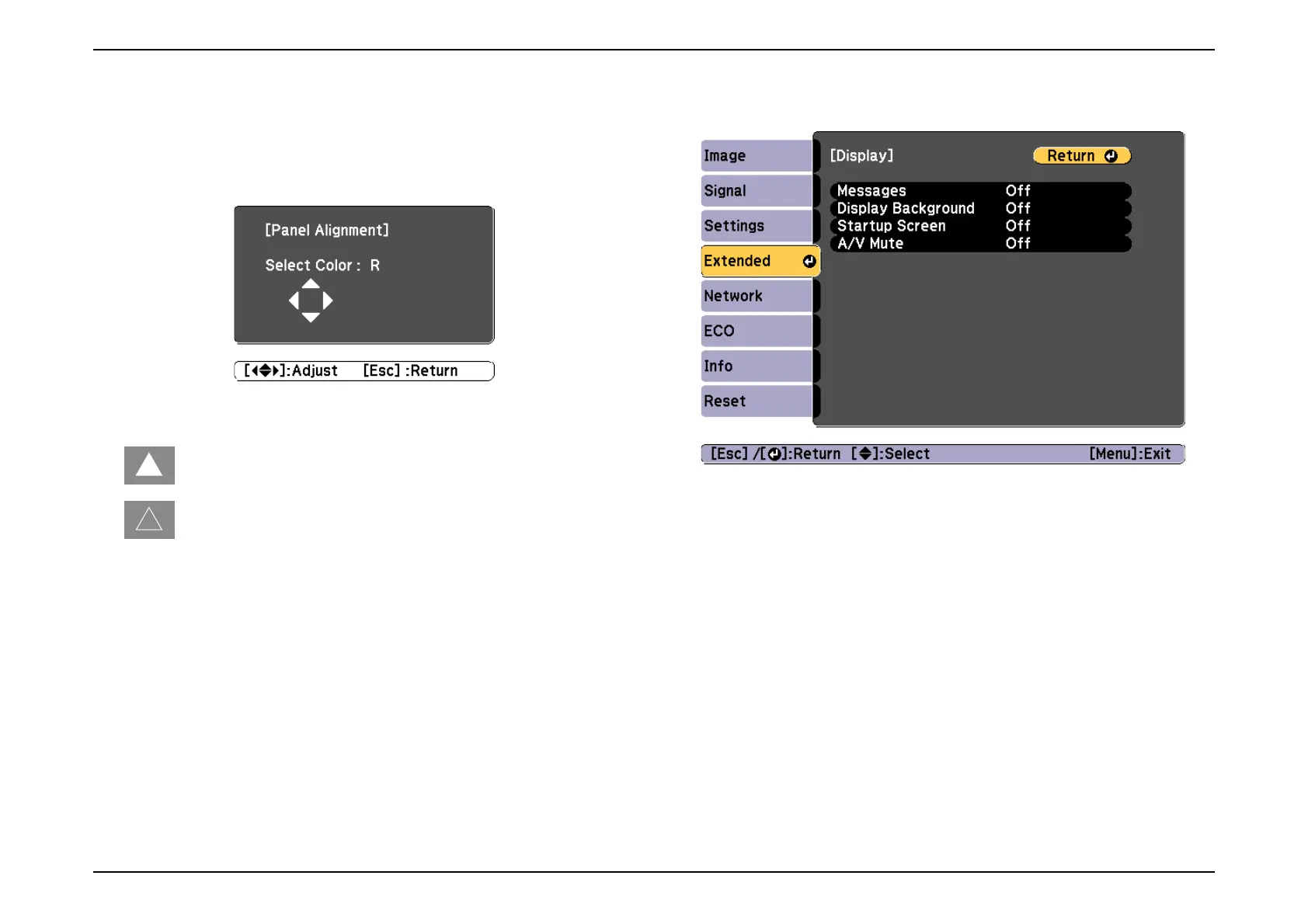

4. Select [Start Adjustment] and then press the [Enter] button.
5. Adjust using the [Up], [Down], [Left], and [Right] buttons, and press the
[Esc] button when the adjustment is complete.
(Adjustment Guide is displayed at the bottom right of the screen during
adjustment)
The color of the △ symbols in the four direction have the following
meanings.
:The state of being in the initial position (position when this
function is started)
:The state when the point of adjustment has moved to the end of
the range, and no further movement is possible in that direction.
6. Press the [Menu] button to complete the LCD Alignment.
7. According to 3.8.3 LCD alignment activation method (p162), switch
between 1 and 0 for Bit 5 of DIP-SW 6.
8. Close the software DIP-SW by pressing the [Menu] button.
9. Restart the projector to reflect the changes in settings.
10. After restarting the projector, press the [Menu] button.
11. Select [Enlargement Settings] and then press the [Enter] button.
12. Select [Display Settings] and then press the [Enter] button.
13. Check that [LCD Alignment] is not displayed on the Display Settings
screen.

Epson EB-W06 Specifications

General

Contrast Ratio	16, 000:1
Weight	2.5 kg
Projection System	3LCD
Aspect Ratio	16:10
Projection Ratio	1.30 - 1.56:1
Screen Size	33 inches - 320 inches
Projection Lens F Number	1.49 - 1.72
Projection Lens Focal Length	16.9 - 20.28 mm
Projection Lens Focus	Manual
Security	Kensington lock, Password protection
3D	No
Resolution	WXGA (1280 x 800)
Brightness	3700 lumens
Lamp Life	12000 hours (Eco)
Keystone Correction	Vertical: ±30 degrees, Horizontal: ±30 degrees
Connectivity	HDMI, VGA, USB
LCD Panel	0.59-inch with MLA (D10)
Lamp	UHE, 210 W
Zoom	Factor: 1.2
Noise Level	37 dB (Normal)
Dimensions	302 x 237 x 82 mm (Width x Depth x Height)
Power Consumption	0.3 W (Standby)
