Epson EB-W06 Service Manual

EB-E01 series Disassembly and Assembly INTERNAL USE ONLY
SEIKO EPSON 112 Revision A
 EH-TW750

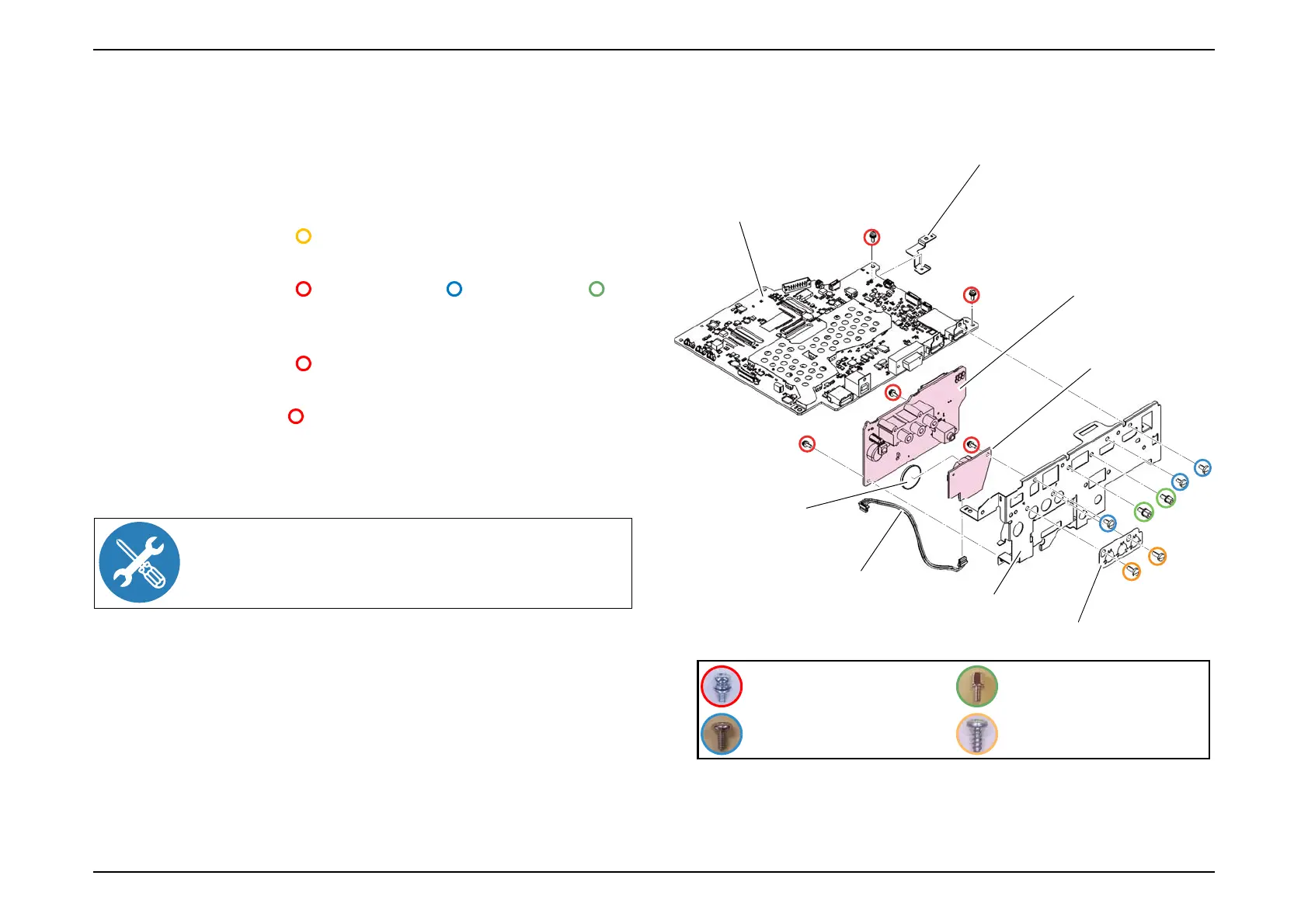

1. See Flowchart (p70) and remove all parts up to the component below from
the projector.
MA Board Assy (p100)
2. Disconnect the connectors of the "RTC Cable H980" from the "MA Board
(Assy)".
3. Remove the two screws ( ) and remove the "Conduction Plate 3RCA"
from the "MA Frame".
4. Remove the two screws ( ), the three screws ( ), the two screws ( ),
and remove the "MA Frame" and the "Fasten Plate MA-PS" from the "MA
Board (Assy)".
5. Remove the two screws ( ) and remove the "IF Board" from the "MA
Board (Assy)".
6. Remove the one screw ( ) and remove the "RTC Board" from the "MA
Frame".
7. Remove the "RTC Cable H980" and the "Lithium Battery" from the "RTC
Board".
When replacing the "RTC Board" or "Lithium Battery"
for repairs, refer to RTC Board (p.97) for configuration or
replacement.
MA Board Assy
IF Board
MA Frame
Conduction Plate 3RCA
RTC Board
RTC Cable H980
Fasten Plate MA-PS
C.B.SCREW,3X6,F/NI
C.P.(S-P1)SCREW,2.5X6,F/ZN-3C 1/4-40X1/4,H.H.,F/NI,O SCREW
C.B.P-TITE SCREW,3X8,F/ZN-3C
Lithium Battery

Epson EB-W06 Specifications

General

Contrast Ratio	16, 000:1
Weight	2.5 kg
Projection System	3LCD
Aspect Ratio	16:10
Projection Ratio	1.30 - 1.56:1
Screen Size	33 inches - 320 inches
Projection Lens F Number	1.49 - 1.72
Projection Lens Focal Length	16.9 - 20.28 mm
Projection Lens Focus	Manual
Security	Kensington lock, Password protection
3D	No
Resolution	WXGA (1280 x 800)
Brightness	3700 lumens
Lamp Life	12000 hours (Eco)
Keystone Correction	Vertical: ±30 degrees, Horizontal: ±30 degrees
Connectivity	HDMI, VGA, USB
LCD Panel	0.59-inch with MLA (D10)
Lamp	UHE, 210 W
Zoom	Factor: 1.2
Noise Level	37 dB (Normal)
Dimensions	302 x 237 x 82 mm (Width x Depth x Height)
Power Consumption	0.3 W (Standby)
