Epson EB-W06 Service Manual

EB-E01 series Disassembly and Assembly INTERNAL USE ONLY
SEIKO EPSON 124 Revision A

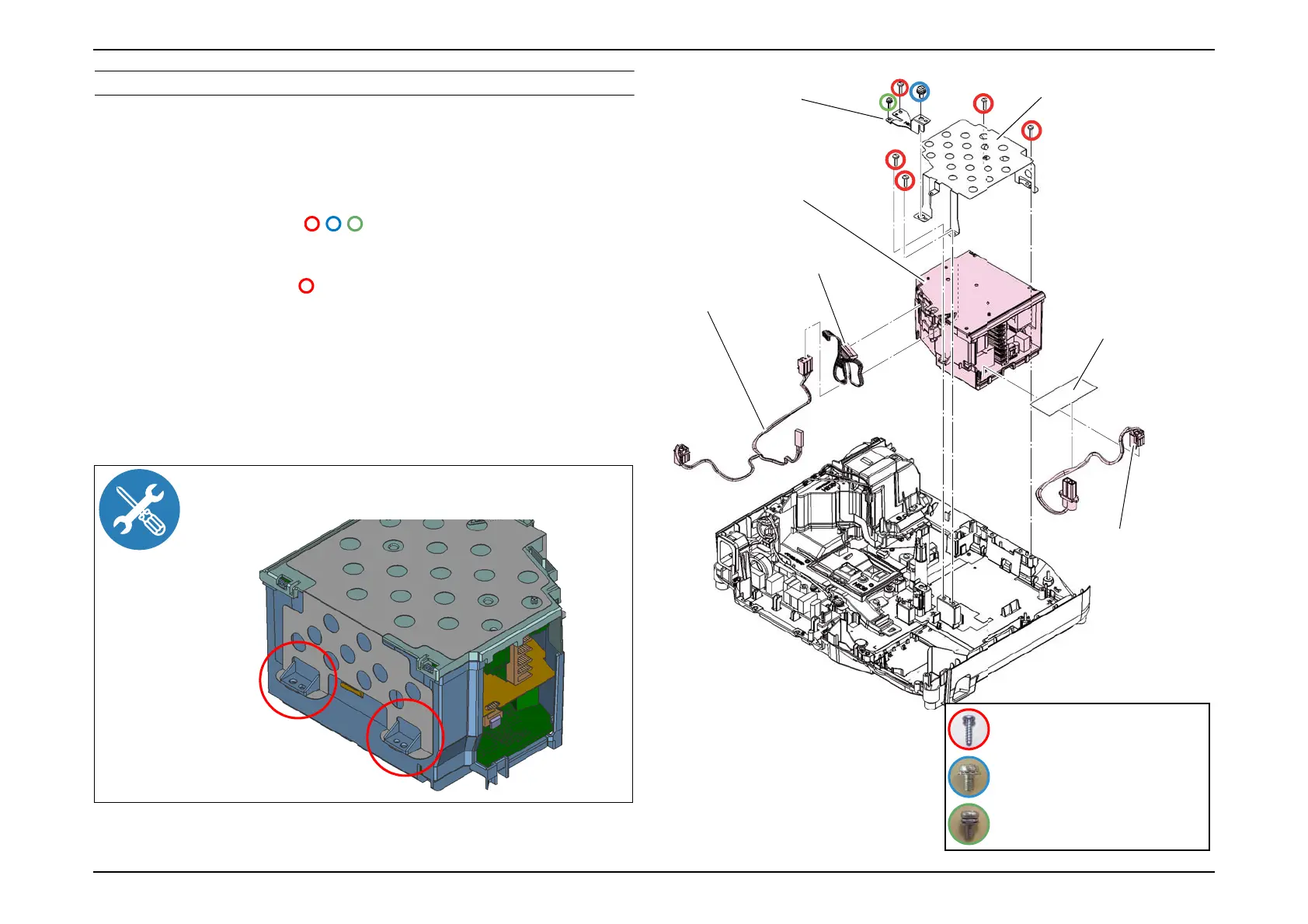

DISASSEMBLY PROCEDURE
 EB-E01/X06/W06/E10/X51/W51/W52
1. See Flowchart (p70) and remove all parts up to the component below from
the projector.
Lamp Fan (Assy) (p120)
2. Remove the three screws ( / / ) and remove the "Fasten Nut Plate".
3. Remove the "Lower Sheet".
4. Remove the four screws ( ) and remove the "PS Ballast Assy" while the
"PS Shield Plate" is still attached.
5. Remove the following parts from the "PS Ballast Assy".
 PS Shield Plate
 Cable PS-MA
 Cable PS-FB
 Cable BA-Lamp
Attach the "PS Shield Plate" so that it covers the "PS
Ballast Assy" as shown in the figure below.
PS Ballast Assy
Lower Sheet
PS Shield Plate
Cable PS-MA
Cable PS-FB
Cable BA-Lamp
Fasten Nut Plate
C.P.(S-P1)SCREW,3X5,F/ZN-3C
C.P.(O)SCREW,4X6,F/NI
C.B.P-TITE SCREW,2.5X10,F/ZN-3C

Epson EB-W06 Specifications

General

Contrast Ratio	16, 000:1
Weight	2.5 kg
Projection System	3LCD
Aspect Ratio	16:10
Projection Ratio	1.30 - 1.56:1
Screen Size	33 inches - 320 inches
Projection Lens F Number	1.49 - 1.72
Projection Lens Focal Length	16.9 - 20.28 mm
Projection Lens Focus	Manual
Security	Kensington lock, Password protection
3D	No
Resolution	WXGA (1280 x 800)
Brightness	3700 lumens
Lamp Life	12000 hours (Eco)
Keystone Correction	Vertical: ±30 degrees, Horizontal: ±30 degrees
Connectivity	HDMI, VGA, USB
LCD Panel	0.59-inch with MLA (D10)
Lamp	UHE, 210 W
Zoom	Factor: 1.2
Noise Level	37 dB (Normal)
Dimensions	302 x 237 x 82 mm (Width x Depth x Height)
Power Consumption	0.3 W (Standby)
