Epson EB-W06 Service Manual

EB-E01 series Disassembly and Assembly INTERNAL USE ONLY
SEIKO EPSON 155 Revision A
2. Checking the MA Board
Check the following on the MA Board.

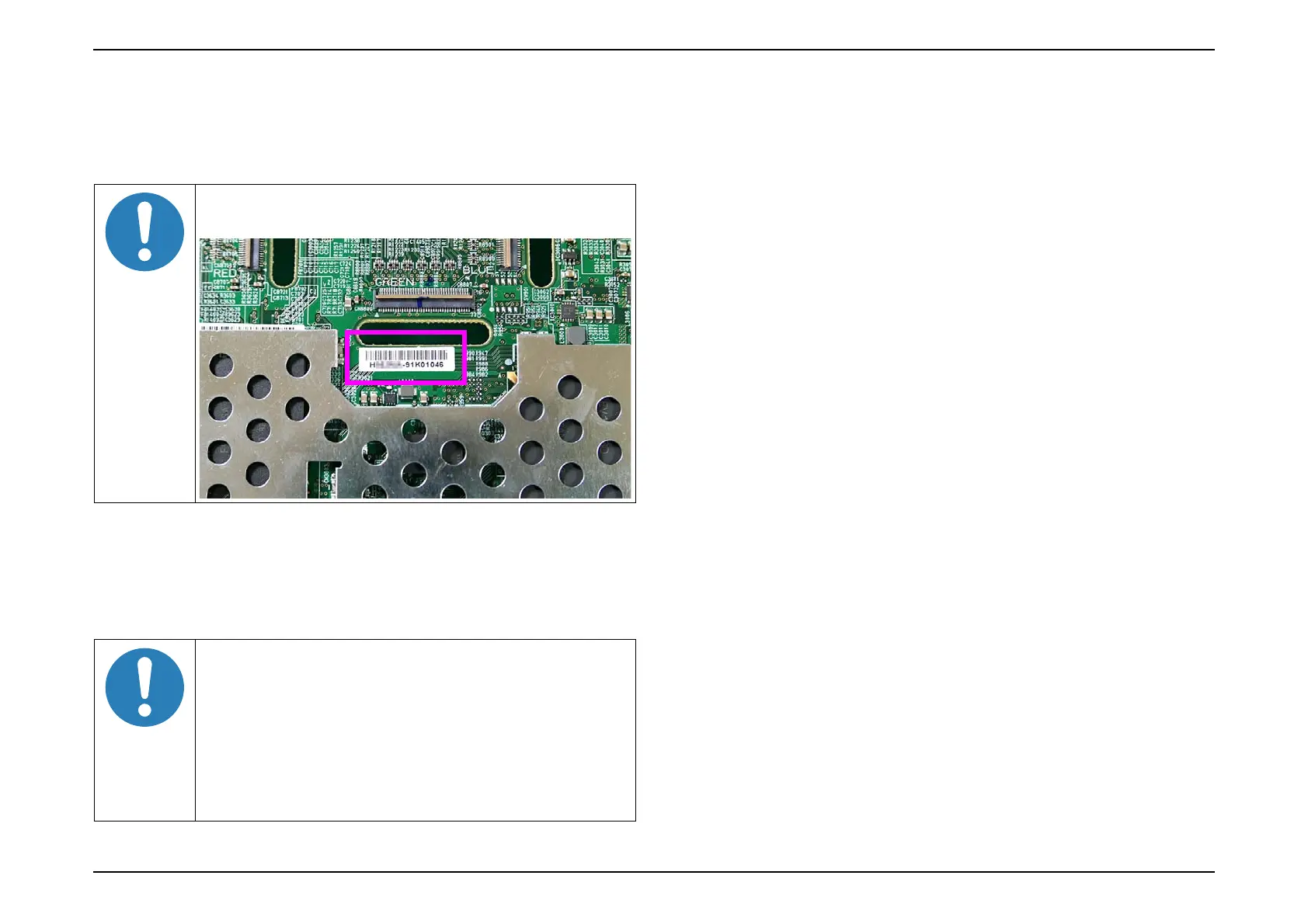

 Check the label attached on the MA Board for the current model.
 Confirm the check marks in the marking box.
3. Checking the model group list
Refer to the Technical Information "AP08-0912E" and obtain the latest
model group list, then check which group the current MA Board belongs
to.
4. Locating the trouble (Engine/MA Board)
Prepare both a good engine and an MA board, and check either of the
engine or the MA board has trouble by changing it with the good one.
"Hxxxx-xxxxxxxx" is printed on the label. The three or
four digits after "H" indicate the current model.
 Make sure the group is correct since even among the
same model projectors, various MA Boards may be
used.
 Even if 3-digit number; "HHH" of serial number
indicated on a label attached to the optical engine;
"FYMHHHNNNN", is different, this engine can be
used as the same type of optical engine as long as the
parts compatibility is maintained.

Epson EB-W06 Specifications

General

Contrast Ratio	16, 000:1
Weight	2.5 kg
Projection System	3LCD
Aspect Ratio	16:10
Projection Ratio	1.30 - 1.56:1
Screen Size	33 inches - 320 inches
Projection Lens F Number	1.49 - 1.72
Projection Lens Focal Length	16.9 - 20.28 mm
Projection Lens Focus	Manual
Security	Kensington lock, Password protection
3D	No
Resolution	WXGA (1280 x 800)
Brightness	3700 lumens
Lamp Life	12000 hours (Eco)
Keystone Correction	Vertical: ±30 degrees, Horizontal: ±30 degrees
Connectivity	HDMI, VGA, USB
LCD Panel	0.59-inch with MLA (D10)
Lamp	UHE, 210 W
Zoom	Factor: 1.2
Noise Level	37 dB (Normal)
Dimensions	302 x 237 x 82 mm (Width x Depth x Height)
Power Consumption	0.3 W (Standby)
