Epson EB-W06 Service Manual

EB-E01 series Appendix INTERNAL USE ONLY
SEIKO EPSON 172 Revision A

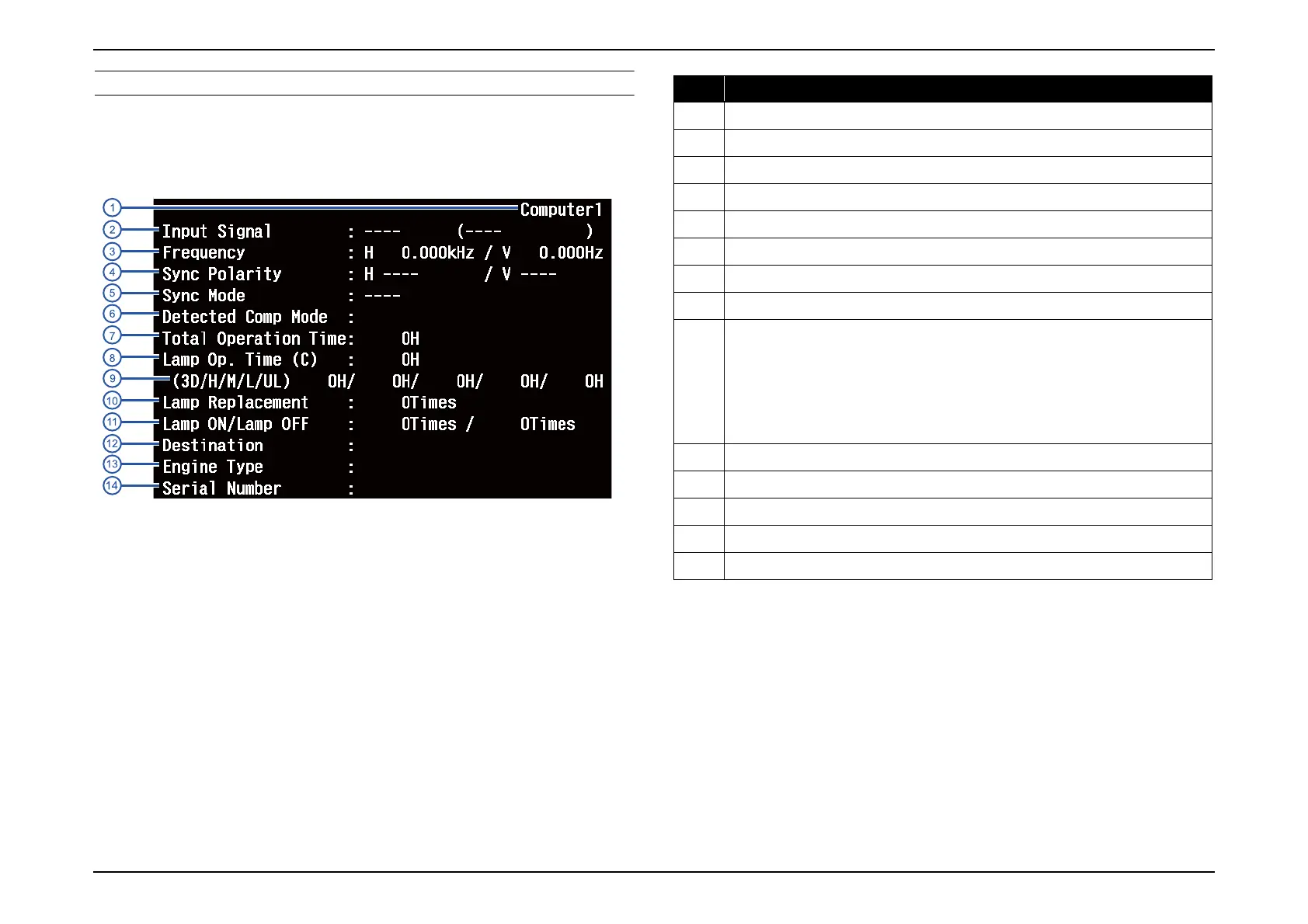

AS MENU: 1ST PAGE
The general operational history of the projector is displayed. The contents
displayed on the screen vary depending on the input source.
 PC/HDMI
No. Item
1 Current input source
2 Set value and detected value of the input signal
3 Horizontal/Vertical frequency
4 Horizontal/Vertical synchronization polarity
5 Synchronization mode
6 Detected computer mode
7 Total lamp operation time
8 Lamp operation time (converted into low brightness operation)
9
Lamp operation time of each brightness
3D: 3D image
H: High-intensity mode
M: Low noise mode
L: Low-intensity mode
UL: Ultra-low-intensity mode
10 Lamp replacement times
11 Lamp ON/OFF times
12 Destination
13 Type of optical engine
14 Serial number

Epson EB-W06 Specifications

General

Contrast Ratio	16, 000:1
Weight	2.5 kg
Projection System	3LCD
Aspect Ratio	16:10
Projection Ratio	1.30 - 1.56:1
Screen Size	33 inches - 320 inches
Projection Lens F Number	1.49 - 1.72
Projection Lens Focal Length	16.9 - 20.28 mm
Projection Lens Focus	Manual
Security	Kensington lock, Password protection
3D	No
Resolution	WXGA (1280 x 800)
Brightness	3700 lumens
Lamp Life	12000 hours (Eco)
Keystone Correction	Vertical: ±30 degrees, Horizontal: ±30 degrees
Connectivity	HDMI, VGA, USB
LCD Panel	0.59-inch with MLA (D10)
Lamp	UHE, 210 W
Zoom	Factor: 1.2
Noise Level	37 dB (Normal)
Dimensions	302 x 237 x 82 mm (Width x Depth x Height)
Power Consumption	0.3 W (Standby)
