Parallel interface (forward channel)
Transmission mode:
g-bit parallel, IEEE-P1284 compatibility
mode
Adaptable connector:
57-30360 (Amphenol) or equivalent
synchronization: STROBE pulse
Handshaking:
BUSY and ACKNLG signals
Signal level:
TTL compatible (IEEE-P1284 level 1 device)

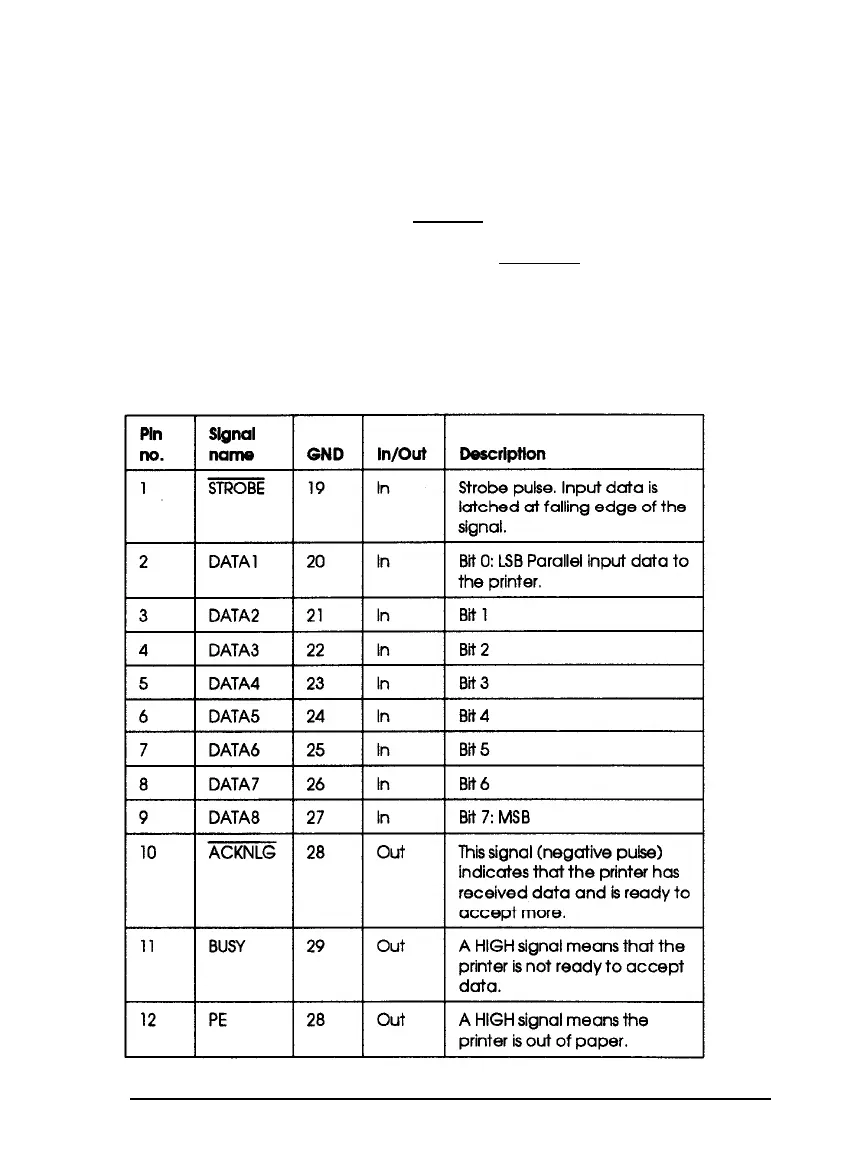

The following table lists the parallel connector pi” assignments and
describes their respective interface signals.
Specifications, Command Summary, and Character Tables
A-13
