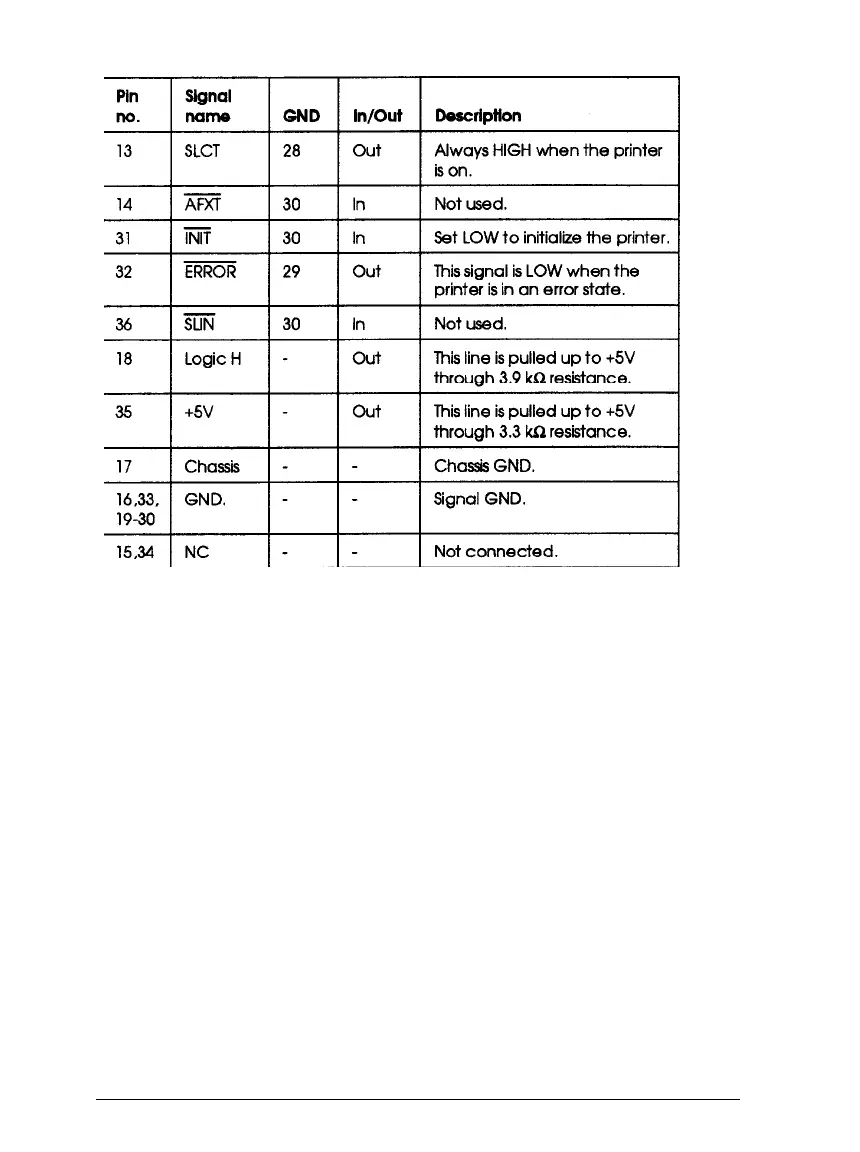

*In/Out shows the direction of signal flow as viewed from the printer.
Parallel interface (reverse channel)
Transmission mode:
IEEE-P1284 nibble mode
Adaptable connector:
57-30360 (Amphenol) or equivalent
synchronization: Refer to the IEEE-P1284 specification
Handshaking:
Refer to the IEEE-P1284 specification
Signal level:
IEEE-P1284
level 1 device
Data transmission
timing:
Refer to the IEEE/P1284 specification
A-14
Specifications, Command Summary, and Character Tables
