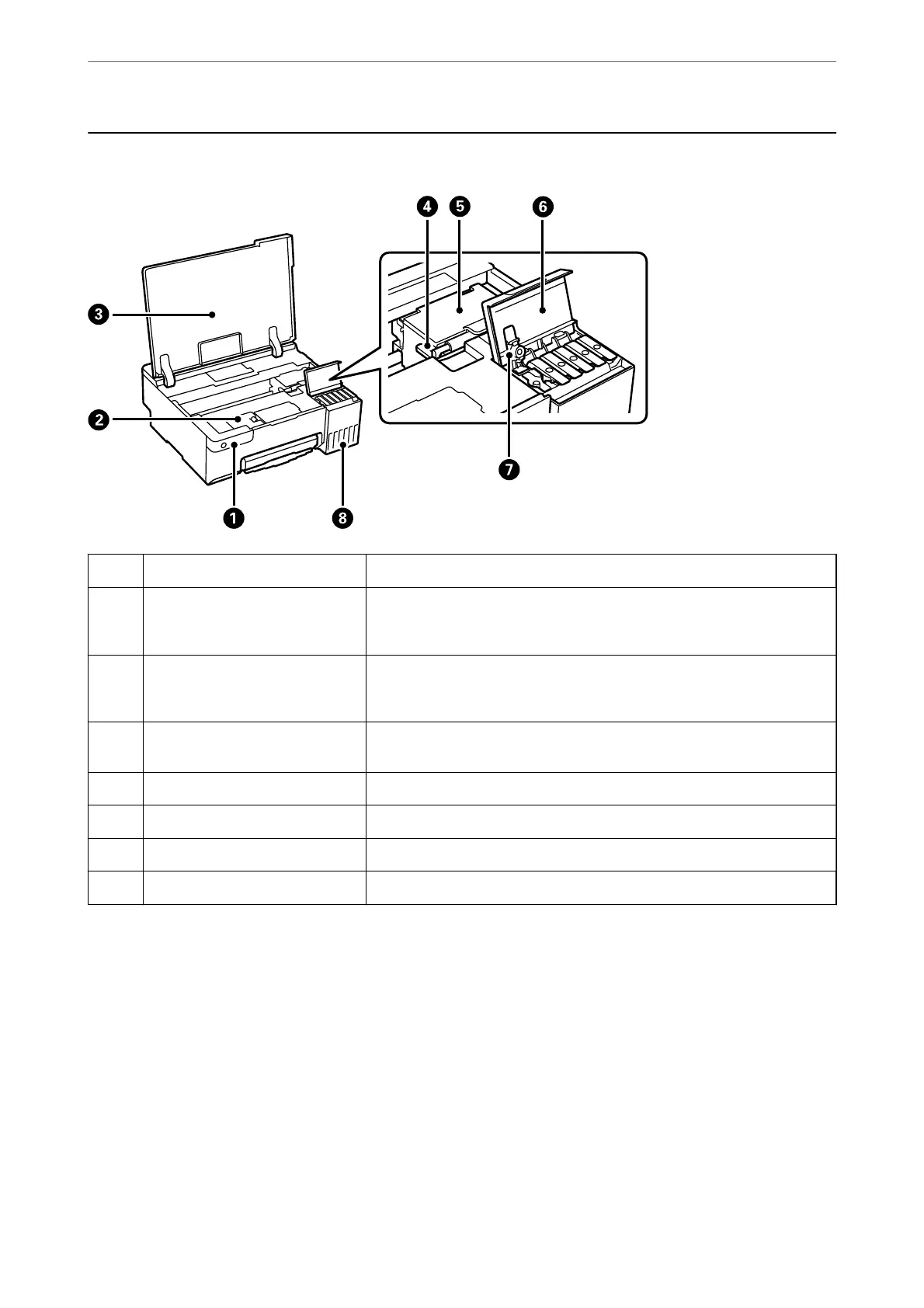

Inside
A
Control panel Operates the printer.
B
Maintenance box cover Open when replacing the maintenance box. The maintenance box is a
container that collects a very small amount of surplus ink during cleaning or
printing.
C
Printer cover Open to rell the ink tank or to remove jammed paper. Keep this cover closed
while the printer is not in use to prevent foreign substances from entering
the printer.
D
Transportation lock Stops ink supply. Set to the locked (Transport) position when transporting
the printer.
E
Print head Ink is ejected from the print head nozzles underneath.
F
Ink tank cover Open to rell the ink tank.
G
Ink tank cap Open to rell the ink tank.
H
Ink tank Supplies ink to the print head.
