EPSON Stylus CX4300/CX4400/CX5500/CX5600/DX4400/DX4450 Revision A

TROUBLESHOOTING Troubleshooting 44

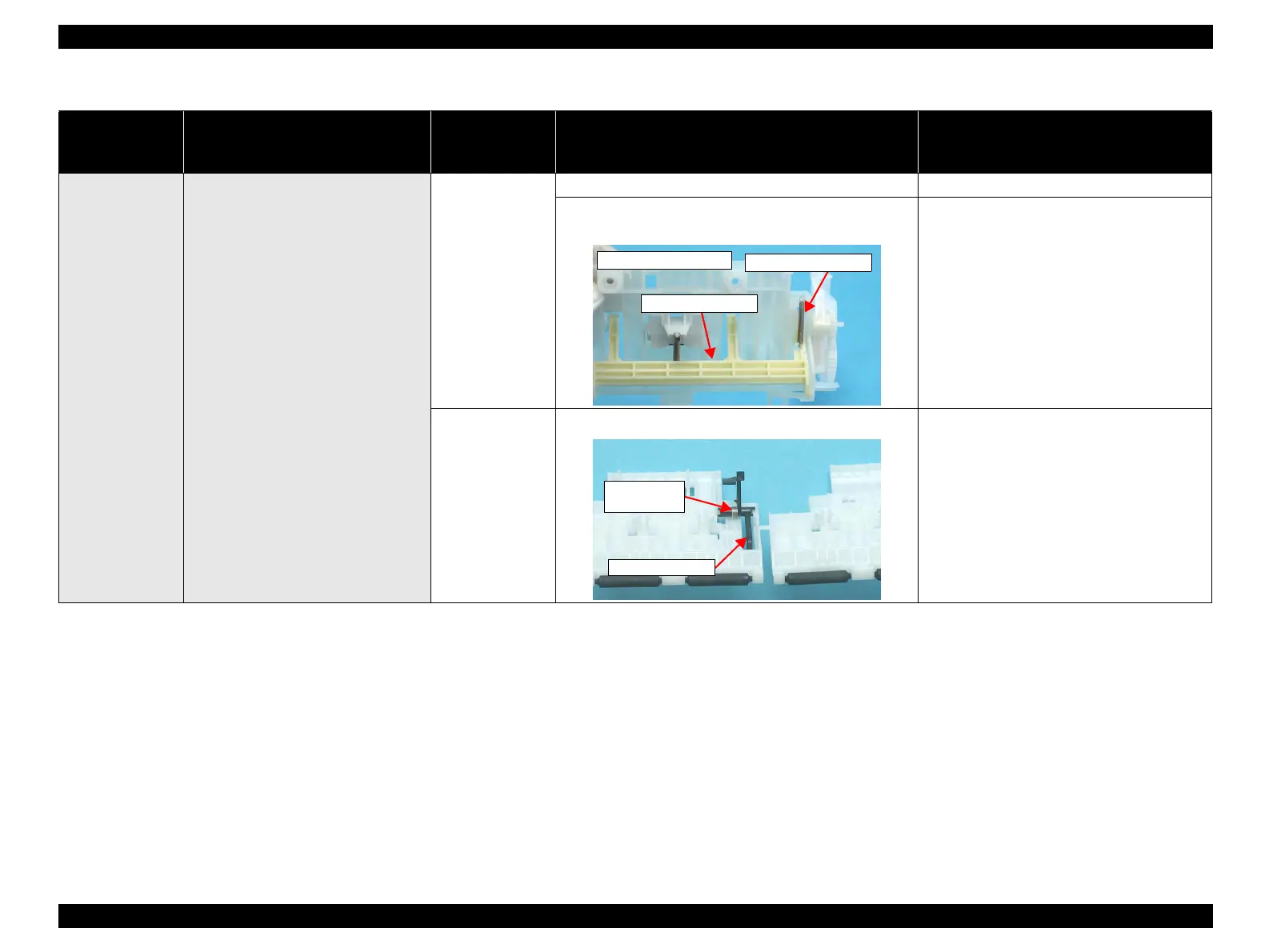

Table 3-11. Check point for paper jam error according to each phenomenon

Occurrence

timing

CR position

Detailed phenomenon

Defective

unit/part name

Check point Remedy

• Operation

•Outside HP

The paper feeding sequence is

performed without loading paper in the

paper loading sequence.

ASF Unit

1. Check if the ASF Unit is properly installed. 1. Install the ASF Unit properly.

2. Check if the Paper Back Lever operates correctly in the

paper loading sequence.

2. Set the Torsion Spring 6.45 between the ASF

Frame and the Paper Back Lever.

Paper Guide Upper

Unit

1. Check if the Torsion Spring 0.22 is properly installed. 1. Set the Torsion Spring 0.22 between the

Holder Shaft and the PE Sensor Lever.

Paper Back Lever

Torsion Spring 6.45

Back side of ASF Unit

PE Sensor Lever

Torsion

Spring 0.22
