EPSON Stylus CX4300/CX4400/CX5500/CX5600/DX4400/DX4450 Revision A

TROUBLESHOOTING Troubleshooting 43

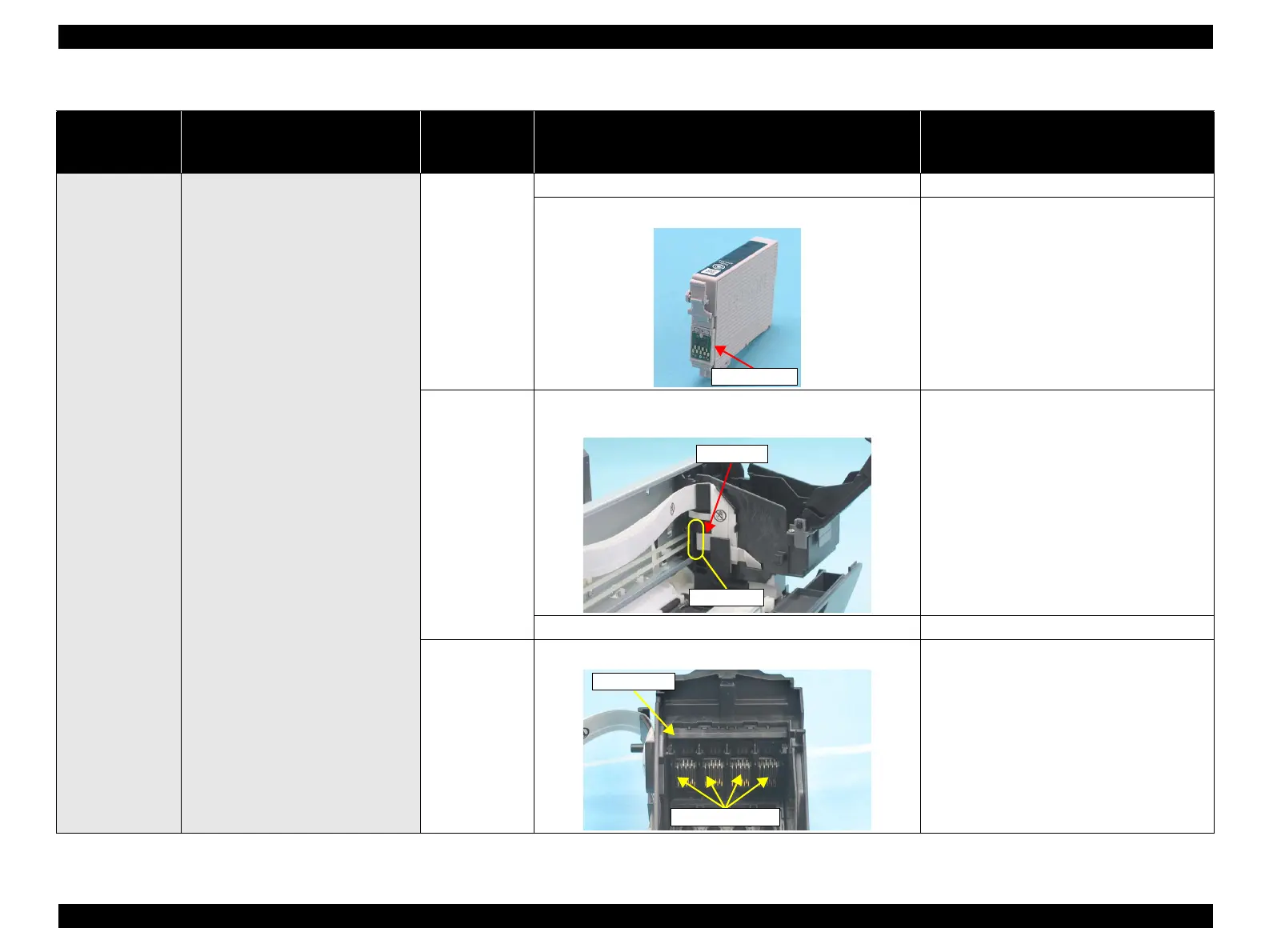

Table 3-10. Check point for no ink cartridge/CSIC error/incorrect ink cartridge according to each phenomenon

Occurrence

timing

CR position

Detailed phenomenon

Defective

unit/part name

Check point Remedy

• Power on

•Inside HP

After the Carriage has detected the HP,

an error is displayed.

Ink Cartridge

1. Check if Ink Cartridge is properly installed. 1. Install the Ink Cartridge properly.

2. Check if the Memory Chip is not disconnected or not chipped. 2. Replace the Ink Cartridge with a new one.

CSIC Board

1. Check if the Head FFC is connected to connector on the CSIC

Board.

1. Connect the Head FFC to connector on the

CSIC Board.

2. Check if the CSIC Board is not damaged. 2. Replace the Carriage Unit with a new one.

CSIC Connector

1. Check if the CSIC Connector is not damaged. 1. Replace the Carriage Unit with a new one.

Memory Chip

Connector

Head FFC

CSIC Connectors

CSIC Board
