EPSON Stylus CX4300/CX4400/CX5500/CX5600/DX4400/DX4450 Revision A

TROUBLESHOOTING Troubleshooting 42

• Operation

•–

The drive of the PF Motor is not

transmitted to the LD Roller Shaft.

ASF Unit

1. Check if the Compression Spring 2.36 does not come off

in the Change Lever.

1. Replace the ASF Unit with a new one.

• Operation

•–

The LD Roller is not set to the ASF

home position and paper is always

loaded from the ASF Unit during the

paper loading sequence.

ASF Unit

1. Check if the tip of the Change Lever is not damaged. 1. Replace the ASF Unit with a new one.

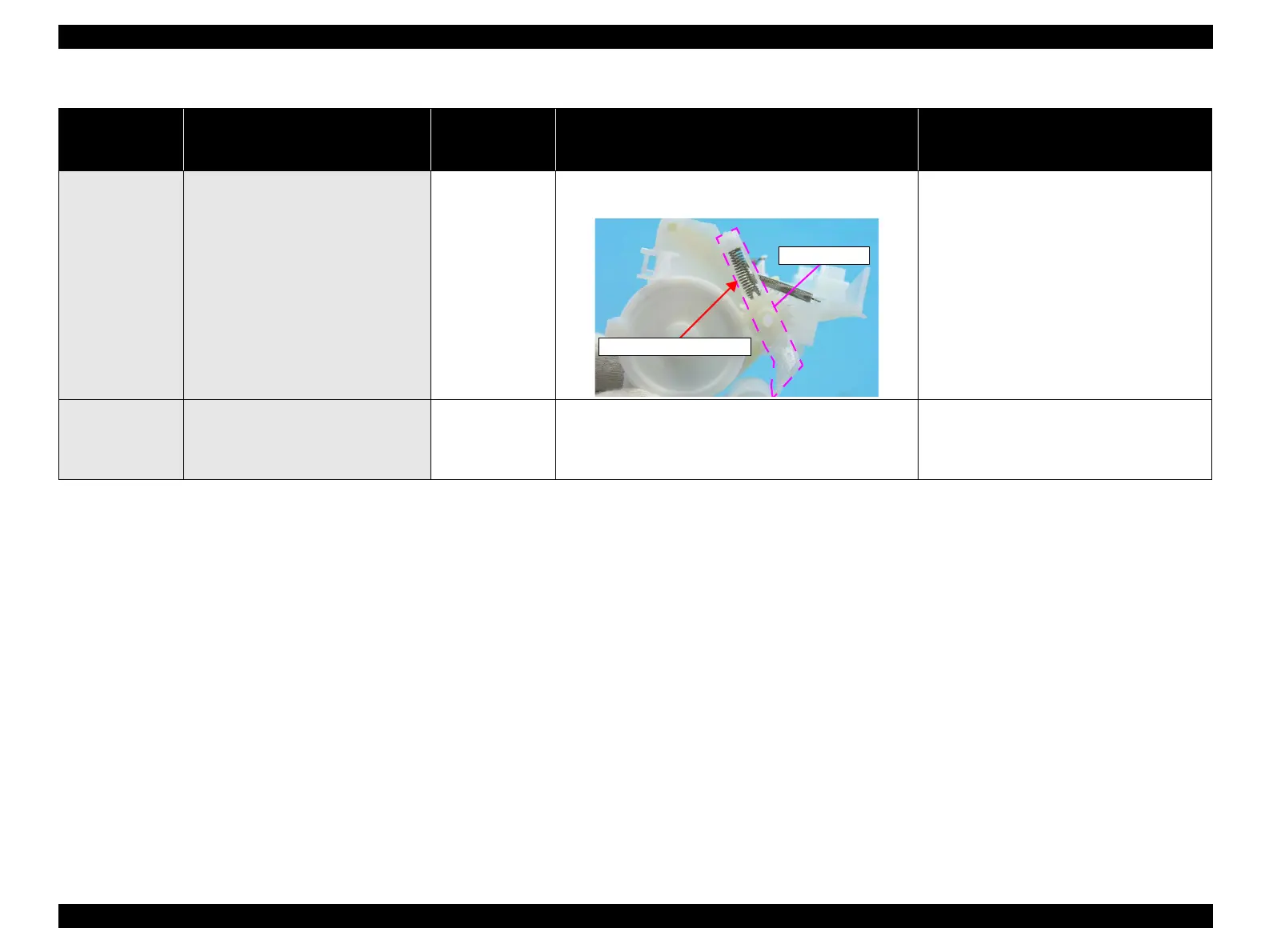

Table 3-9. Check point for paper out error according to each phenomenon

Occurrence

timing

CR position

Detailed phenomenon

Defective

unit/part name

Check point Remedy

Change Lever

Compression Spring 2.36
