EPSON Stylus CX4300/CX4400/CX5500/CX5600/DX4400/DX4450 Revision A

TROUBLESHOOTING Troubleshooting 41

• Operation

•–

The drive of the PF Motor is not

transmitted to the LD Roller Shaft.

ASF Unit

1. Check if the Extension Spring 0.143 does not come off in

the Clutch mechanism.

1. Reassemble the Extension Spring 0.143 in the

Clutch mechanism.

2. Check if the positioning hole of the Clutch does not come

off from the guide pin of the LD Roller Shaft.

2. Reassemble the positioning hole of the Clutch

on the guide pin of the LD Roller Shaft.

3. Check if the Clutch tooth is not damaged. 3. Replace the ASF Unit with a new one.

4. Check if the Clutch is not damaged. 4. Replace the ASF Unit with a new one.

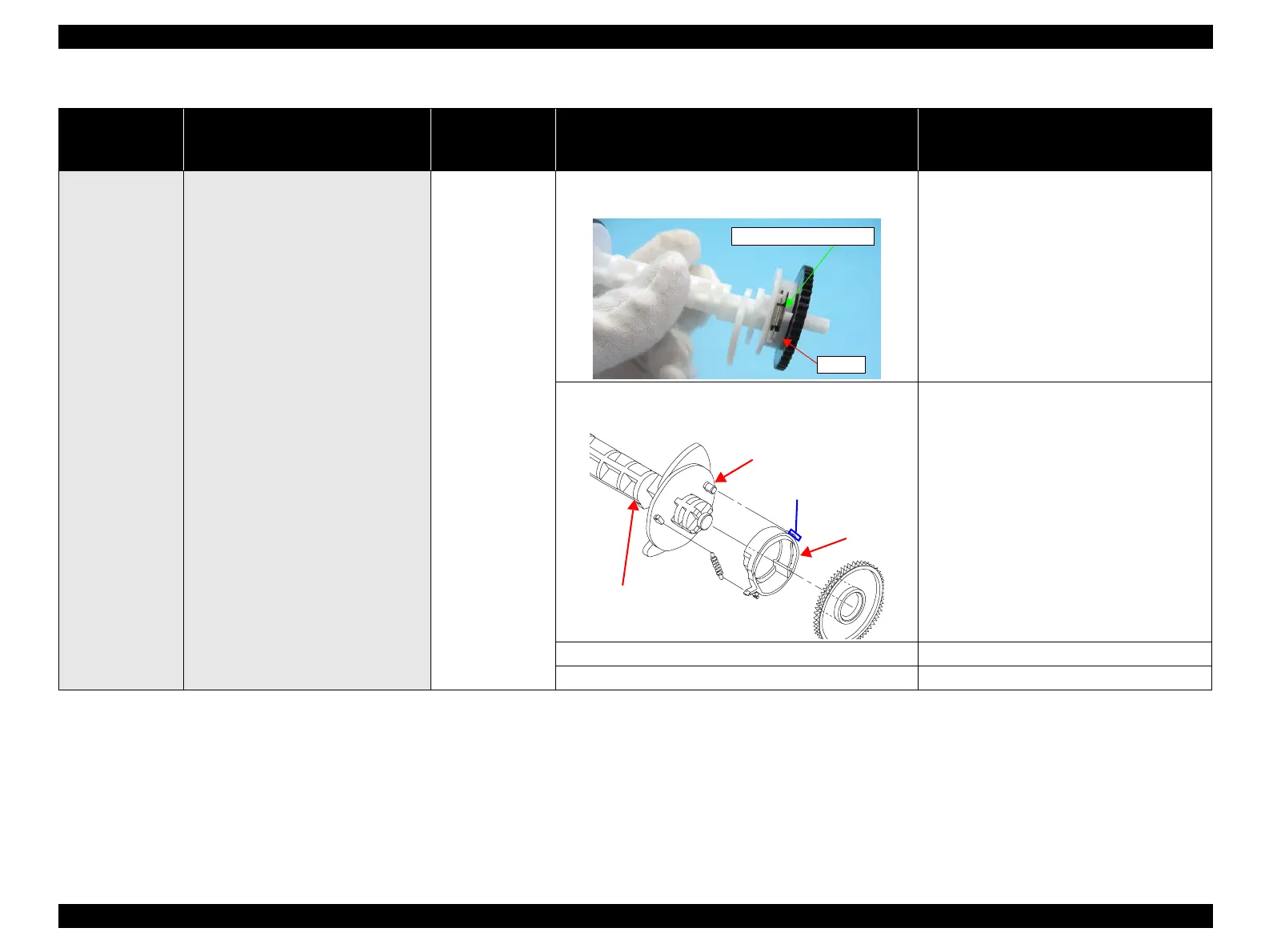

Table 3-9. Check point for paper out error according to each phenomenon

Occurrence

timing

CR position

Detailed phenomenon

Defective

unit/part name

Check point Remedy

Extension Spring 0.143

Clutch

LD Roller Shaft

Guide pin

Positioning hole
