EPSON Stylus CX4300/CX4400/CX5500/CX5600/DX4400/DX4450 Revision A

TROUBLESHOOTING Troubleshooting 47

Table 3-12. Check point for fatal error according to each phenomenon

Occurrence

timing

CR position

Detailed phenomenon

Defective

unit/part name

Check point Remedy

• Power on

•Anywhere

The Scanner Unit does not initialize

when the power is turned on.

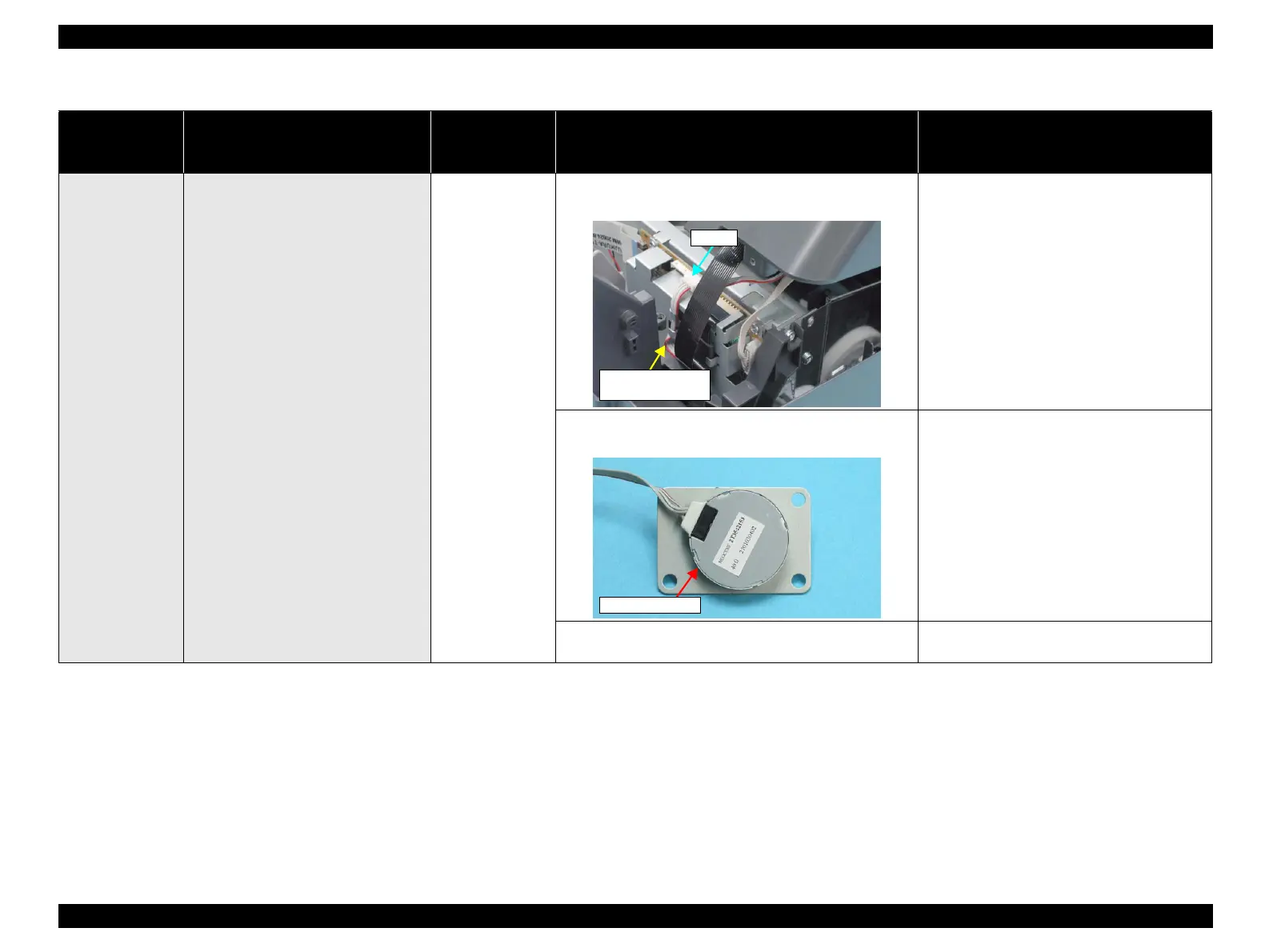

Scanner Motor

1. Check if the Scanner Motor Connector Cable is

connected to J6 on the Main Board.

1. Connect the Scanner Motor Connector Cable

to J6 on the Main Board.

2. Check if the coil resistance of the Scanner Motor is about

37Ω (T.B.D.) by using the tester (refer to Table 3-1).

2. Replace the Scanner Motor with a new one.

3. Check if the Scanner Motor Connector Cable is not

damaged.

3. Replace the Scanner Motor with a new one.

Scanner Motor

Connector Cable

Scanner Motor
