Epson TM-C3400 Reference Guide

242 pages

To Next Page

To Next Page

To Previous Page

To Previous Page

Page #14 background image

Loading...

Page #14 background image

14

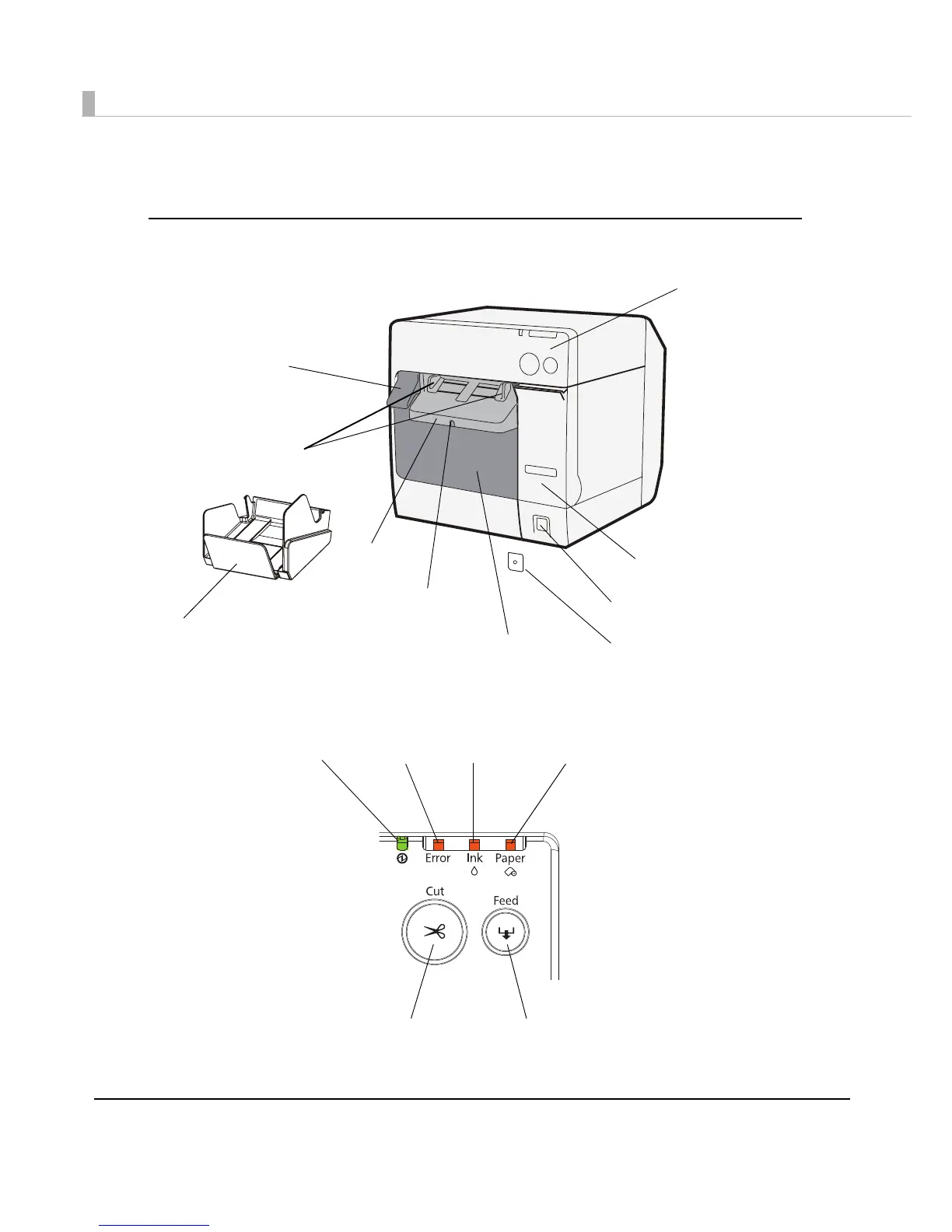

Parts Name and Function

Front

Control panel

Roll paper cover

Power switch

Paper ejection

table

Ink cartridge cover

Release lever

Paper ejection

guide

Paper ejection

tray

Control panel

Paper ejection

guide lock

Power switch cover

Power LED

FEED button

Error LED Ink LED

Paper LED

CUT button

Table of Contents

Default Chapter1
- Product Overview1
For Safety3
- Key to Symbols3
- Warnings4
- Cautions5
Restriction of Use5
About this Manual6
- Aim of the Manual6
- Manual Content6
Contents7
- Table of Contents7
Product Overview11
Features11
Product Configuration13
- Interface13
- Color13
- Accessories13
Parts Name and Function14
- Power Switch16
- Power Switch Cover16
- Button17
- Led17
- Connectors18
- Paper Ejection Tray18
Status/Error Indications19
Post-Printing Verification Settings21
- When an Unrecoverable Missing Dot Occurs24
Software26
Product Specifications27
- Hardware Requirements29
- Printing Specifications30
- Paper Specifications31
- Print Area and Cutting Position45
- Paper Ejection Tray53
- Ink Cartridge53
- Electrical Characteristics54
- Reliability55
- Environmental Conditions56
- External Dimensions57
- Power Supply Unit (PS-180)58
Restrictions59
Setup61
- When You Use this Printer for the First Time61
- Flow of Setup63
- Installing the Printer64
- Important Notes on Installation64
- Connecting the Power Supply Unit (PS-180)65
- Connecting the AC Cable65
- Loading/Replacing the Ink Cartridge66
- Connecting the Printer to the Host Computer68
- For USB Interface Model68
- For Ethernet Interface Model69
- Installing the Driver70
- Installation Using Easy Setup70
- For Ethernet Interface Model72
- Setting the DIP Switches77
- Setting Procedure77
- Function of the DIP Switches78
- Loading/Replacing the Paper79
- Loading/Replacing the Roll Paper79
- Loading/Replacing Fanfold Paper89
Chapter 2 Setup90
- Removing the Paper90
Application Development Information131
- Overview131
- Printer Driver131
- Sample Program132
- Epsonnet SDK134
- Environmental Setting for Epsonnet SDK134
- Utilities and Manuals136
- Download138
- Usb Replacement Service138
Printer Driver and Utility Function List139
- Network Setting of the Printer140
- Setting the Printer144
- Acquiring Printer Status146
Application Specification to Develop147
- Character Size to Print147
- Print Barcode / 2D Symbol Data on the Graphic Data148
- When Extremely High Reliability and Safety Are Required148
Handling149
Replacing the Ink Cartridge149
Replacing the Paper151
- Replacing the Roll Paper151
- Replacing the Fanfold Paper153
Ejection Angle of Printed Paper156
Removing Jammed Paper157
- For Roll Paper157
- For Fanfold Paper158
How to Use the Printer Driver160
- How to Display the Printer Driver160
- Registering User Defined Media161
- Favorite Setting162
- Information for User Definition165
- Barcode Printing166
- 2D Symbol Font Settings179
- Barcode and 2D Symbol Font Printing on .NET Environment186
- Functions of the Printer Driver188
Uninstalling the Printer Driver195
Setting Check Modes198
- Self-Test Mode198
- Status Sheet Printing (Ethernet Interface Model Only)200
Head Cleaning201
- Manual Head Cleaning201
- Manual Head Cleaning During Printing201
- Nozzle Check202
Cleaning the Autocutter203
Changing the Interface for Ethernet Model204
Removing the AC Adapter206
- Installing the AC Adapter207
Troubleshooting208
- Lighting and Flashing the Error LED208
Preparing for Transport208
Chapter 5 Maintenance of the TM-C3400209
Necessary Information for an Administrator of the Printer210
- Printer Driver Functions210
- Destination for the Printer Driver Setting211
- Printer Setting212
- Installing Multiple Printer Drivers in One Client Computer214
- Using One Network Printer with Multiple Client Computers218
- Upgrading the Printer Driver218
- Printer Driver Cannot be Installed (Windows 2000)219
- Printer Driver Is Already Installed (Windows 2000)219
Distributing the Printer Driver and Setting the Printer220
- Utility220
- Preparation for the Administrator221
- Setup Procedure225
- Examples of Usage227
Maintenance236
- Adding a Client Computer (for the Ethernet Interface Model)236
  - Adding a Client Computer (for Ethernet Interface Model)236
- Adding a Printer237
  - Adding a Printer (Without Adding Paper)237
- Adding a Paper Type/Changing the Print Setting238
- Replacing the Printer238
Managing the Printer241
- Monitoring the Network Printer241
For Inquiries242

Other manuals for Epson TM-C3400

User Manual30 pages

Technical Reference Guide236 pages

Printing Manual10 pages

Brochure & Specs8 pages

Start Here2 pages

Install Guide17 pages
