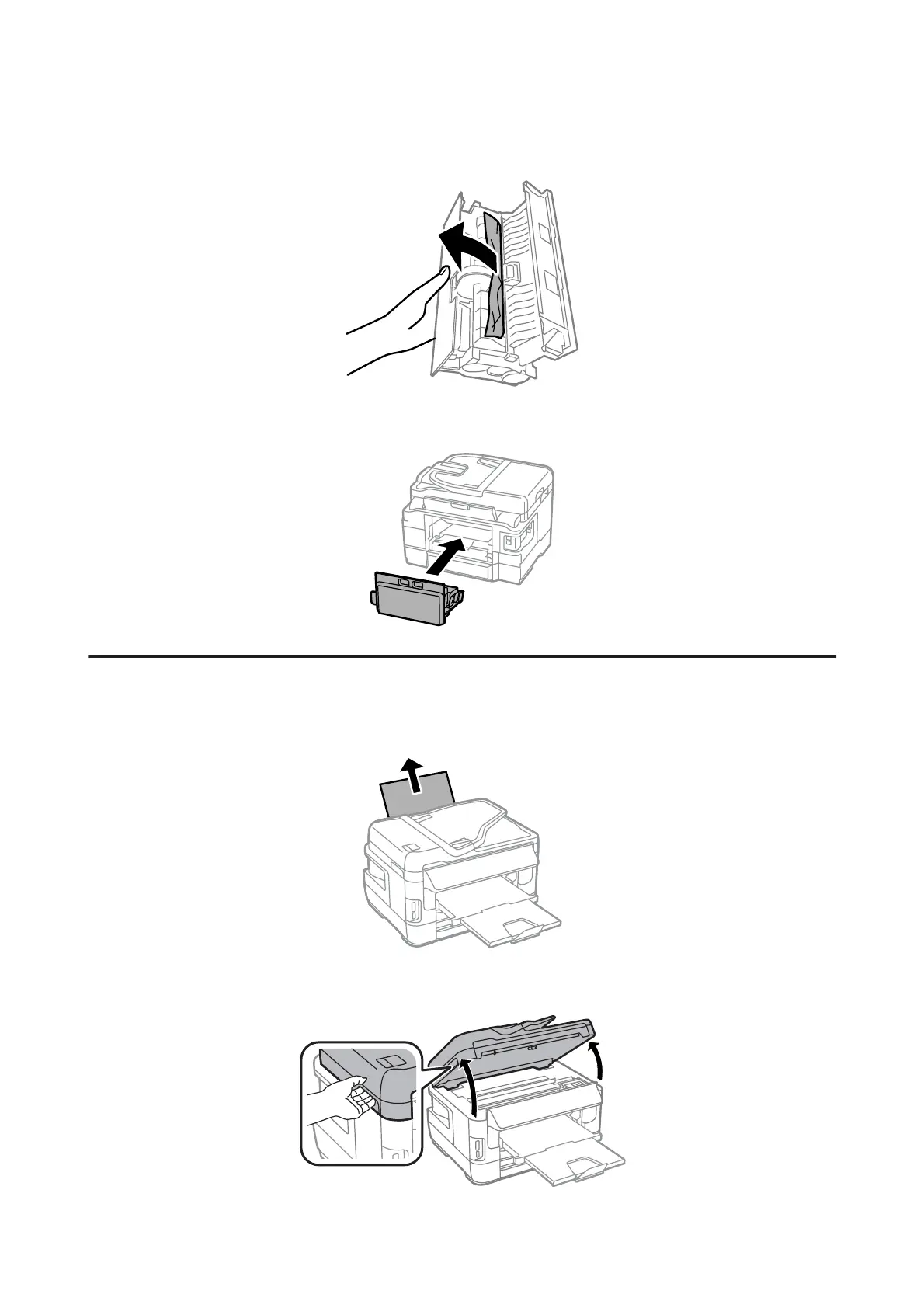

Carefully remove the jammed paper.

Reattach the rear cover.

Removing jammed paper from inside the product

Carefully remove the jammed paper.

Open the scanner unit.
