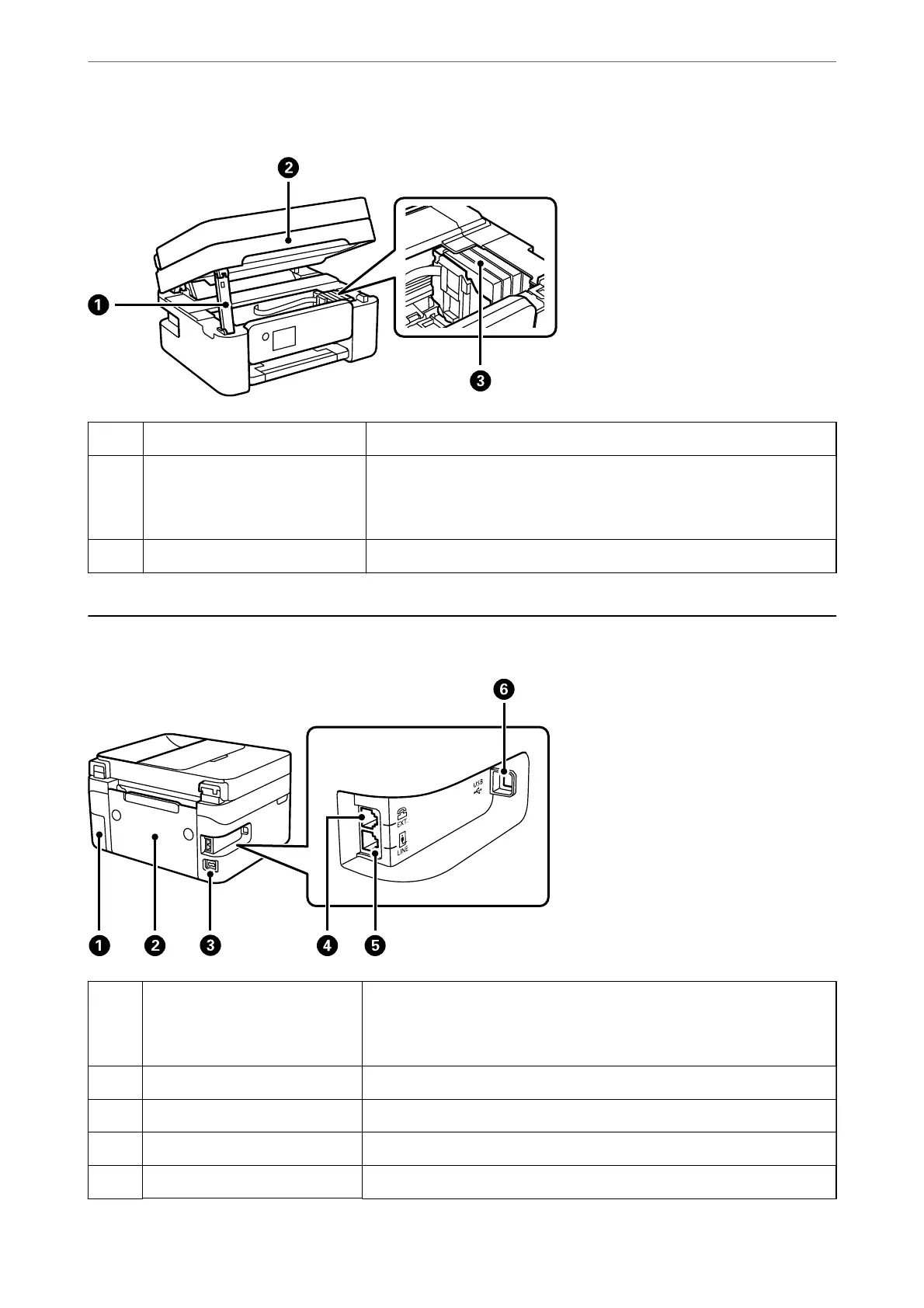

A
Scanner unit support Supports the scanner unit.
B
Scanner unit Scans placed originals. Open when replacing ink cartridges or removing
jammed paper inside the printer. When you close the scanner unit, lift it
slightly so that the scanner unit support lifts out. For safety, the scanner unit
is closed in two steps.
C
Ink cartridge holder Install the ink cartridges. Ink is ejected from the print head nozzles.
Rear
A
Maintenance box cover Remove when replacing the maintenance box. You need a at-head
screwdriver to remove the maintenance box. The maintenance box is a
container that collects a very small amount of surplus ink during cleaning or
printing.
B
Rear cover Remove when removing jammed paper.
C
AC inlet Connects the power cord.
D
EXT. port Connects external phone devices.
E
LINE port Connects a phone line.
Part Names and Functions
>
Rear
19
