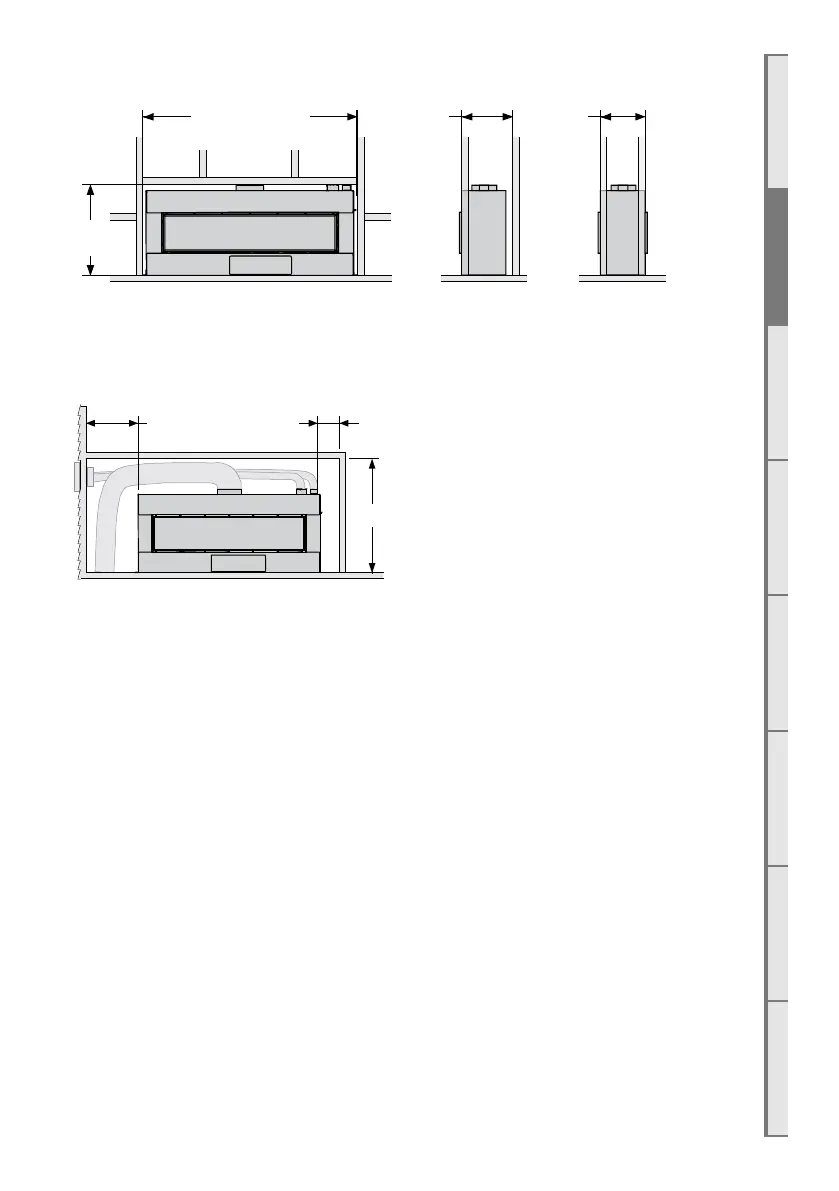

B3 Framing Dimensions
DX1000: MIN
MIN
450
MIN
381
Front Side
Single Sided
Side
Double Sided
DX1500: MIN
1900
Guidelines for Framing Dimensions - Bench top / Hutch style
1150
MIN
400
MIN
Adequate space to provide
gas inlet connection.
B4 Cavity Base
This appliance MUST be fully supported on its base, over the entire area of the underside of the
appliance. The base must also be level and strong enough to support the total product weight,
which is approximately 100kg (DX1000) or 120kg (DX1500).
B5 Hearth
No hearth is required.
B6 Wall Linings
The appliance must be installed prior to and behind the finished wall surface. Take into account
any plaster board, tiles or any other finishing surface that may be intended for the finished wall
surface. Wall finishing materials must not encroach upon the minimum cavity clearances given
in previous sections. The wall board that lines the outside of the opening can be normal plaster
board and does not need to be non-combustible.
NOTE: The final wall lining must not encroach within the specified dimensions in this section or
section B8 on page 13. These dimensions indicate the opening required in any wall lining.
These dimensions are for DX1500 / DX1000 without fascia; if using a fascia then please check
the following section of this manual for separate wall lining dimensions.
If not using a fascia, ensure the edge of the wall lining is finished in a tidy manner.
