Escea DX1000 - B7 Fascia

B
A C D E F G SERVICE
12

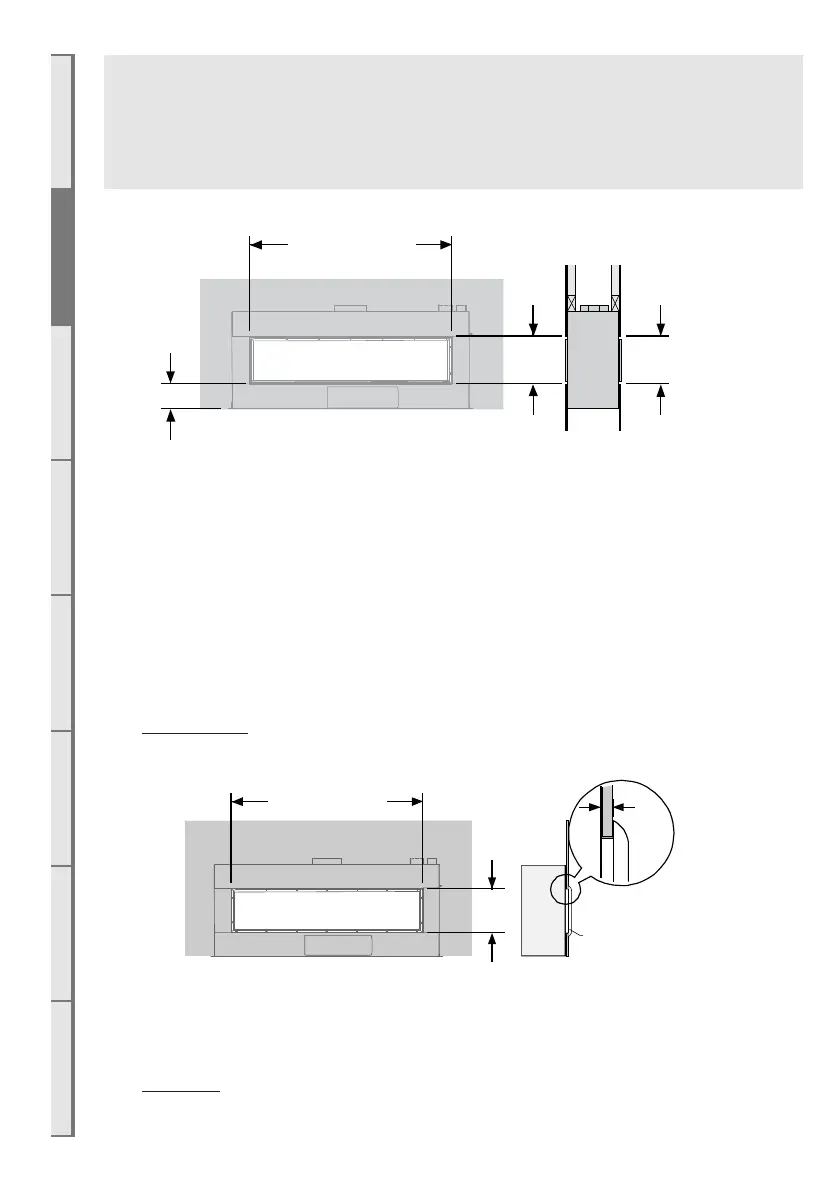

The plasterboard is to protrude beyond framework as shown in the following diagram.
Note: The wall lining directly above the appliance will get warm and hence may discolour paint finishes
that are susceptible to temperature damage. The heat may also distort vinyl wall coverings. For
durability of finishes and surfaces you should contact the relevant manufacturer for their specification
and avoid materials that are not suitable for use above a fireplace.
Note that a 20mm or less wall lining must be used when installing a DX-series fireplace without a bevelled
fascia. For wall linings of a total thickness of 10mm or larger, a “Linear Trim” may be purchased to cover
any exposed wall lining. A 9mm wall lining is recommended for ease of installation.
B7 Fascia
NOTE: Any installed fascia must be able to be removed for annual servicing of the fire, including
cleaning the glass.
Bevelled Fascia
If using a bevelled fascia, the cutout required in the finished plaster board dimensions are:
A 15mm or less wall lining must be used when installing a DX-series fireplace with a bevelled fascia, as this
is the maximum distance the bevelled fascia can sit o the front face of the fire, as shown. For wall linings
of a total thickness of 10mm or larger, a “Linear Trim for Bevelled Fascia” may be purchased to cover any
exposed wall lining.
Linear Trim
For 10mm-20mm wall linings, an optional “Linear Trim” can be used to cover any unwanted
exposed wall lining and/or act as a slimline fascia.
362
SideFront
362
192
DX1000: MIN
1062
DX1500: MIN
1562
WALL OPENING
(WITHOUT FASCIA)
410
DX1000: MIN
1100
DX1500: MIN
1600
15
Max
FASCIA
WALL OPENING
(WITH FASCIA)
Note: If duct backpressure is too great, the appliance can shut down due to overheating.
The ducting fan will generate mechanical noise. Ideally it must be installed in a position where noise
will not interfere with daily activities. All air ducts will make noise no matter how well the system is
designed. Increasing the number of outlets is a simple strategy to reduce this noise.
