D7 Installing in Accordance with Relevant Codes
The location of the Powerflue Terminal must be installed in accordance with AS/NZS 5601.1 and
any other relevant building codes. Avoid installing the Powerflue Terminal in areas exposed to
high winds and extreme weather, if possible.

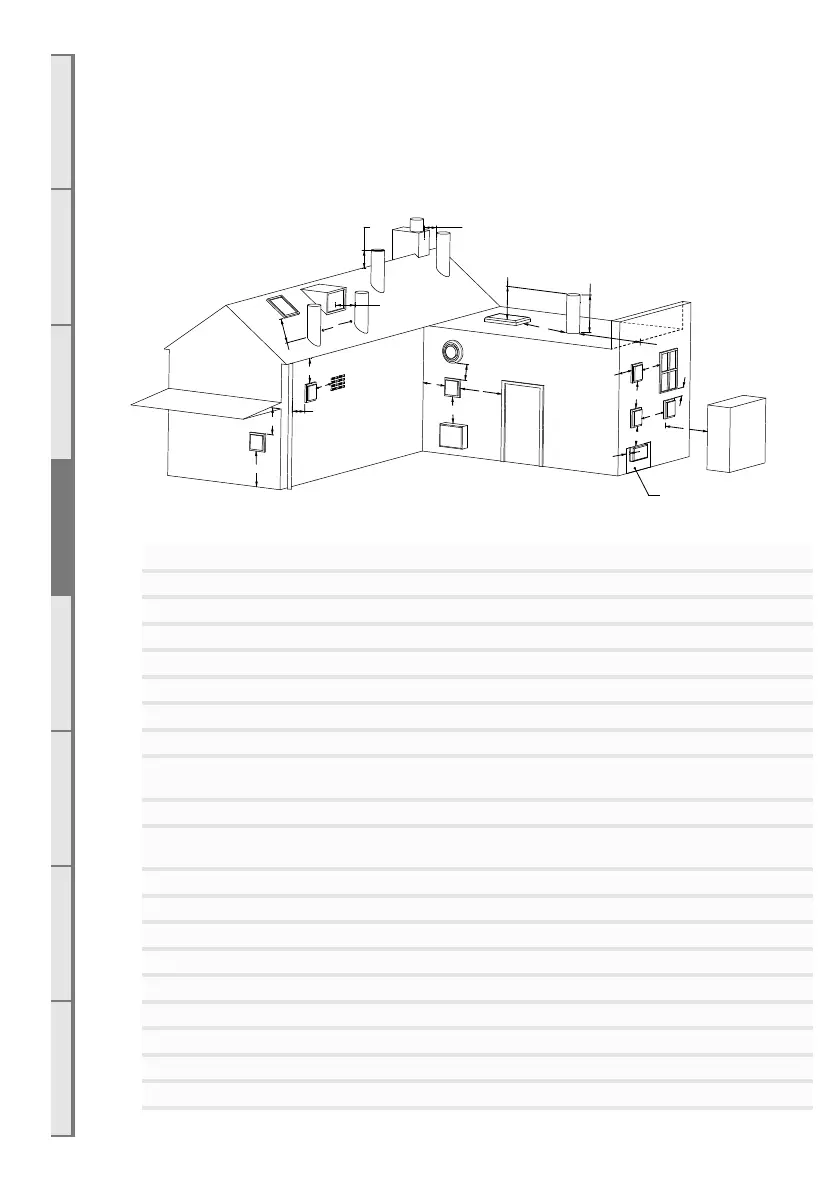

Some of those minimum clearances for a fan assisted terminal are listed below; please refer to
AS/NZS 5601.1 Gas installation standard for full guidance on the design of the flue system.
Where possible allow a greater clearance.
A Below eaves, balconies and other projections 200mm
B From the oor, above a balcony or other surface 300mm
C From a return wall or external corner 300mm
D From a gas meter or regulator vent 1000mm
E From electricity meter or fuse box 500mm
F From a drain pipe or soil stack 75mm
G Horizontally from any building structure or obstruction 500mm
H From any other ue terminal or combustion air intake 300mm
J Horizontally from any openable window, door, non-mechanical air inlet, or any other
opening into a building with the exception of sub oor ventilation
300mm
K From a mechanical air inlet or spa blower 1000mm
L Vertically below any openable window, door, non-mechanical air inlet, or any other
opening into a building with the exception of sub oor ventilation
300mm
N Horizontally from a roof light 600mm
O Vertically from a roof light 500mm
Q Vertically from a flat roof 500mm
R Horizontally from a vertical structure 500mm
S Below a roof window 2000mm
T Above or either side of a roof window 600mm
U From a dormer window 1500mm
V Above the apex of the roof (see note 1 on following page) 300mm
W From an open flue 1500mm
N
R
F
S
W
U
A
V
K
Q
E
J
J
A
H
E
D
C
C
A
O
G
J
L
B
M
P
Prohibited area for ues is
below or Distance 'E' to
the left and right of the
Electricity meter
or fuse box
M = Gas Meter
P = Electricity meter or Fuse box
