Installing the Electricity and Gas to the Appliance

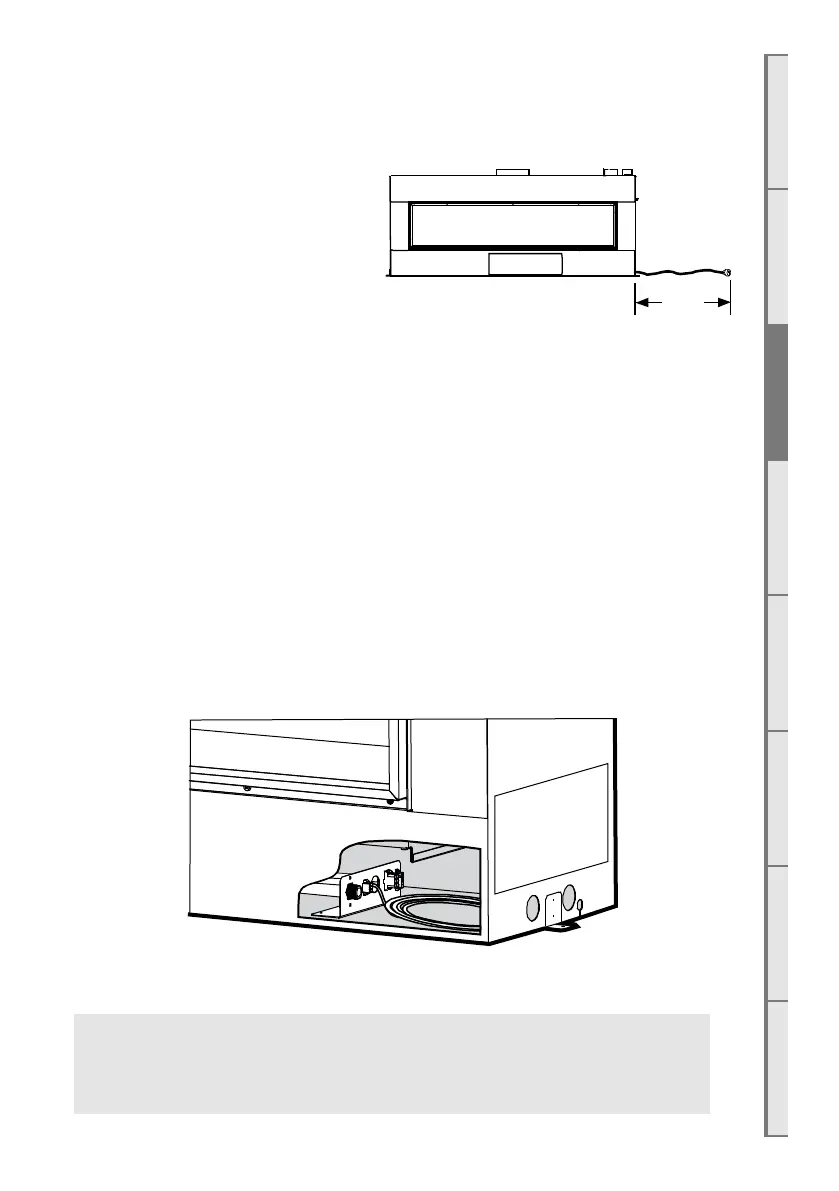

C1 Power Supply
While the cavity is being created,
consideration must be given to the location
of an appropriate power supply. An earthed
230/240 volt mains power connection
(typically a standard 3 pin outlet) must
be available within 1m of the bottom
right of the appliance. This connection
must be accessible after the heater has been fully installed so that the appliance can be safely
disconnected from the mains power supply prior to servicing.
A mains isolation switch (compliant to AS:NZS 5601 Clause 6.2.8) which is accessible from
outside the cavity can also be used to disconnect the power.
Regardless of the method used, it MUST ALWAYS be possible to safely isolate the electrical
supply to the appliance after it has been fully installed.
This appliance must not be located immediately below a socket outlet. This appliance will draw a
maximum of 2 Amps from a 230/240V supply. No additional power supply is required for the
power flue.
C2 Network Cable
A 10 meter length of network (Ethernet) cable has been supplied and is coiled inside the lower
right of the fireplace. Access this via the removable access panel and connect it to the buildings’
modem.
If you do not wish to connect the fireplace to the modem, the Network /
Ethernet cable should be run to somewhere accessible by a service
technician, such as a cupboard.
