Escea DX1000 - Page 23

B
ACDEFGSERVICE
23
The UVP-Internal kit is intended for use within an accessible roof space or ‘chimney’ construction.
Service access must be provided.
Ensure installation complies with relevant building codes and regulations.
To appliance

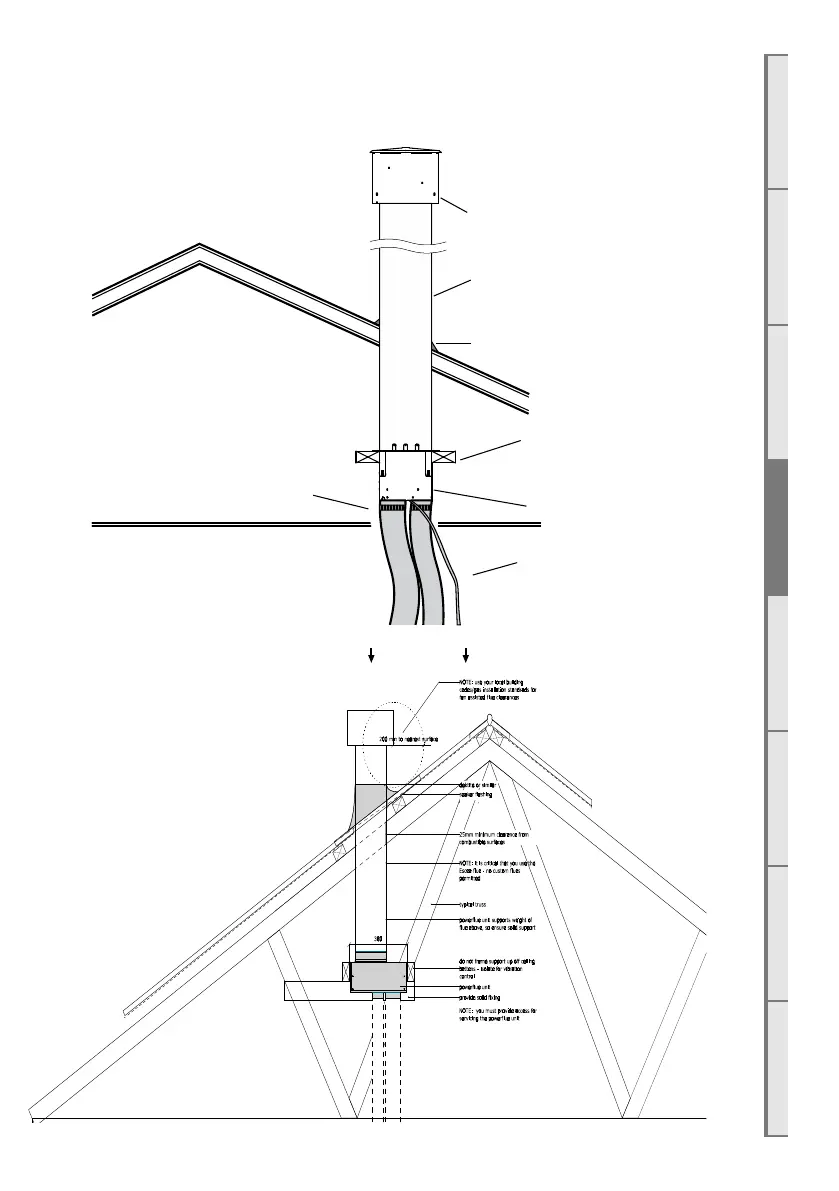

Typical Installation UVP Cowl
‘Decktite’ or similar ashing
1.2m F-F Liner
Hose band clamps
Ø75mmØ100mm
Ensure Power Flue unit
is securely braced using
integral brackets.
Roof Space
Power cord to
appliance
UVP Fan Unit
