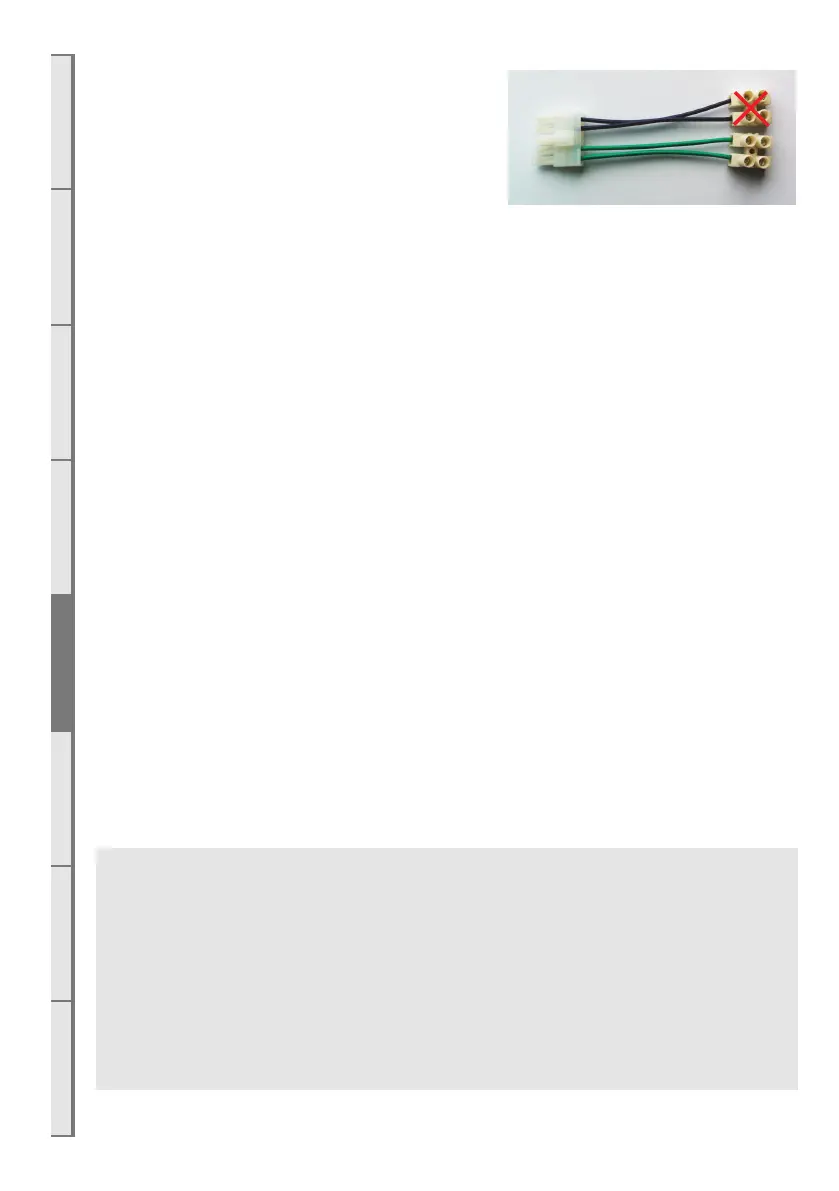

The home automation connection can be found in your
fireplace accessory pack (shown right).
This connects to the fireplace via the lower RH outside
panel of the fireplace, next to the primary network cable
access point, as shown in section C2 on page 15.
Home Automation Operation
Relay closed
The fireplace will start in a medium setting until the remote control talks to the fireplace and picks
up the ‘ON’ signal (which can take up to 4 minutes). Once the remote has communicated with the
fireplace it will turn on and begin operating thermostatically. The remote will use whatever temperature
the user has previously set and cannot be altered by the home automation system. The fireplace will
continue to operate while the relay is closed.
Note: If the fireplace cannot communicate with the remote within 10 minutes of the relay contact closure
then the fireplace will shut down and return to standby. The remote controller is required to be within
operating range of the fireplace for its safe operation.
Relay open
If the fireplace is operating with a closed relay then, upon opening the relay contacts, the fireplace will
shut down and return the remote controller to its standby mode when it next updates (which can take
up to 4 minutes). While the relay is open the fireplace will be in standby mode and available for manual
operation by the user.
END OF SECTION E
By the end of this section, you should have:
□ The appliance installed in the cavity
□ The appliance fixed to the cavity base and wall lining
□ The appliance plugged into a mains electricity supply
□ The appliance gas supply attached and pressure tested with all other gas appliances running
Home Automation - GREEN WIRES ONLY
