Chapter 1. Get Started

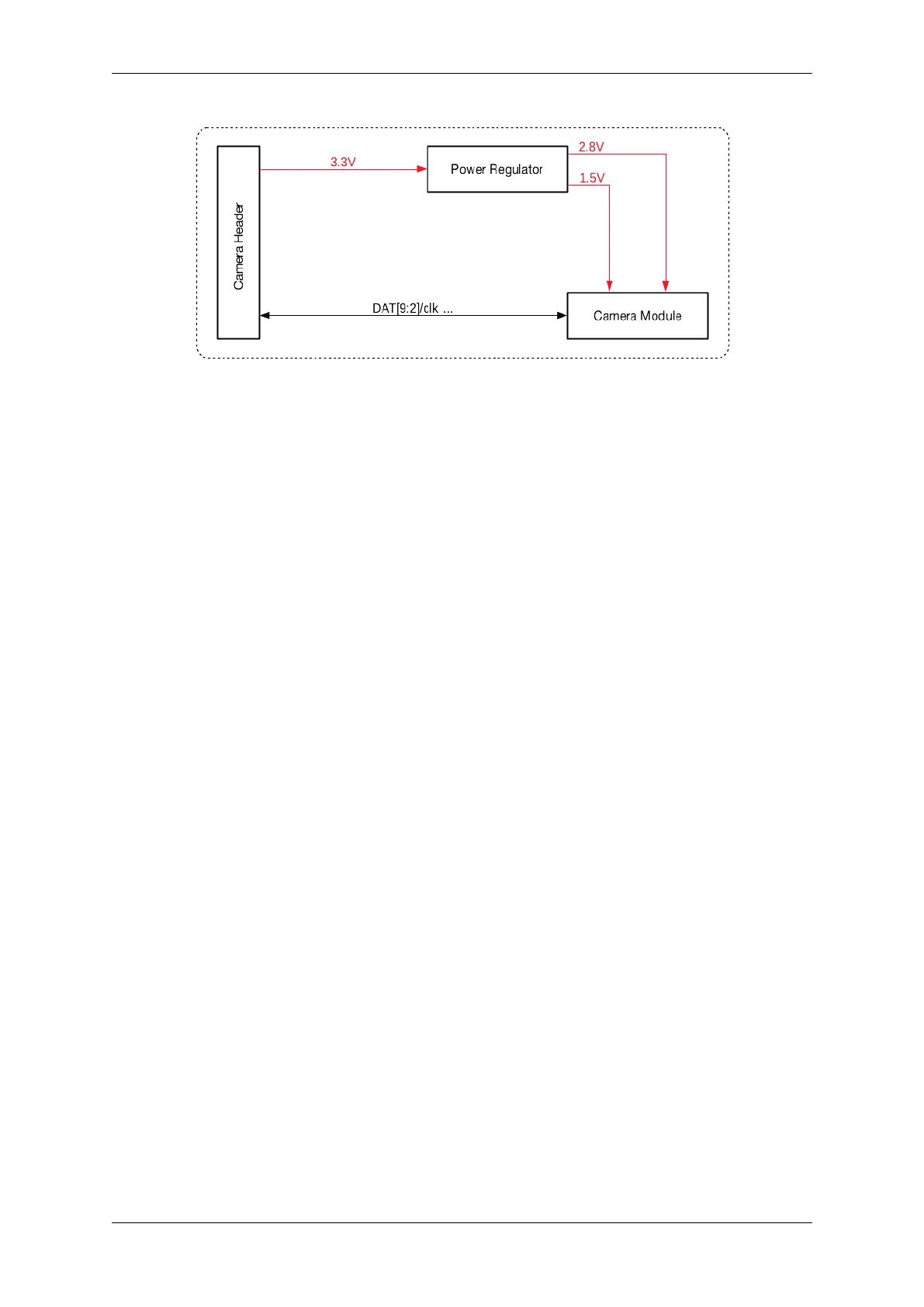

Fig. 38: ESP-LyraP-CAM block diagram
ESP-LyraP-CAM v1.1
• Silk screen updated
• No actual hardware updates
ESP-LyraP-CAM v1.0 Initial release
Related Documents
• ESP-LyraP-CAM Schematic (PDF)
• ESP-LyraP-CAM PCB Layout (PDF)
For other design documentation for the board, please contact us at sales@espressif.com.
ESP-LyraP-LCD32 v1.2 This user guide provides information on the ESP-LyraP-LCD32 extension board.
This extension board cannot be bought separately and is usually sold together with other Espressif development boards
(e.g., ESP32-S2-Kaluga-1), which will be referred to as main boards below.
Currently, ESP-LyraP-LCD32 v1.2 is sold as part of the ESP32-S2-Kaluga-1 Kit v1.3.
The ESP-LyraP-LCD32 extends the functionality of your main board by adding an LCD graphic display.
The document consists of the following major sections:
• Overview: Provides an overview and hardware/software setup instructions to get started.
• Hardware reference: Provides more detailed information about the ESP-LyraP-LCD32’s hardware.
• Hardware Revision Details: Covers revision history, known issues, and links to user guides for previous versions
of the ESP-LyraP-LCD32.
• Related Documents: Gives links to related documentation.
Overview This extension board adds a 3.2”LCD graphic display with the resolution of 320x240. This display is
connected to ESP32-S2 over the SPI bus.
Description of Components In the description of components below, Reserved means that the functionality is
available, but the current version of the kit does not use it.
Espressif Systems 47
Submit Document Feedback
Release v4.4
