Introduction
7
If a file name has been used, it will save to this name, otherwise
it will jump to the Save as
menu.

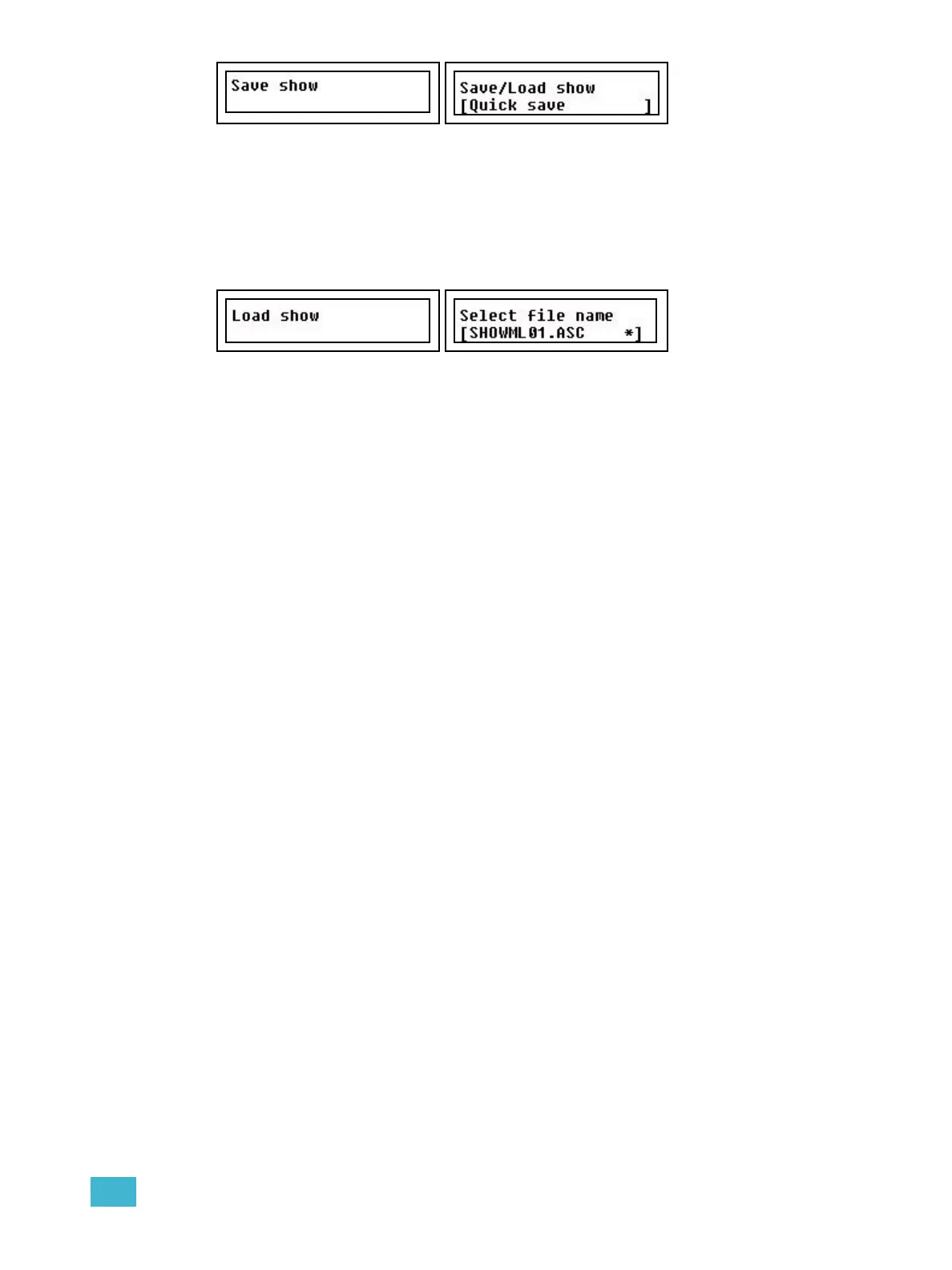

Load show from Card
This is done from the Save/Loa
d Show menu
Menu>Save/Load Sh
ow>[Load show]
Select the show with the wheel. The default s
how offered for loading will be the last show,
or the lowest numbered recordin
g on the card.
12
14
Table of Contents
