46 SmartFade ML v3.0.1 User Manual
Color Control
As soon as a device with color parameters is selected you can control these parameters
from the parameter faders and from the LCD parameter control functions.
Device types supported include: RGB, CMY, RGBA, RAGCB (Prism Reveal), ROAGI
(Selador Fire), RGCBI, (Selador Ice), ROAGCBI (Selador x7). User personalities may be
made with RGB, RGBA or CMY mixing
The parameter faders provide control of Hue, Saturation, Color wheel 1 and 2 plus MODIFY
and Color FX.
The LCD’s provide parameter control with the encoder wheels which is necessary when
you want to adjust parameters relative to their current position.

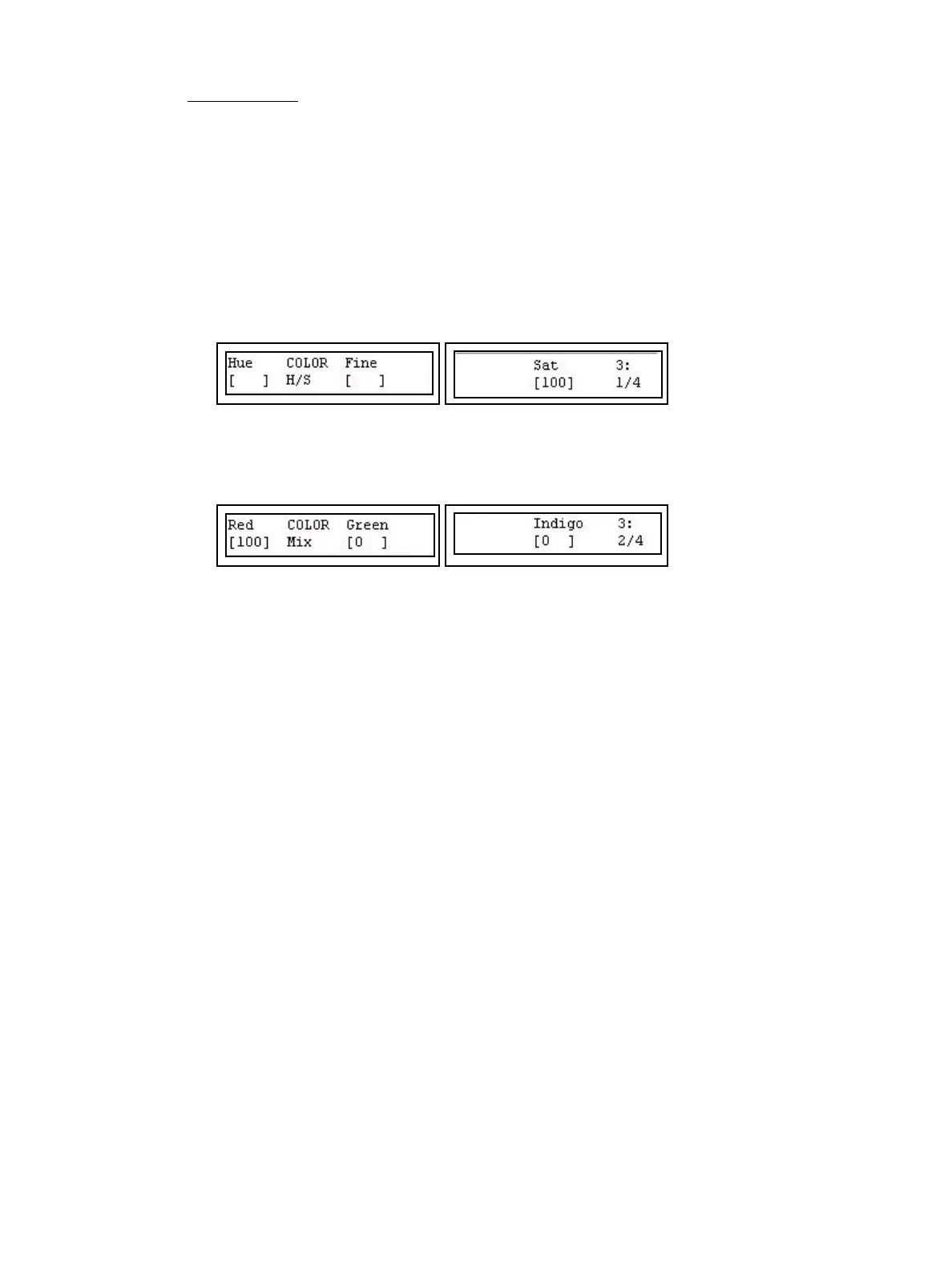

Press SEL until the display shows the first color parameters.
Wheel 1 controls hue (0-100%) and wheel 2 a fine trimming value of the hue value.
Wheel 3 controls saturation (0-100%).
Press MORE to access the native parameters of the selected device.
Parameters that do not exist in the currently selected device(s) are displayed [---]. If there
are different parameters on the same wheel, a * character is added to indicate this.
