Euphonix Media Application Controller Operation Manual Soft Keys
45

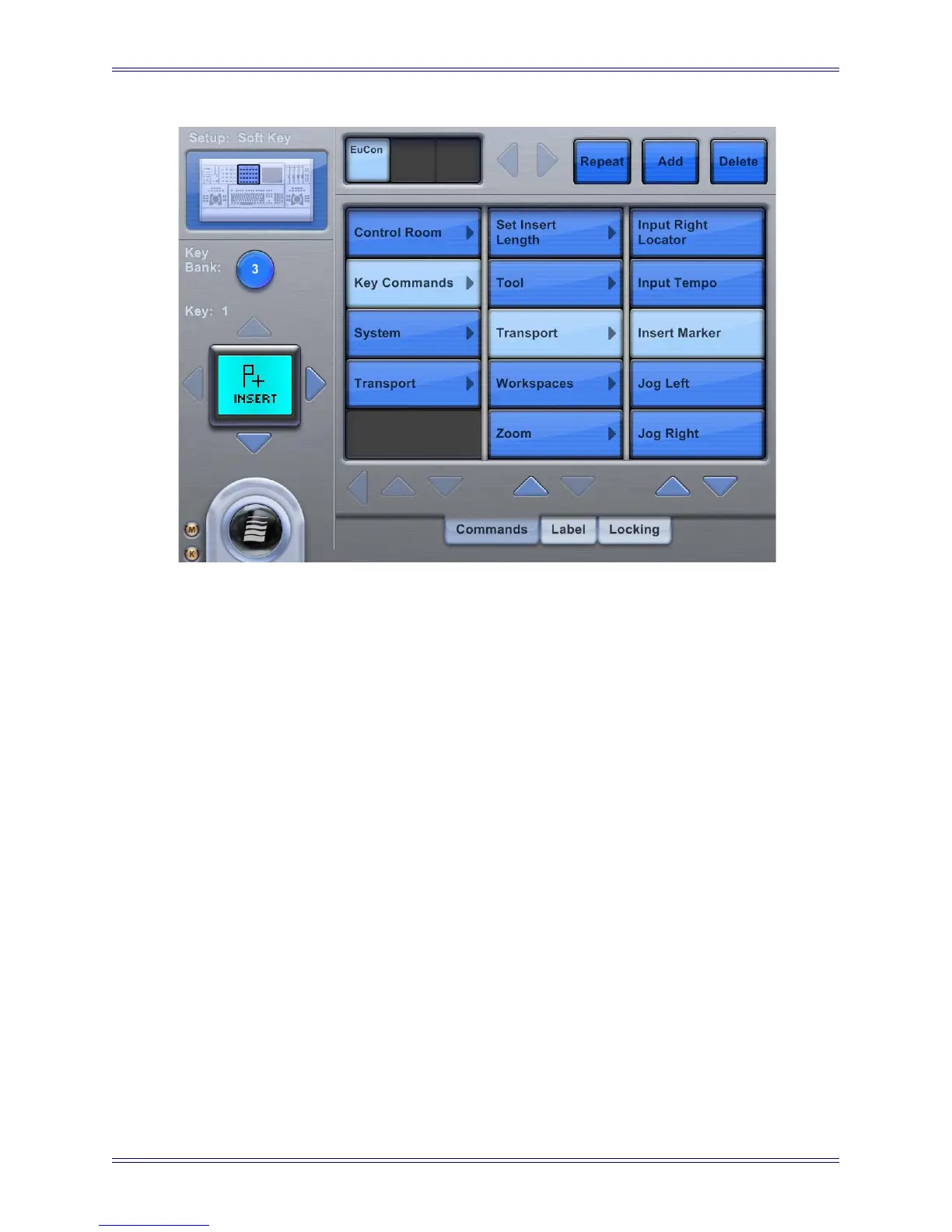

Figure 5-4 Setup-EuCon Commands Touchscreen
This Touchscreen allows choosing from hierarchical EuCon command menus (the ac-
tual contents depend on the EuCon application). To assign a command, touch a catego-
ry in the left-most menu, and use the submenus to find the desired command. Touching
the command instantly assigns it to the command definition and the Soft Key displays
the default command label.
If there are more than three menu levels, they move to the left as the submenus open. To
get back up to the top of the hierarchy, use the left arrow button below the left-most menu.
