Euphonix Media Application Controller Operation Manual Studio Monitor Express (Windows)
77
9.4 Application O/P Patch

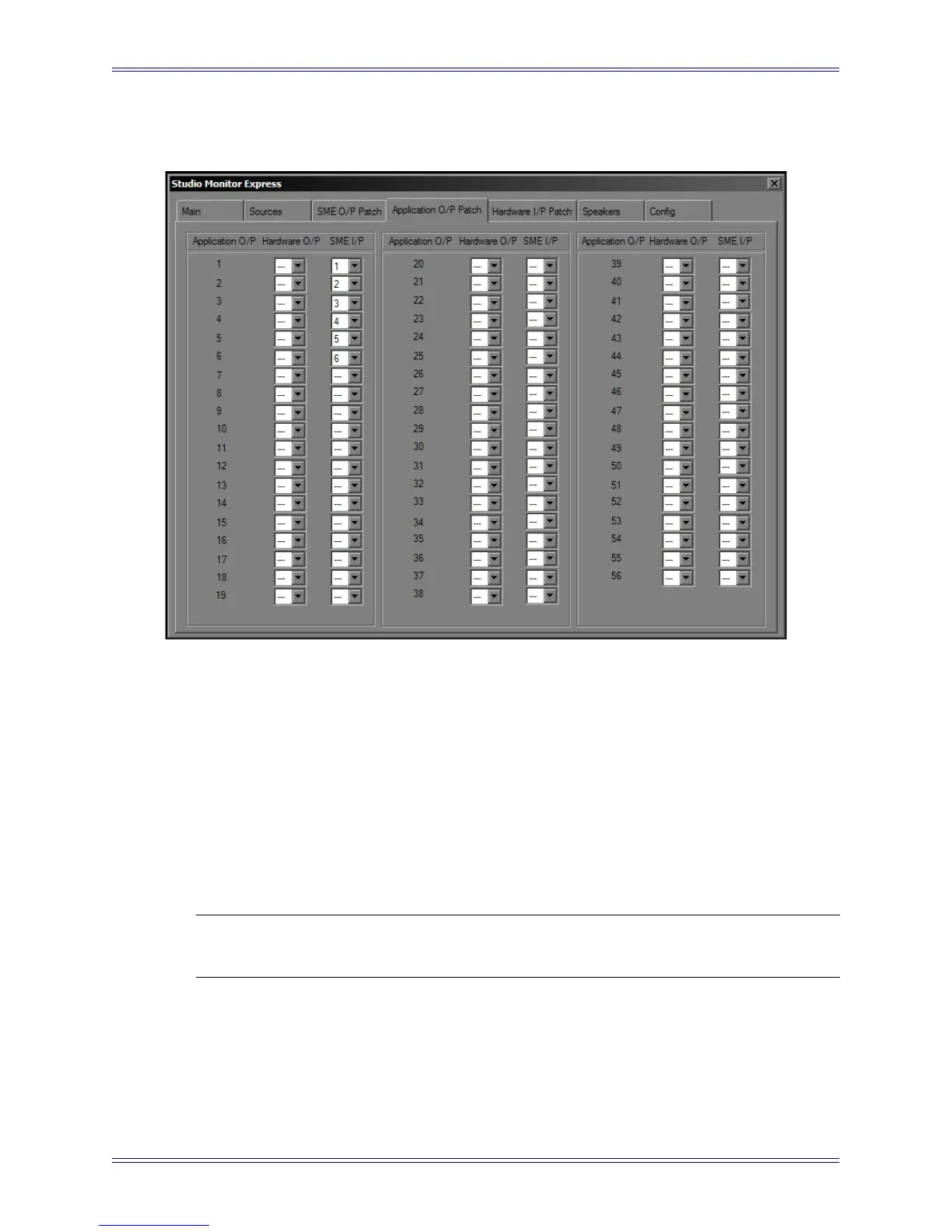

Figure 9-4 Application O/P Patch Tab
The Application O/P Patch tab routes the application outputs (i.e. Nuendo) to the audio
I/O hardware outputs and/or SME Inputs.
The Hardware O/P drop-down allows applications using the SME ASIO driver to
route signal directly to the physical outputs (bypassing SME).
The SME I/P drop-down allows applications using the SME ASIO driver to route sig-
nal into SME’s mixer. It is possible to select both a Hardware output and SME Input
simultaneously, creating a mult.
NOTE: Only outputs enabled in the Config tab (page 80) are available from the Hard-
ware O/P and SME I/P drop-down menus.
If the main outputs from your DAW application are Hardware O/Ps 1–6, they would
typically be sent to SME O/Ps 1–6. However, it is possible to route the speaker outs to
a different order (i.e., SMPTE surround format) than your monitors: For example, out-
put 3 (which your DAW expects is Right Front but you wish to be Center) can be routed
to the actual output you use for Center.
