9.2 Sources

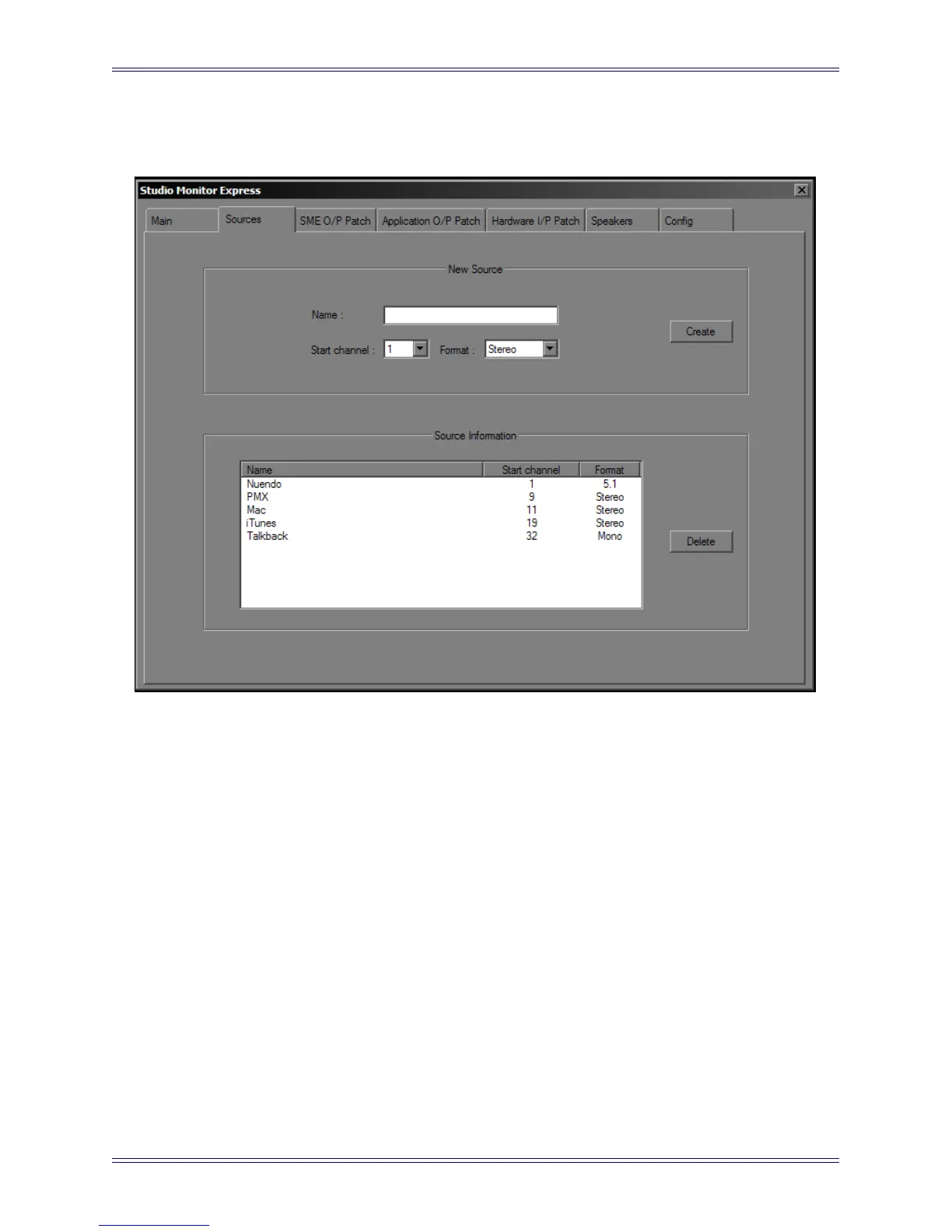

Figure 9-2 Sources Tab
The Sources tab is used to create sources to SME’s mixer inputs. To create a source,
select the Format (Mono, Stereo, or 5.1), select the Start Channel, type a name into
the Name field, and click the Create button. SME creates the input monitoring section
and adds it to the list of sections on the Main tab; it is now available for monitoring.
To create a section called CD Player: Select Stereo from the Format, select 1 as the
Start Channel, type CD Player in the Name field, and press the Create button. This
creates a stereo monitoring section for SME mixer input channels 1 and 2. The inputs
to that section are defined in the Hardware I/P Patch tab (page 78), where a hardware
input can be patched to each SME I/P.
