Euphonix Media Application Controller Operation Manual Working with Channels
64

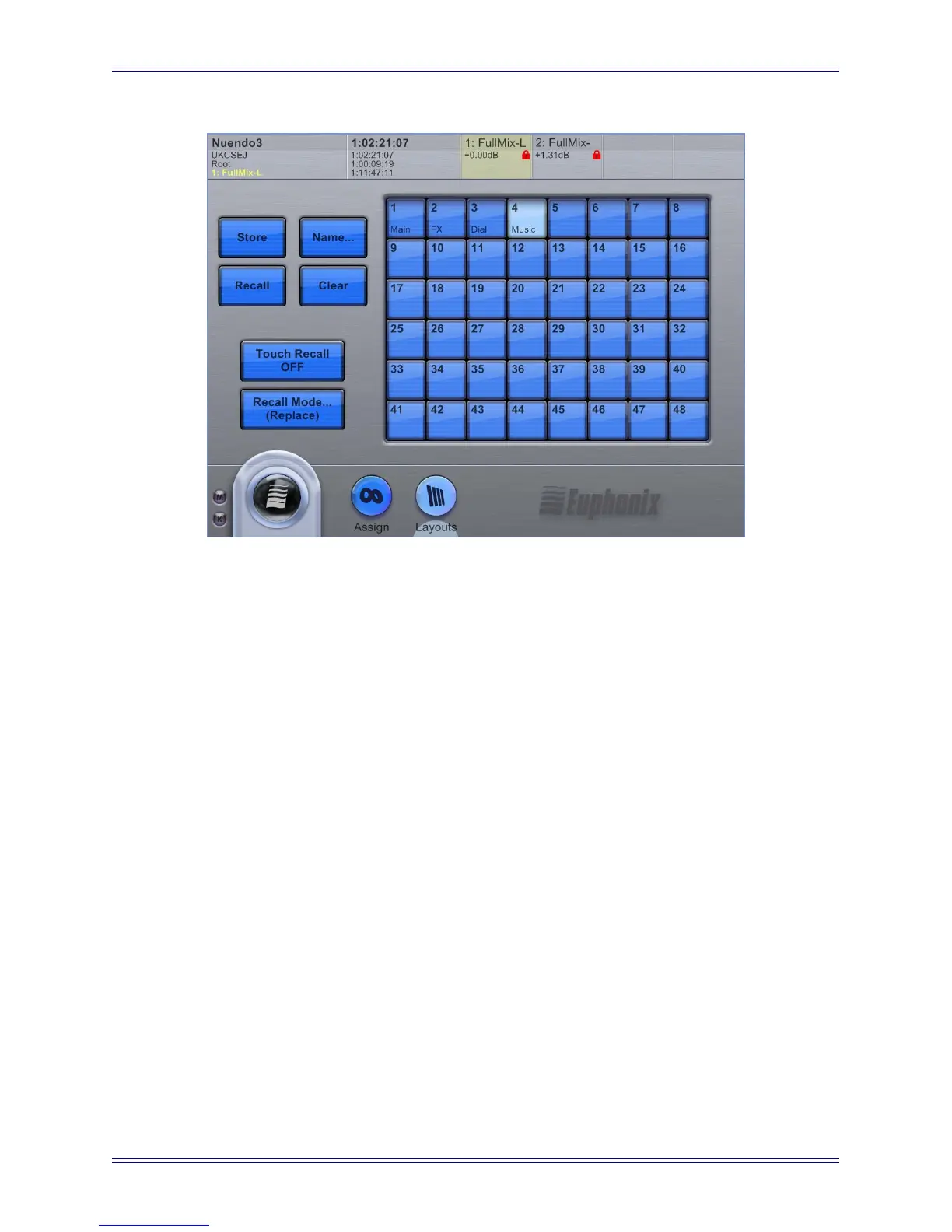

Figure 7-4 Layouts Touchscreen
To create a layout:
1. Press the Layouts button in the Strip Control Setup section on the right of the
MC.
2. Touch the desired number for the layout.
3. Touch the Store button.
4. Touch the Name button to name the layout and touch OK.
To recall or clear a layout:
1. Touch the desired layout’s number.
2. Touch the Recall or Clear button.
The Touch Recall button toggles Touch Recall on/off. When on, layouts are instantly
recalled by touching the layout’s button in the grid. All other layout functions (Store,
Name, Clear) are disabled while Touch Recall is on. First create, name, and store lay-
outs, then activate Touch Recall to have one-button access to them.
