Excell PW - 3-3-3 HI;LO;OK Settings (FnC 03)

EXCELL PRECISION CO., LTD
PW Service Manual SME300000016
37
lb
lb
lb
lb
3-3-3 HI/LO/OK Settings
Select in the general function setting mode to set the
HI/LO/OK function.
4 When the high limit and low limit are both set as “0”, the Hi/Lo/OK function is disabled.
ON/ZERO key ⇒ Increment number by 1
UNITS key ⇒ Decrement number by 1
TARE key ⇒ Move cursor one place to the right
NET/GROSS key ⇒ Move cursor one place to the left

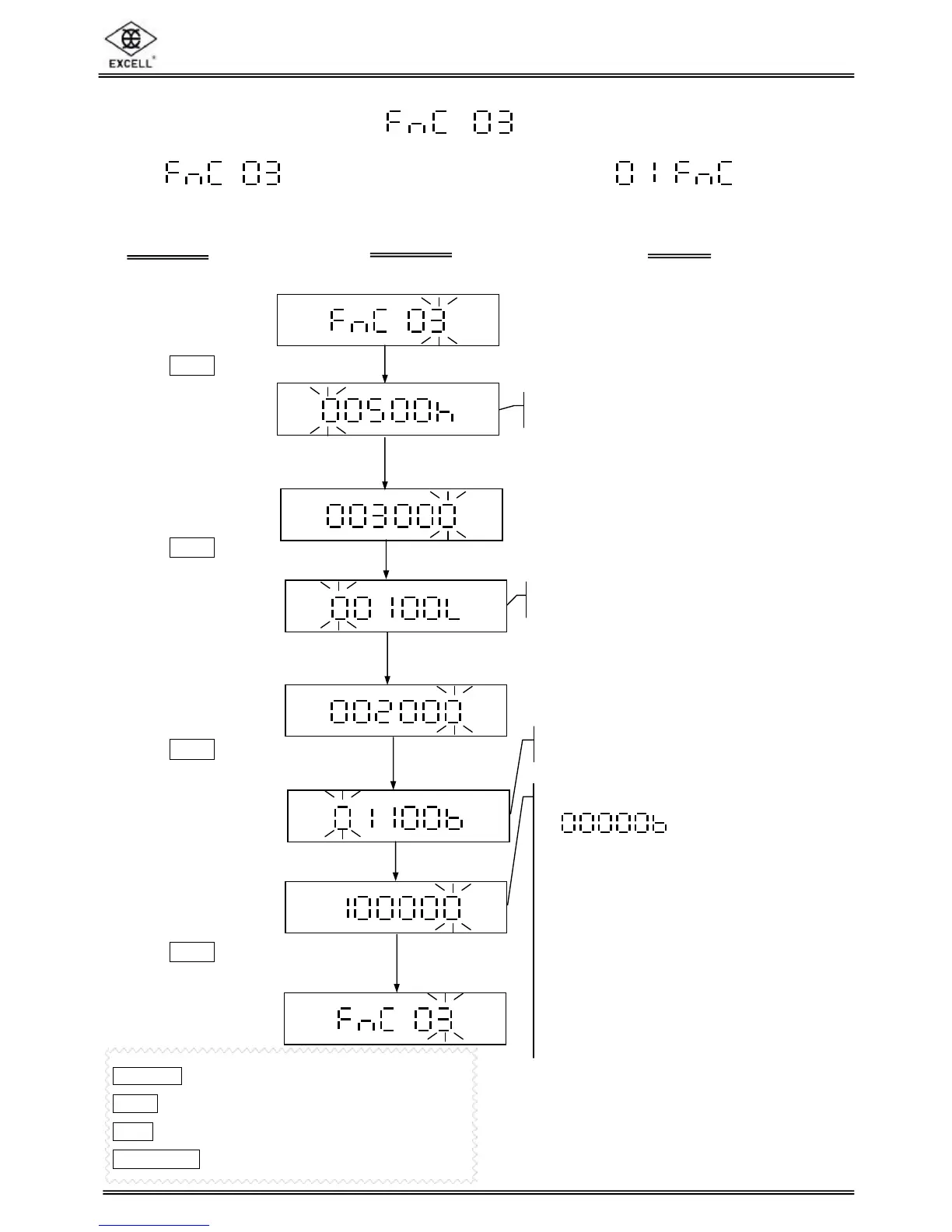

ACTIONS
DISPLAY NOTE
LCD displays the last status
Press
TARE
key
Key in the desired high
limit value
Press TARE key
Key in the desired low limit
value
Press TARE key
Key in the parameter
setting for alarm
Press TARE key
LCD displays the last status
LCD displays the last status
.
.
.
.
Alarm setting
(a) (b) (c)
The definition of a, b, c positions:
(a) ⇒ 1 = beep sound on
0 = beep sound off
(b) ⇒ 1 = beep sound on when stable
0 = beep sound on when unstable
(c) ⇒ 1 = beep sound on when the weight is
between high and low limits
0 =
beep sound on when the weight is not
between high and low limits and
higher than 10d
