INDICATOR HOUSING
Before opening the stainless steel indicator housing, make sure it is dry. If necessary wipe
the housing dry paying particular attention to the joint between the front panel and rear housing.
The re-assembly instructions should be accurately followed to ensure the IP rating is
maintained in service. NOTE: There are no user serviceable parts inside the indicator and all
service work should be carried out by the technical staff of your supplier.
RE-ASSEMBLY INSTRUCTIONS:
Position the front panel onto the rear housing and fit all six fixing screws finger tight.

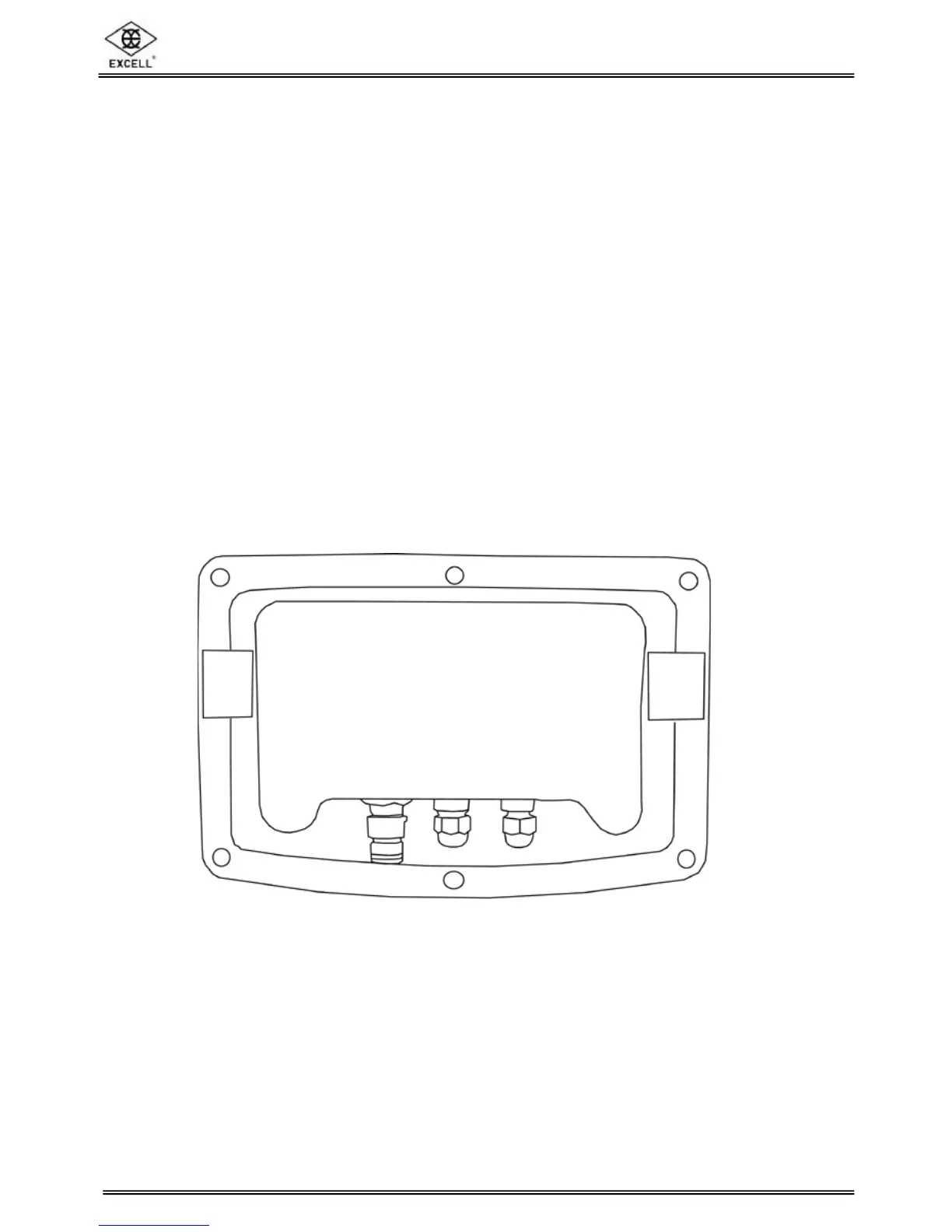

Tighten the screws in the order shown in the diagram below to a torque of 12 kgf-cm. NOTE:
Over tightening the screws could impair the IP rating.
Tightening order:
