3-5-2 Communication Protocol Settings
Select in the RS232 serial interface setting mode
to set the Communication Protocol.
ON/ZERO key ⇒ Increment number by 1
UNITS key ⇒ Decrement number by 1
TARE key ⇒ Move cursor one place to the right
NET/GROSS key ⇒ Move cursor one place to the left

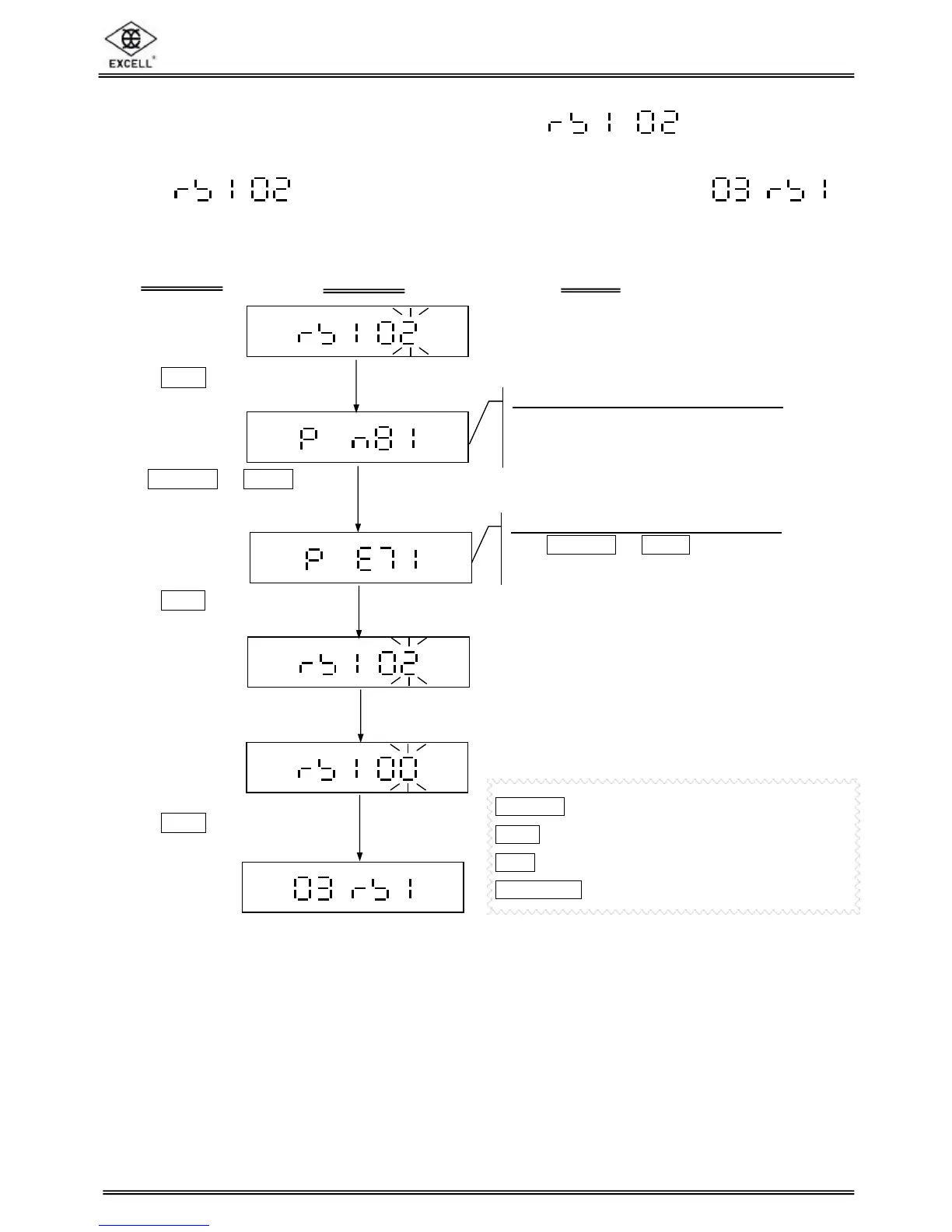

Communication protocol setting
LCD shows the last setting value.
n Default setting: n 8 1
Communication protocol setting
Use ON/ZERO or UNITS keys to select
the protocol setting: n 8 1, E 7 1, O 7 1
Press
TARE
key
Use ON/ZERO or UNITS key
to select the protocol setting
Press TARE key
Key in the parameter “00”
Press TARE key to exit
RS232 serial interface
settings
