METALJET D2+ INSTALLATION
Revision 19, November 2016 Page 4-6
The electron gun/x-ray head and the pump box must be properly fastened in order to avoid dangerous
situations where personnel may get injured or equipment may get damaged.
The electron gun/x-ray head should be properly fastened using the six M6-threaded holes underneath
the base plate, see Figure 4-5. Mount the base plate onto a support with dimensions smaller than the
base plate to avoid that the side covers take up the weight of the x-ray head. The center-of-gravity for
the x-ray head is indicated in Figure 4-4.
The pump box can either be rack mounted or positioned directly on the floor. Use the side brackets on
the front of the pump box to attach the pump box to a 19” rack, see Figure 4-6, or to fasten it relative
to the floor. Note that the 19” rack must in turn also be stable in its relative position to the electron
gun/x-ray head.

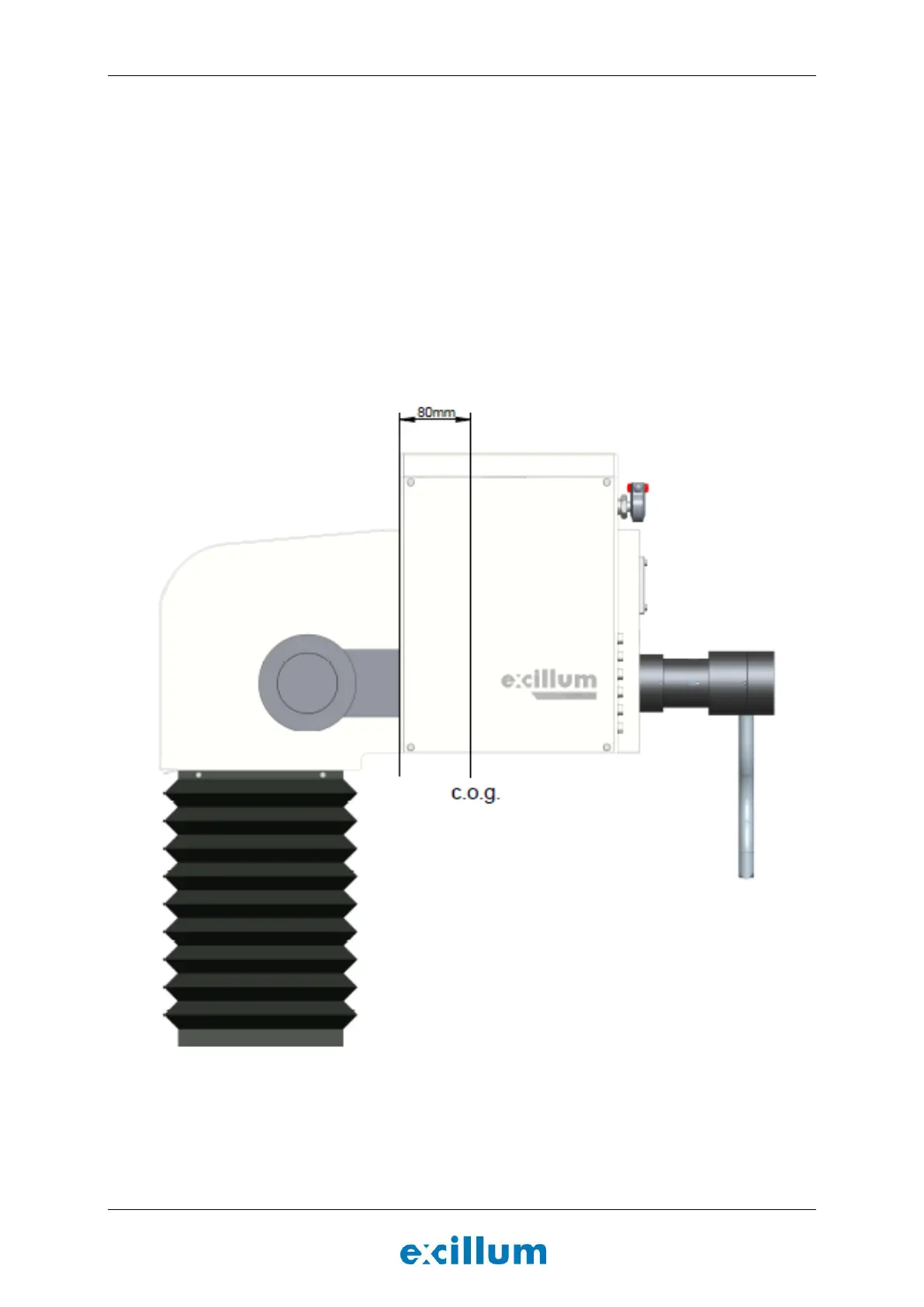

Figure 4-4. Location of center-of-gravity for the x-ray head.
