Setting Up Y
our
Unit
FTB-
2/FT
B-2 P
ro an
d FTB-
4 P
ro
105

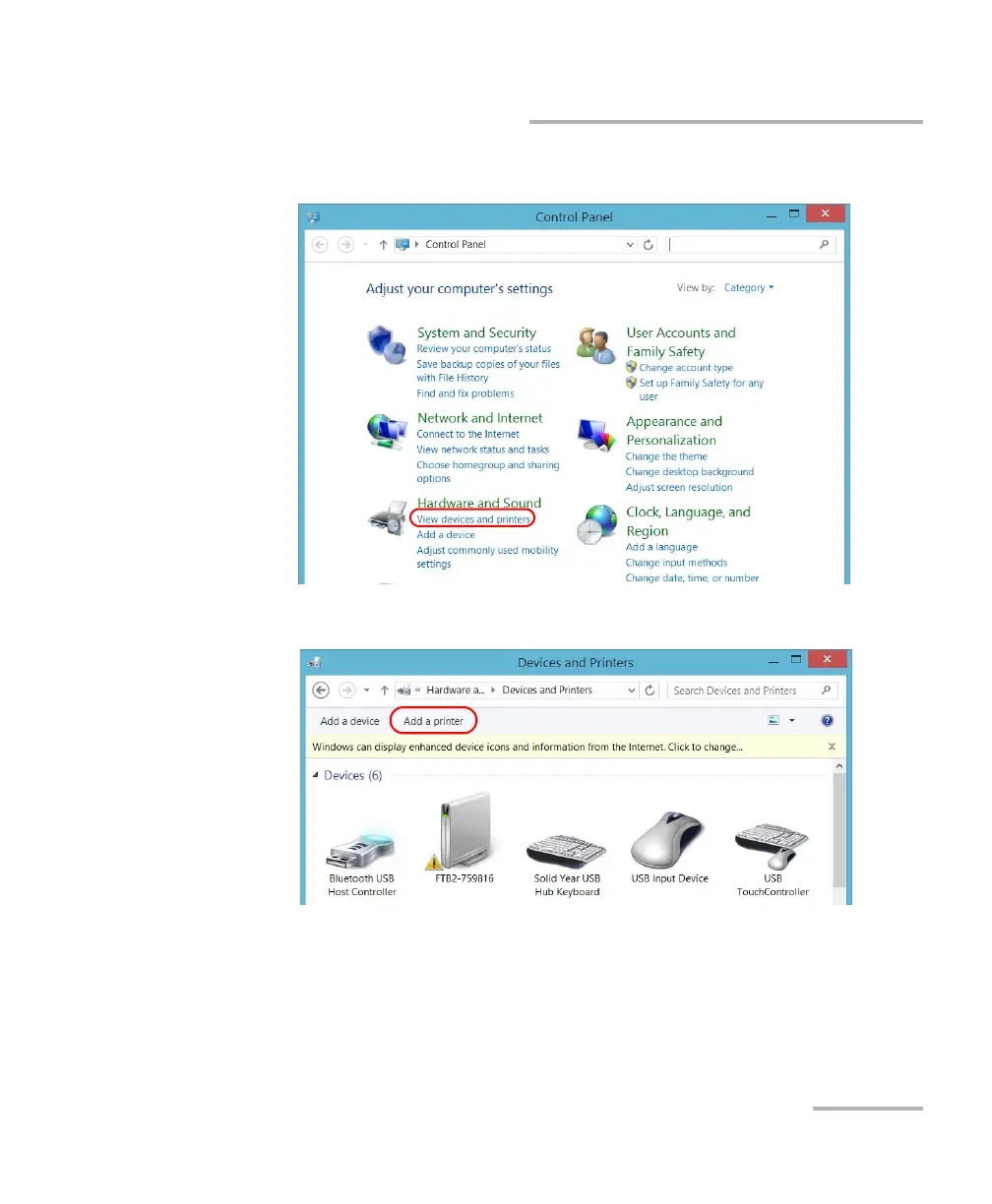

Configuring Network Printers
3.
Under
Hardware and Sound,
tap
V
iew devices and printers
.
4.
Ta
p
Add a printer
.
5.
F
ollow the on-screen instructions.
