7 Inspecting Fibers with a Probe
The fiber inspection probe (FIP) is used to find dirty or damaged
connectors by displaying an enlarged view of the connector surface. You
can connect an FIP to your unit to view fiber ends.
Fiber inspections are made using the ConnectorMax2 application. For
more information, refer to the ConnectorMax2 online help.
To inspect fibers with a probe:
1. Connect the probe to one of the USB ports of your unit (right or top
panel).

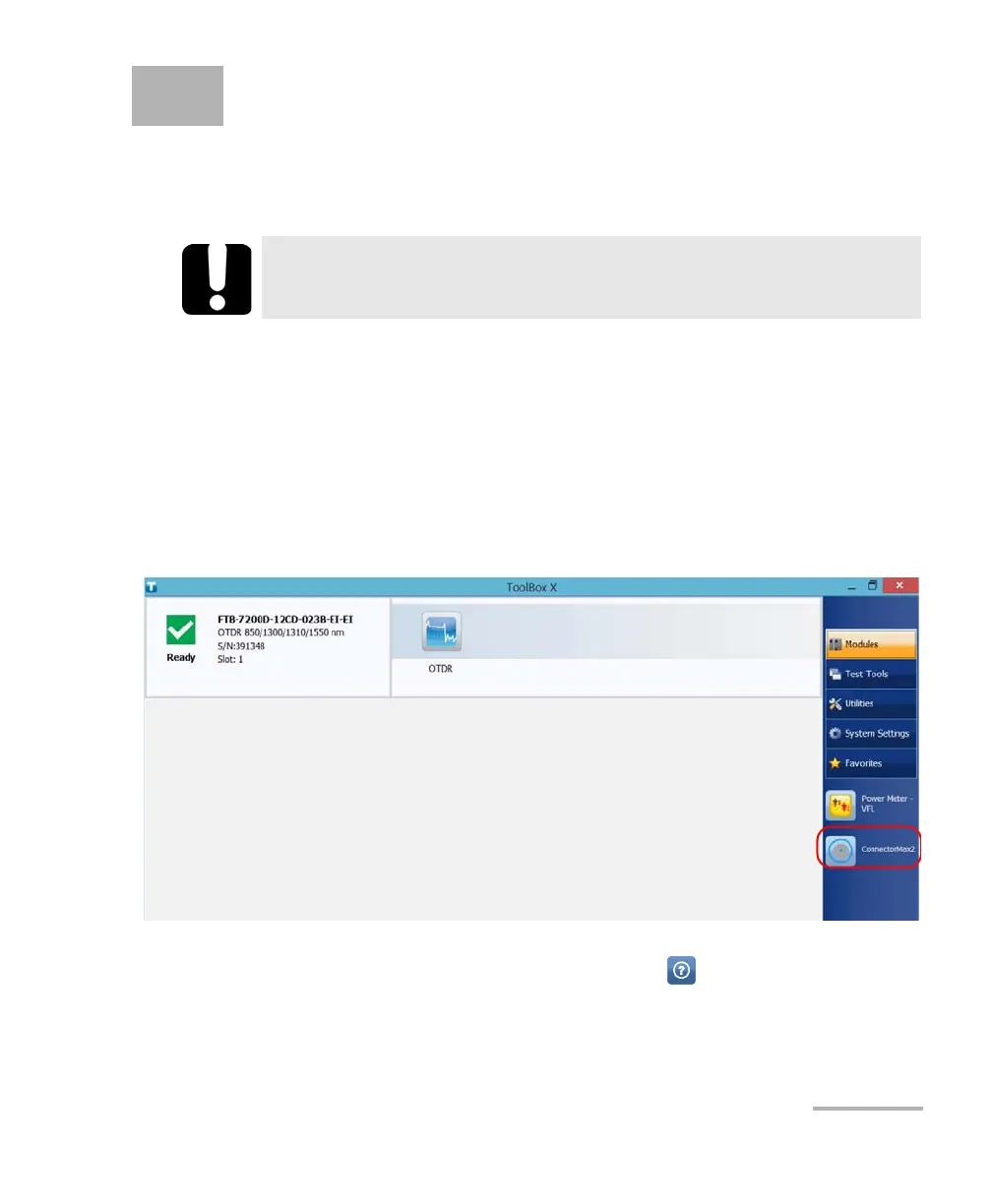

2. From ToolBox X, tap the ConnectorMax2 button to open the
application.
Note: You can access the online help by tapping the button from the
ConnectorMax2 application.
IMPORTANT
Only the probes of the FIP-400B series are supported on your unit.
