Setting Up Your Unit

FTB-2/FTB-2 Pro and FTB-4 Pro 113

Selecting the Language of Operation

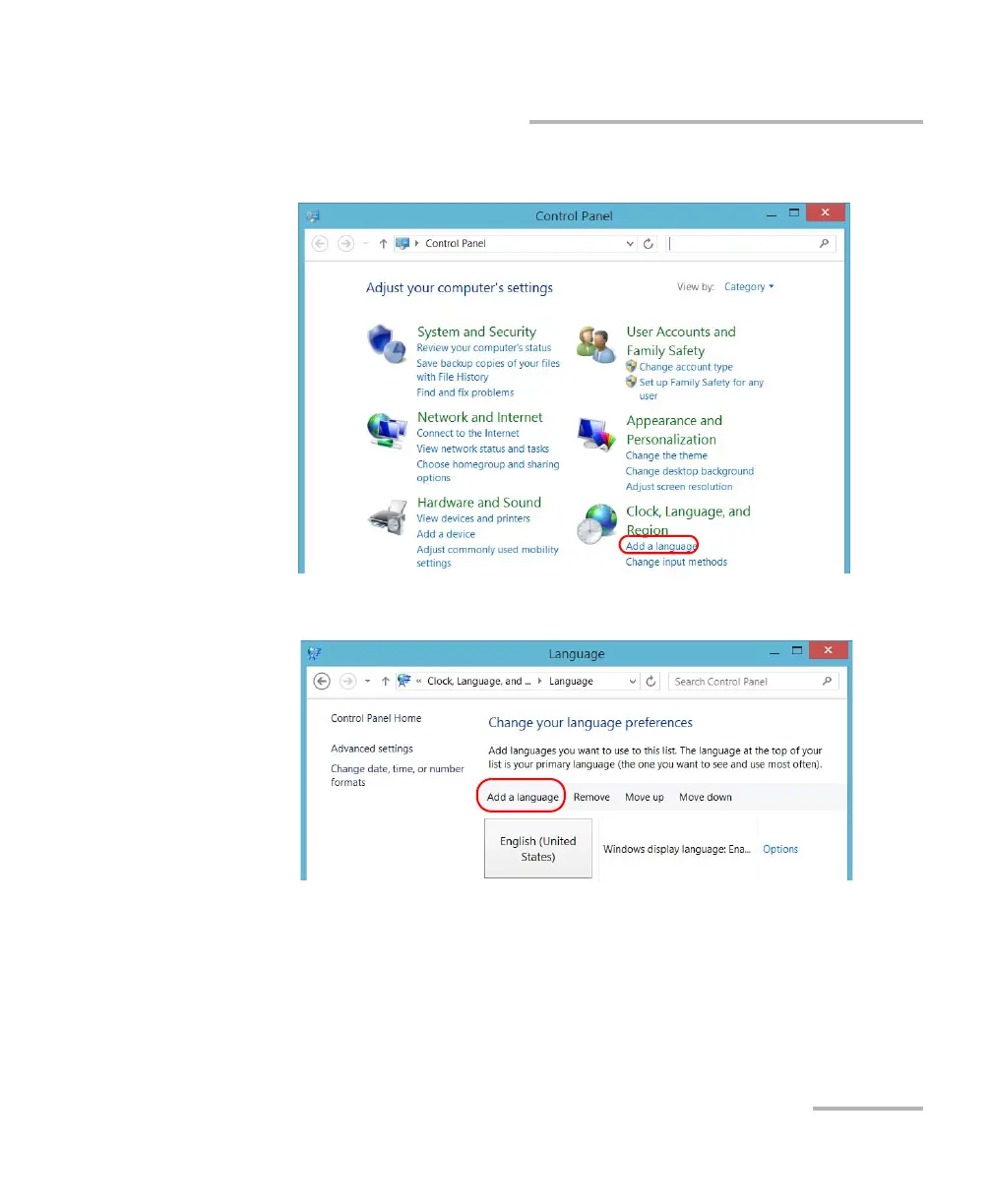

4. Under Clock, Language, and Region, tap Add a language.

5. Tap Add a language.
