Setting Up Your Unit

FTB-2/FTB-2 Pro and FTB-4 Pro 123

Configuring the Power Management Options

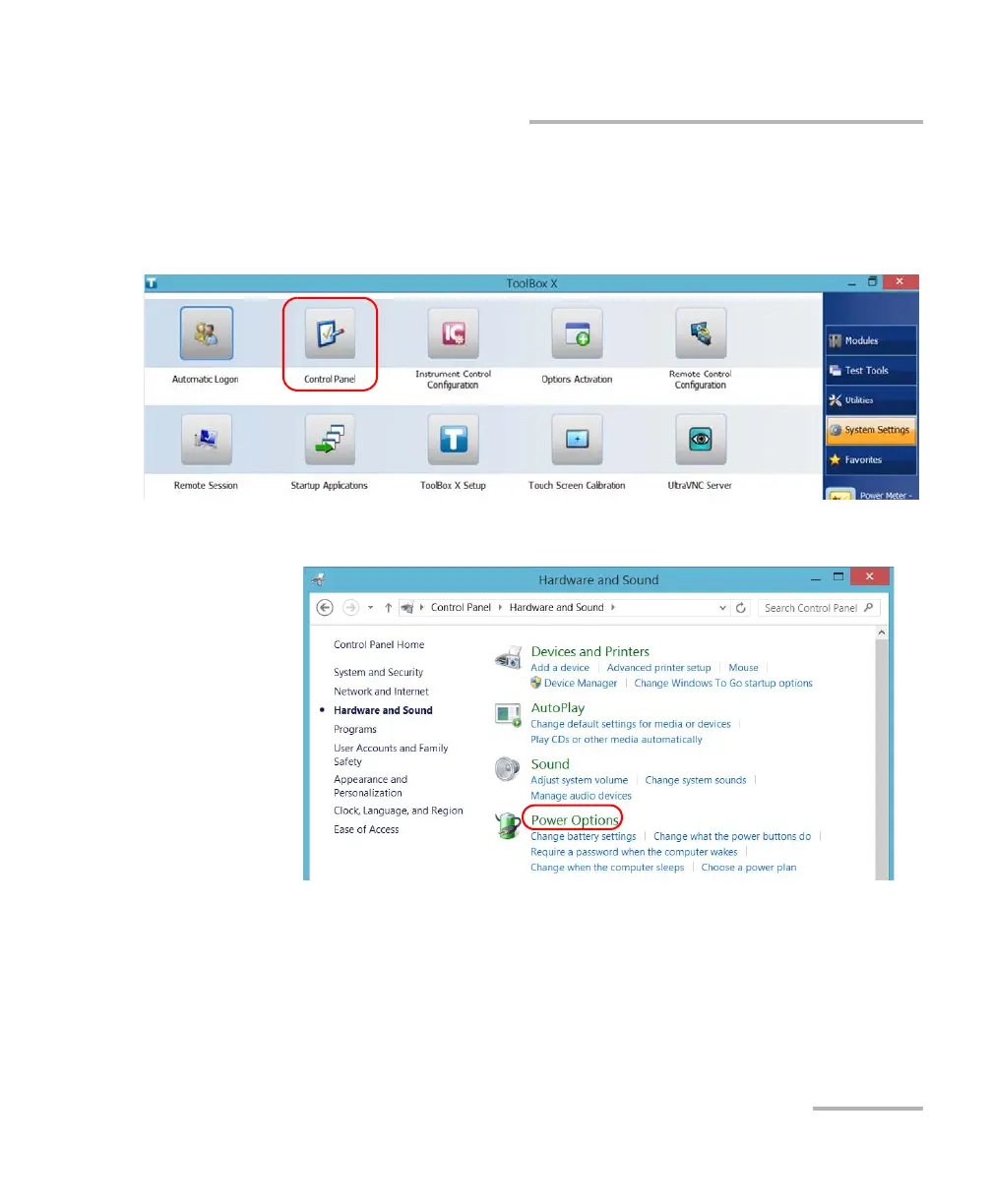

To select a power plan:

1. From the main window, tap the System Settings button.

2. Tap Control Panel.

3. Tap Hardware and Sound > Power Options.
