Introducing the FTB-2/FTB-2 Pro and FTB-4 Pro

4 FTB-2/FTB-2 Pro and FTB-4 Pro

Main Features

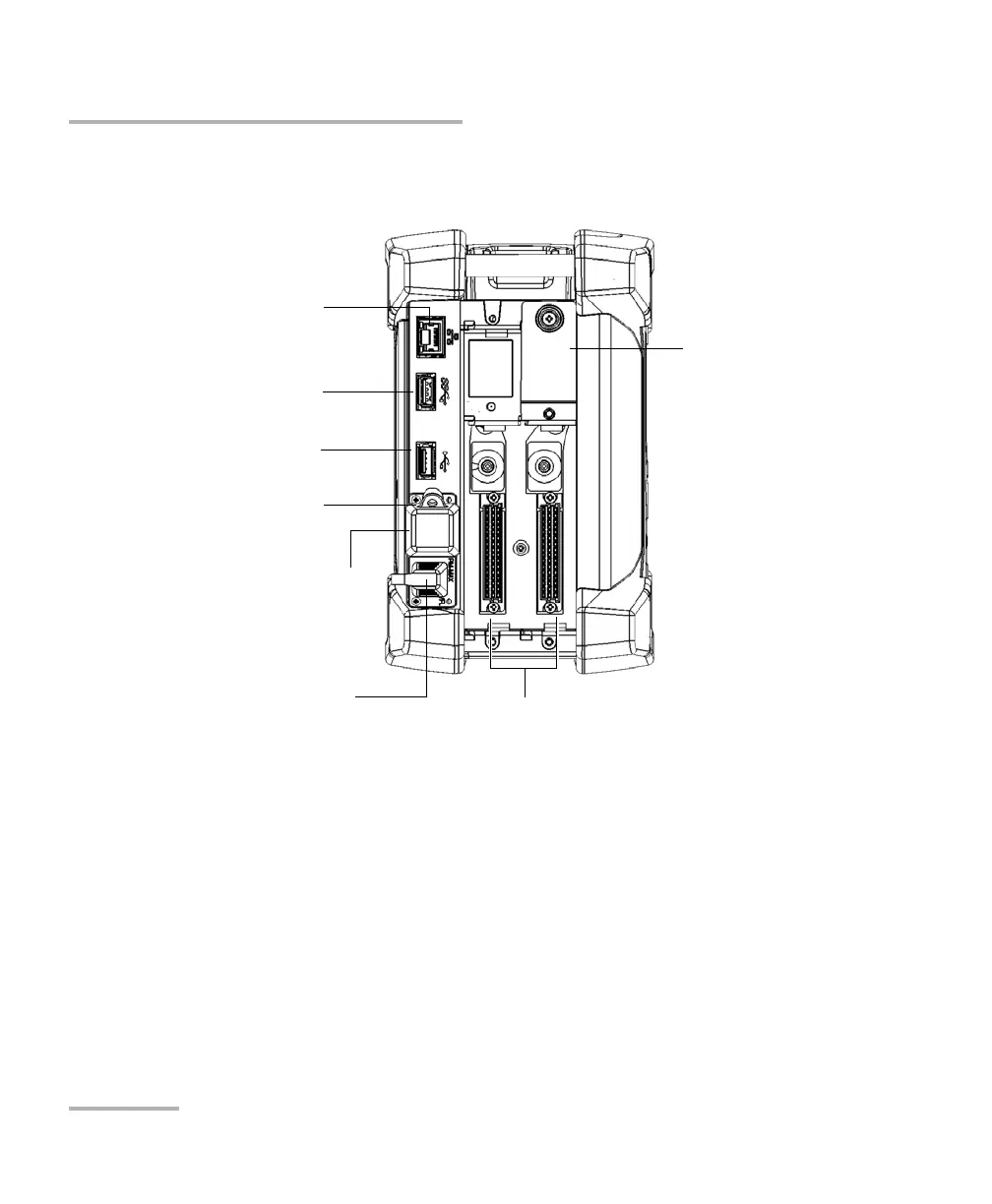

Right panel

(Two-slot model)

Ethernet (RJ-45) port

Detector port of the

power meter

VFL port;

laser radiation emitted at

this port

when VFL is active

Module slots

USB 2.0 host port

USB 3.0 host port

Built-in power meter and VFL

(optional)

Adapter

for FTB modules
