Working with Your Unit

FTB-2/FTB-2 Pro and FTB-4 Pro 159

Managing Favorites

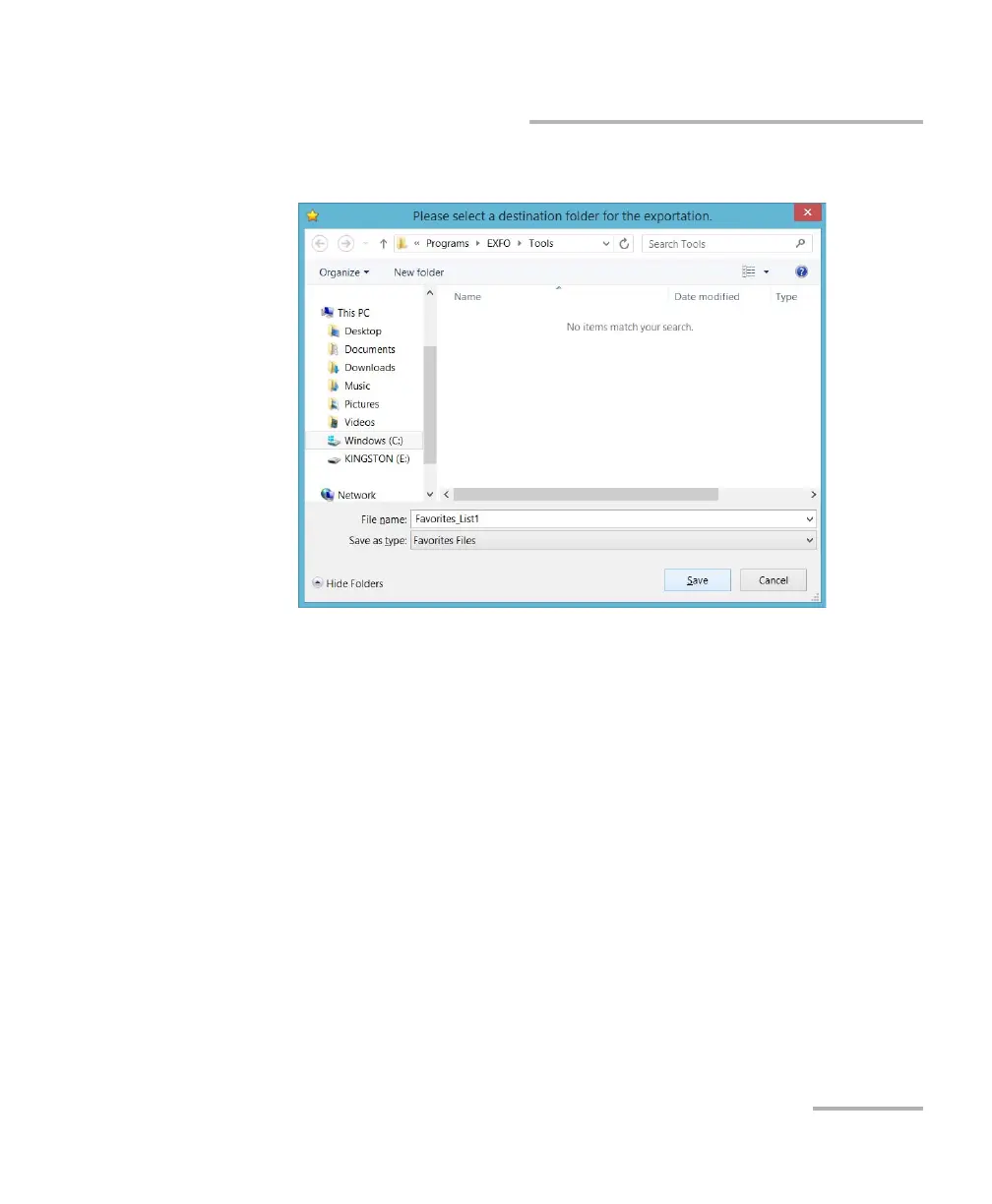

4. Select a location and type a name for the Favorites list.

5. Tap Save.

6. Tap OK to apply the changes and close the window.
