Preparing for
Automation
FTB-
2/FT
B-2 P
ro an
d FTB-
4 P
ro
245
Configuring DC
OM A
ccess to Y
our Unit
7.
In the
My Computer
Properties
dialog

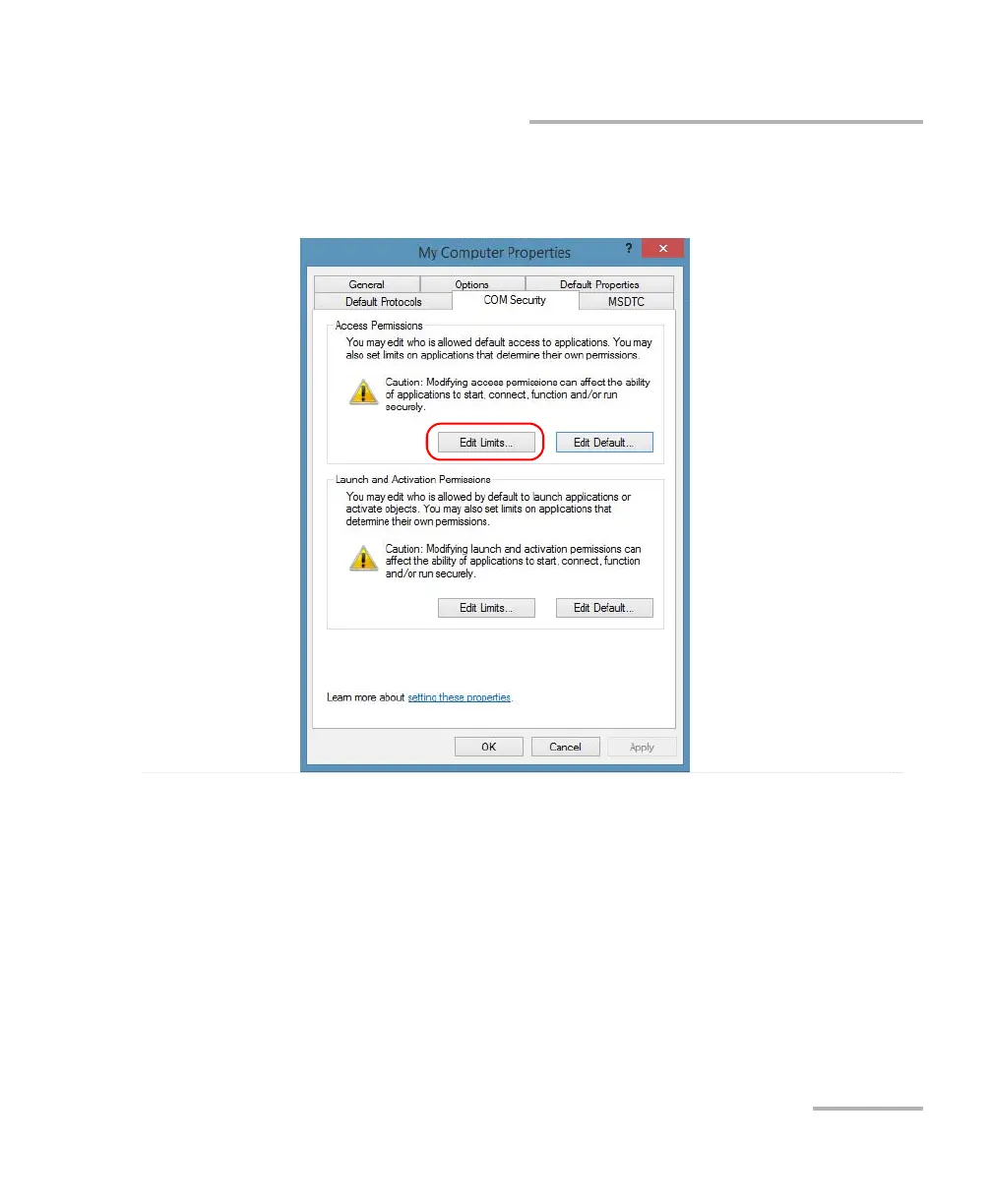

box, tap the
COM
Security
tab.
8.
Under
Access
P
er
missions
, tap
Edit Limits
.
