Preparing for Automation

FTB-2/FTB-2 Pro and FTB-4 Pro 251

Configuring DCOM Access to Your Unit

6. Confirm the newly added user has remote access permission as

follows:

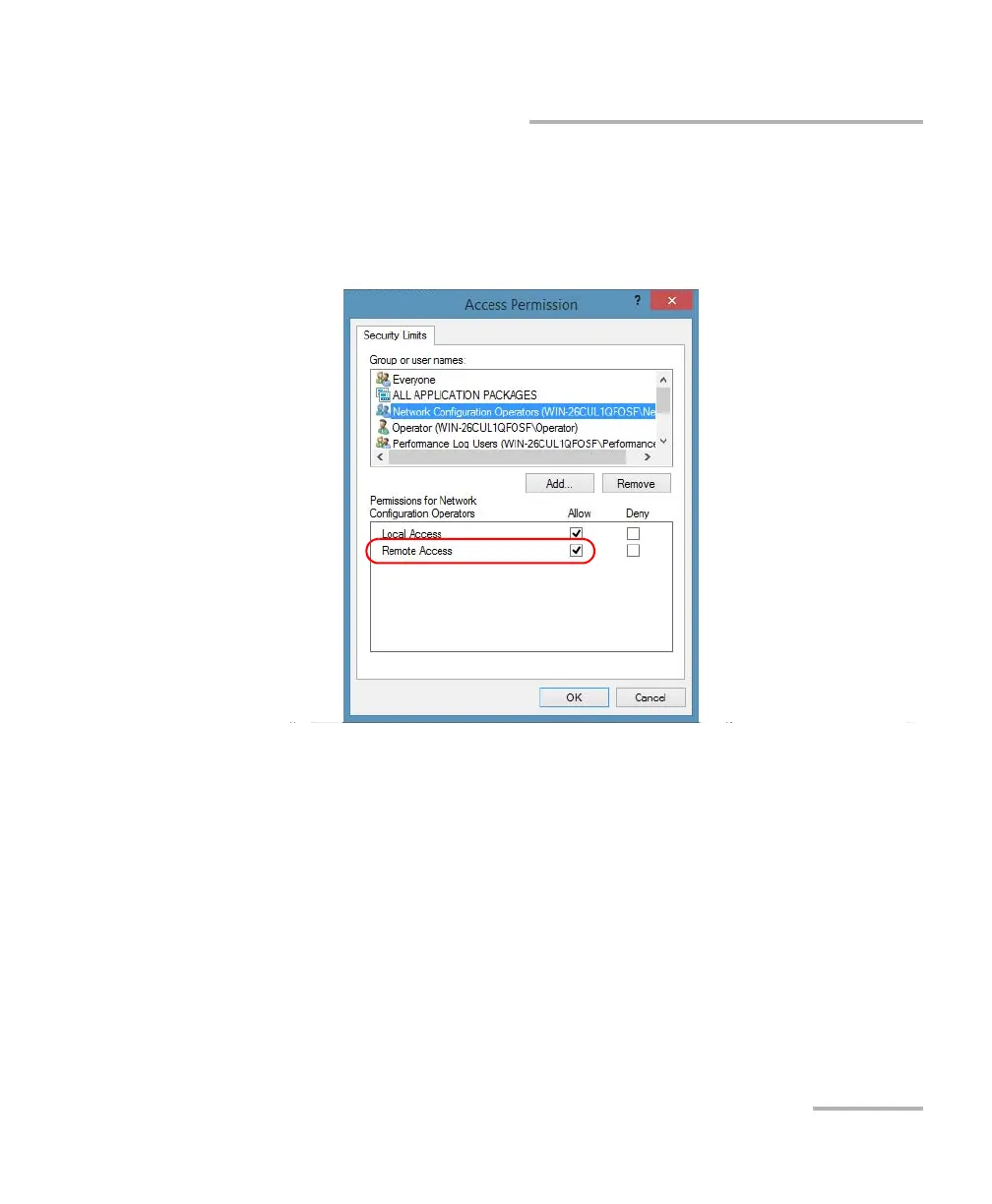

6a. In the Access Permission dialog box, select the name of the new

user.

6b. Under Permissions for (new user), ensure Allow is selected for

Remote Access.

6c. Tap OK.

7. In the My Computer Properties dialog box, tap the COM Security tab.

8. Under Launch and Activation Permissions, tap Edit Limits.
