Maintenance

300 FTB-2/FTB-2 Pro and FTB-4 Pro

Modifying the Low-Battery Thresholds

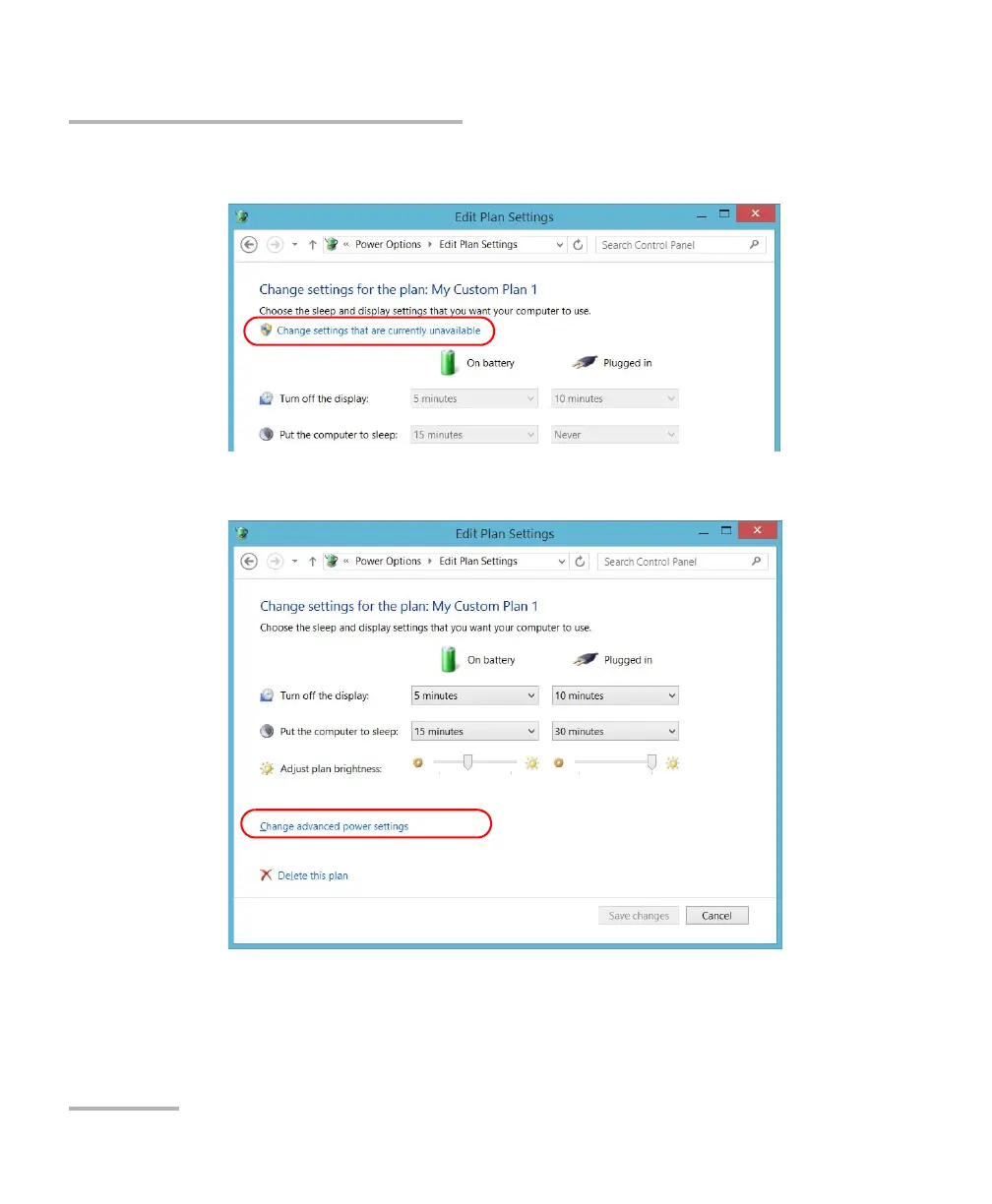

6. If necessary, tap Change settings that are currently unavailable.

7. Tap Change advanced power settings.
