Maintenance
FTB-
2/FT
B-2 P
ro an
d FTB-
4 P
ro
317
Managing Windows Updates
3.

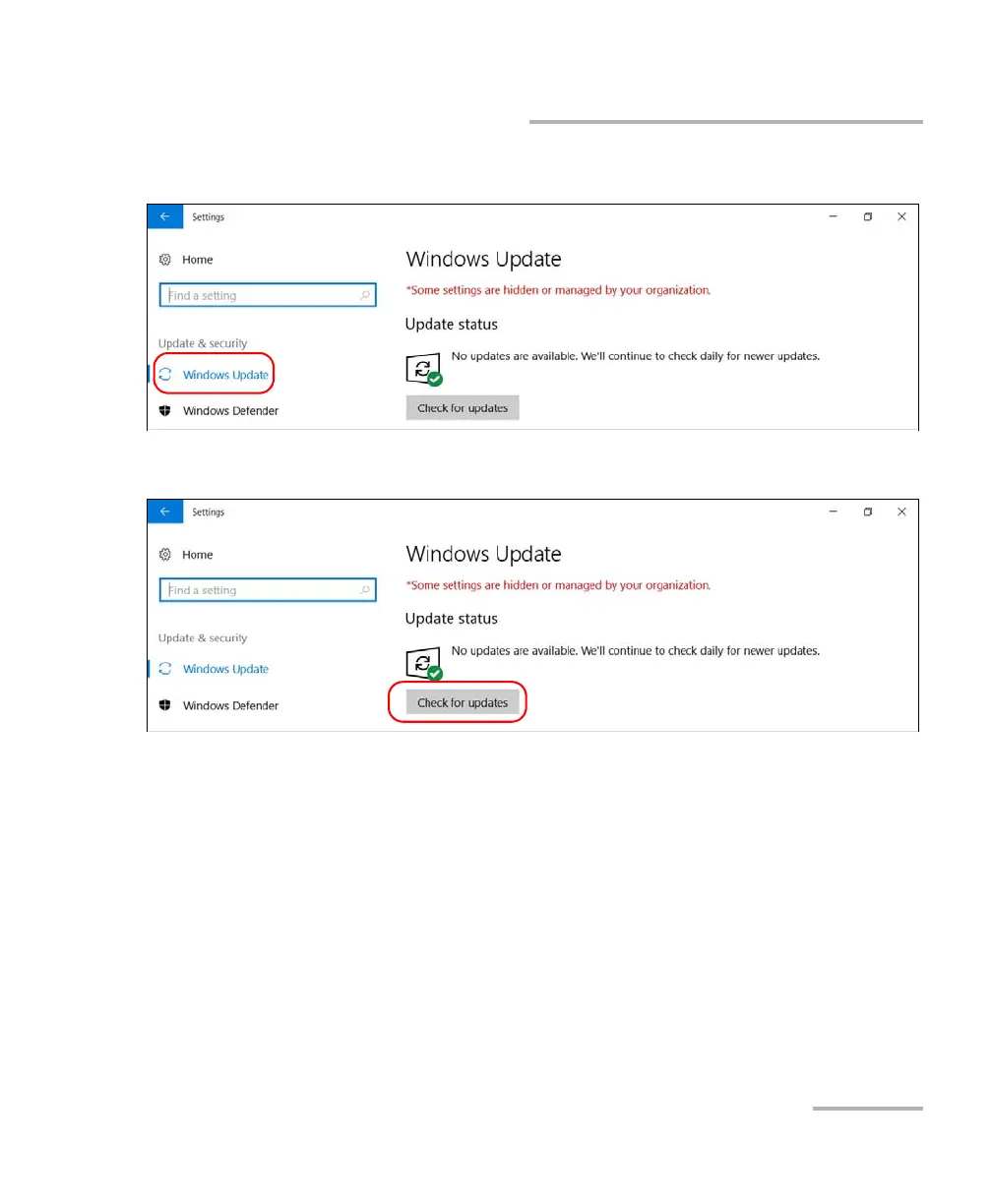

Select
Windows Update
.
4.
Under
Update status
, tap
Check for up
dates
.
5.
F
ollow the on-screen instructions.
