FTB-2/FTB-2 Pro and FTB-4 Pro 345

Restoring Your Unit to Normal Operation

12. Locate the USB key, and then double-tap its identifier to access the

contents.

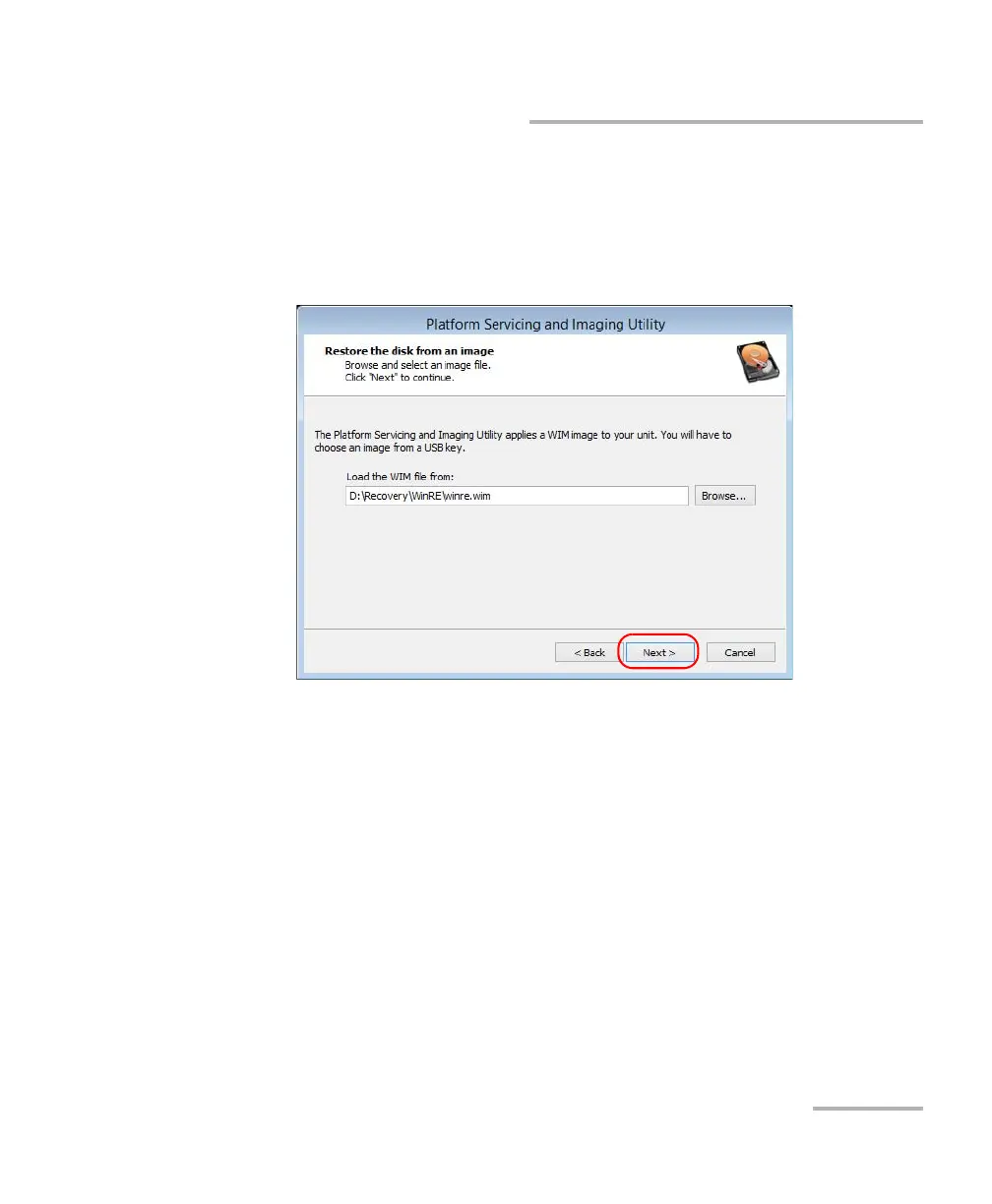

13. Select the desired WIM file.

14. Tap Next.

15. Read the warning, and then tap Start to restore the unit with the

selected image.

16. When the operation is complete and the application prompts you,

disconnect the USB key, and then tap OK.

The unit will restart.
