Getting Started with Your Unit

FTB-2/FTB-2 Pro and FTB-4 Pro 41

Installing or Removing FTB Module Adapters

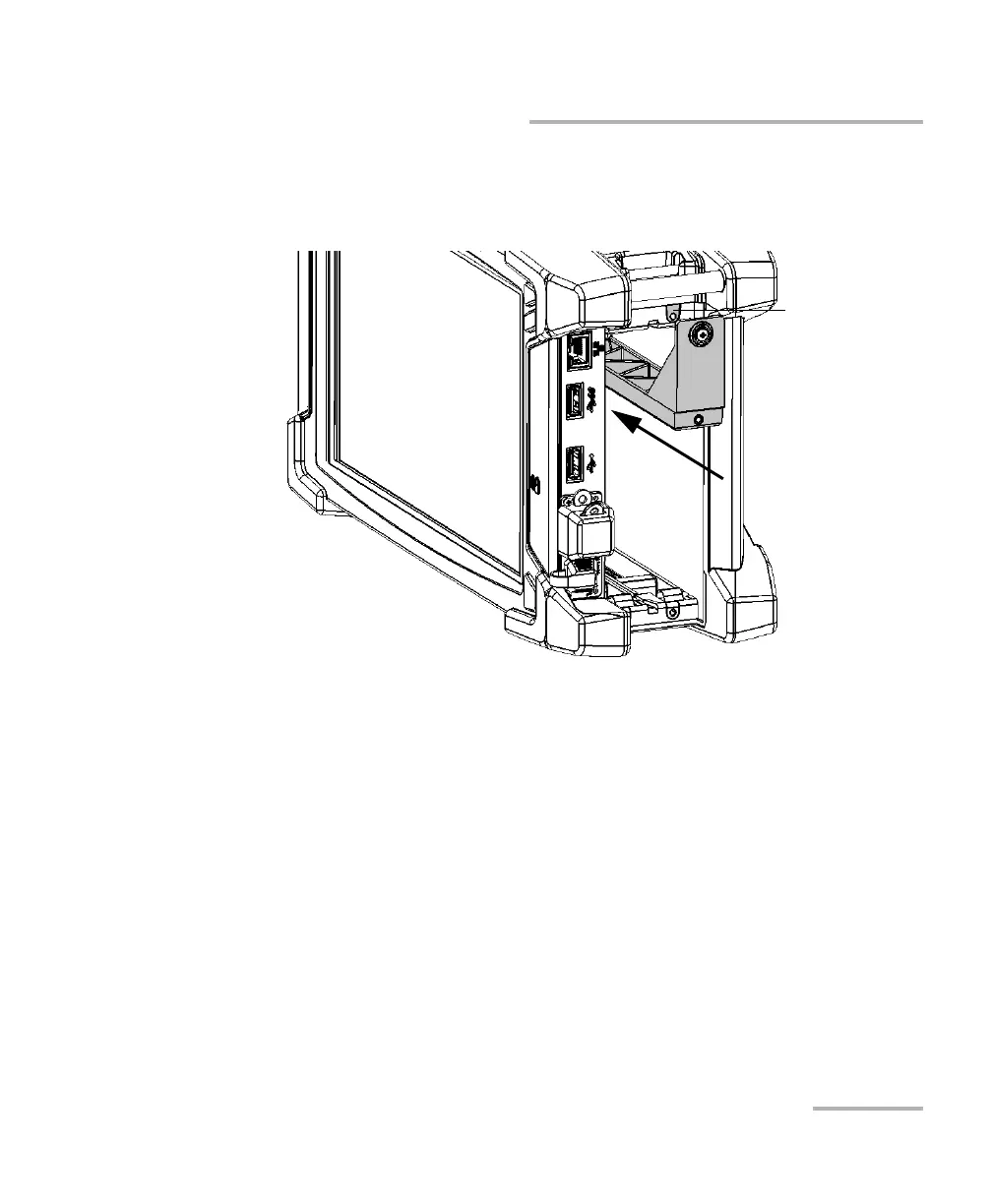

2. Slide the adapter into the unit until it stops, making sure that the

retaining screw is well aligned with the corresponding screw hole on

the unit.

Hole for the

retaining screw
