Getting Started with Your Unit

FTB-2/FTB-2 Pro and FTB-4 Pro 61

Turning Off Your Unit

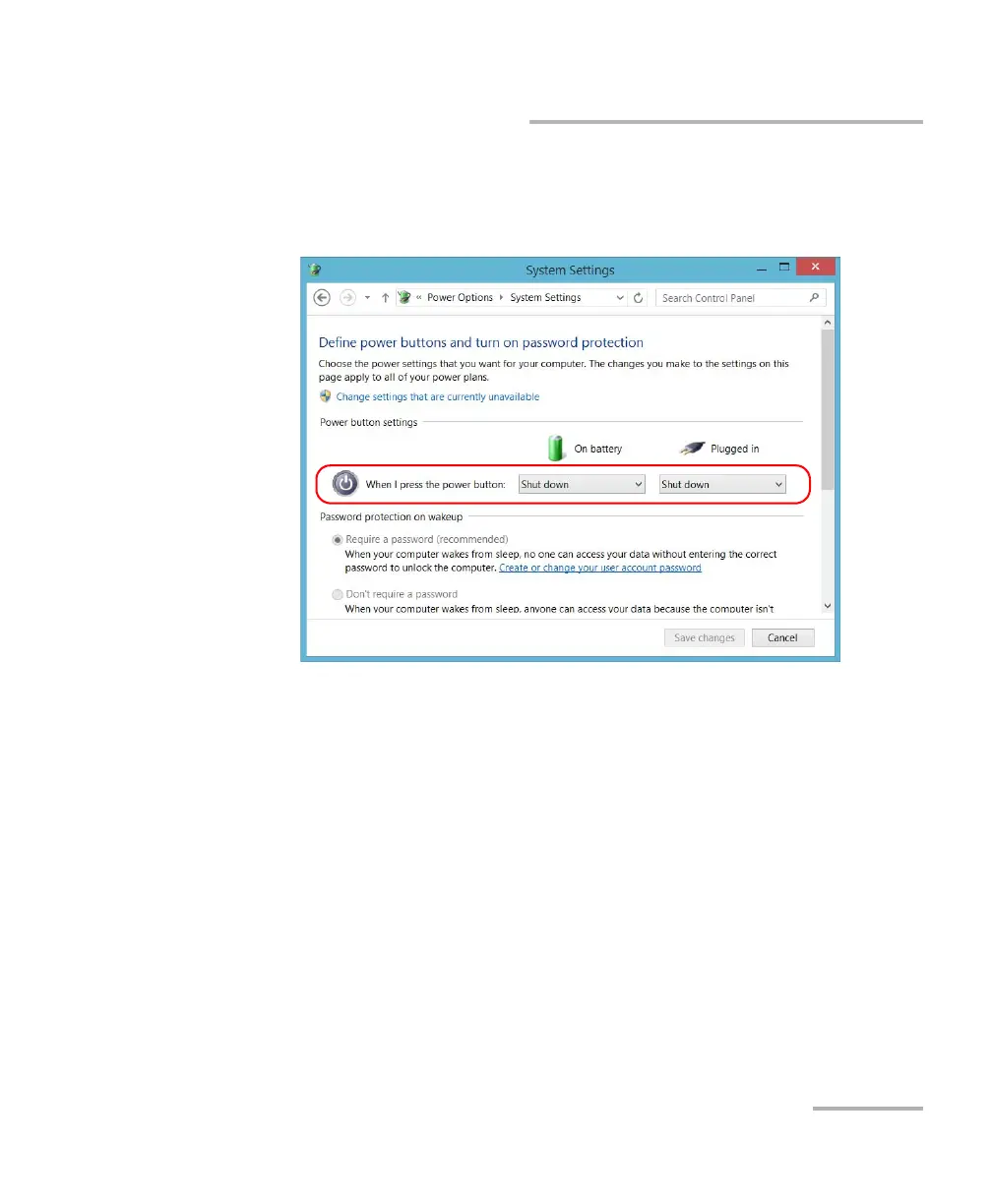

6. From the When I press the power button lists, select the desired

behavior when the unit is powered by batteries, or by AC current (Shut

down option is selected by default in both cases).

7. Tap Save changes to confirm the changes and return to the Power

Options window.
