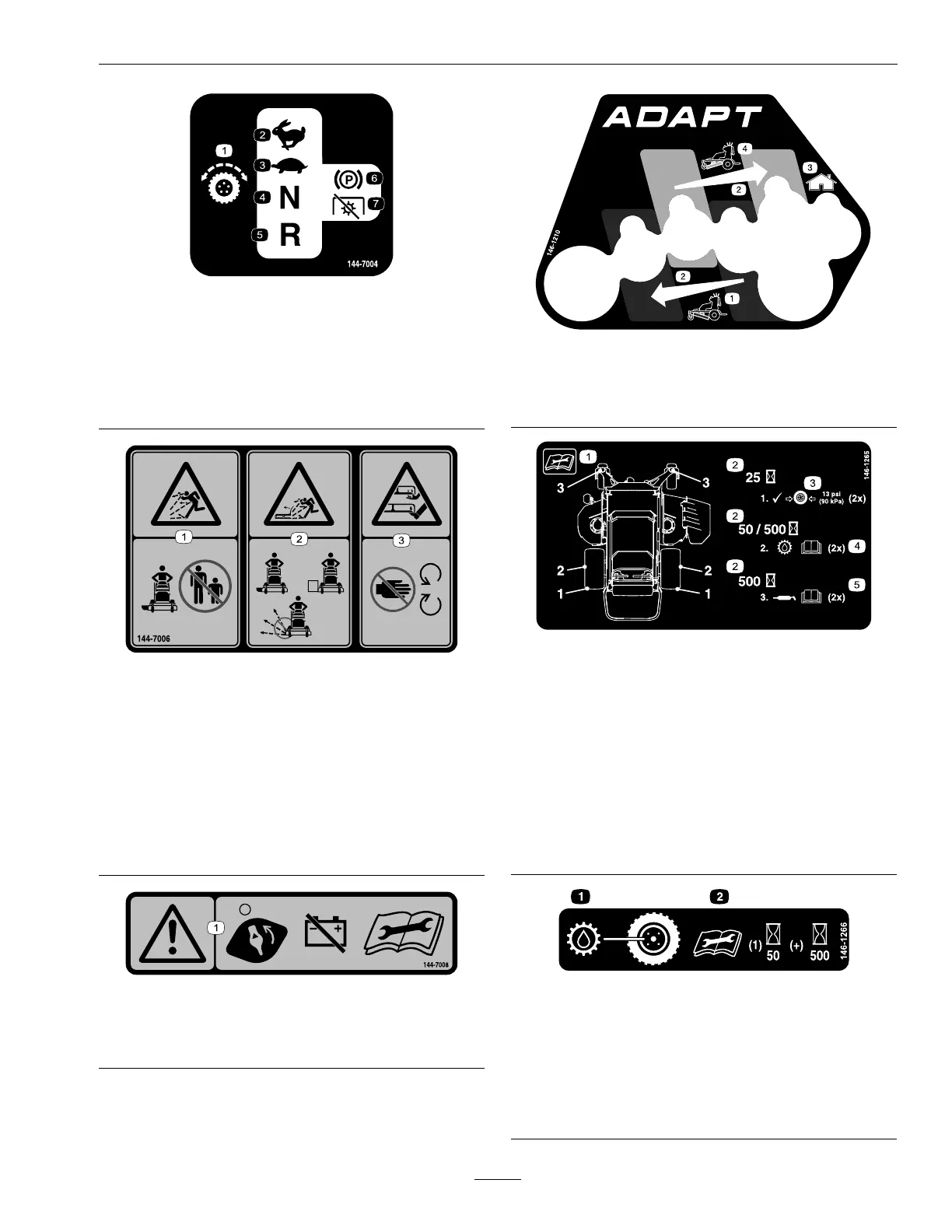

Safety
decal144-7004
144-7004
1. T raction drive 5. Reverse
2. Fast 6. Parking brake
3. Slow 7. Power takeof f
(PT O)—disengaged
4. Neutral
decal144-7006
144-7006
1. Thrown object
hazard—keep
bystanders away .
3. Cutting/dismemberment
hazard of hand or foot,
mower blade—keep
away from moving parts.
2. Thrown object hazard,
mower—do not operate
without the deector ,
discharge cover , or
grass collection system
in place.
decal144-7008
144-7008
1. W arning—turn the battery-disconnect switch to the Of f
position before performing maintenance.
decal146-1210
146-1210
1. Negative rake 3. Home position
2. Increase 4. Positive rake
decal146-1265
146-1265
1. Read the instructions
before servicing or
performing maintenance
4. Service the transmission
oil; refer to the Operator's
manual or further
instructions (2 locations)
2. T ime interval
5. Grease the caster
pivots; refer to the
Operator's Manual for
further instructions (2
locations)
3. Check tire pressure (2
locations)
decal146-1266
146-1266
1. T ransmission uid
2. ead and understand
the Operator ’ s manual
before performing any
maintenance, change
transmission uid after
rst 50 hours then every
500 hours thereafter .
